Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Maximum Torsional Angle :
±15°
Set Test Cycles :
0-9999999 cycles
Power Supply Voltage :
AC 220 V±10% 50 Hz 1 kW
Dimensions :
1675 mm * 820 mm * 1660 mm
MOQ :
1
Description

Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Product Description

Overview

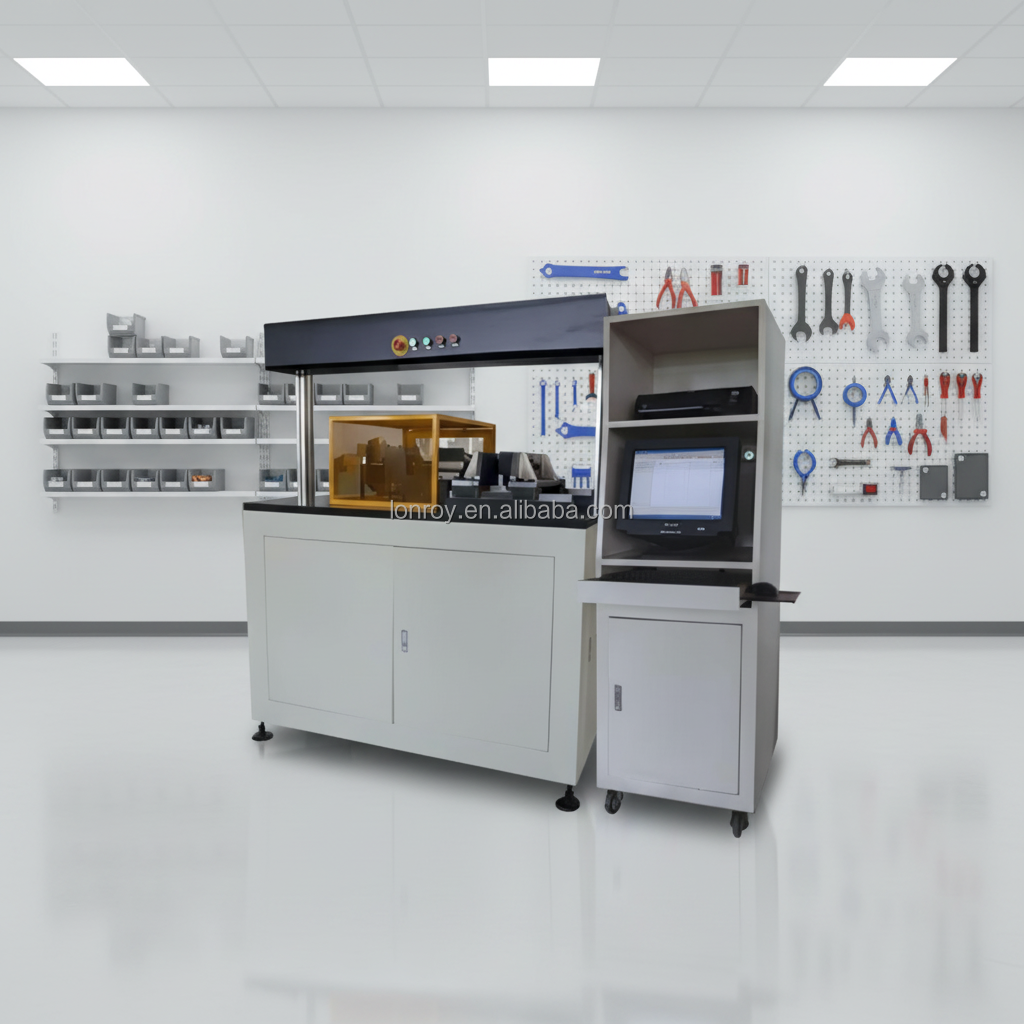

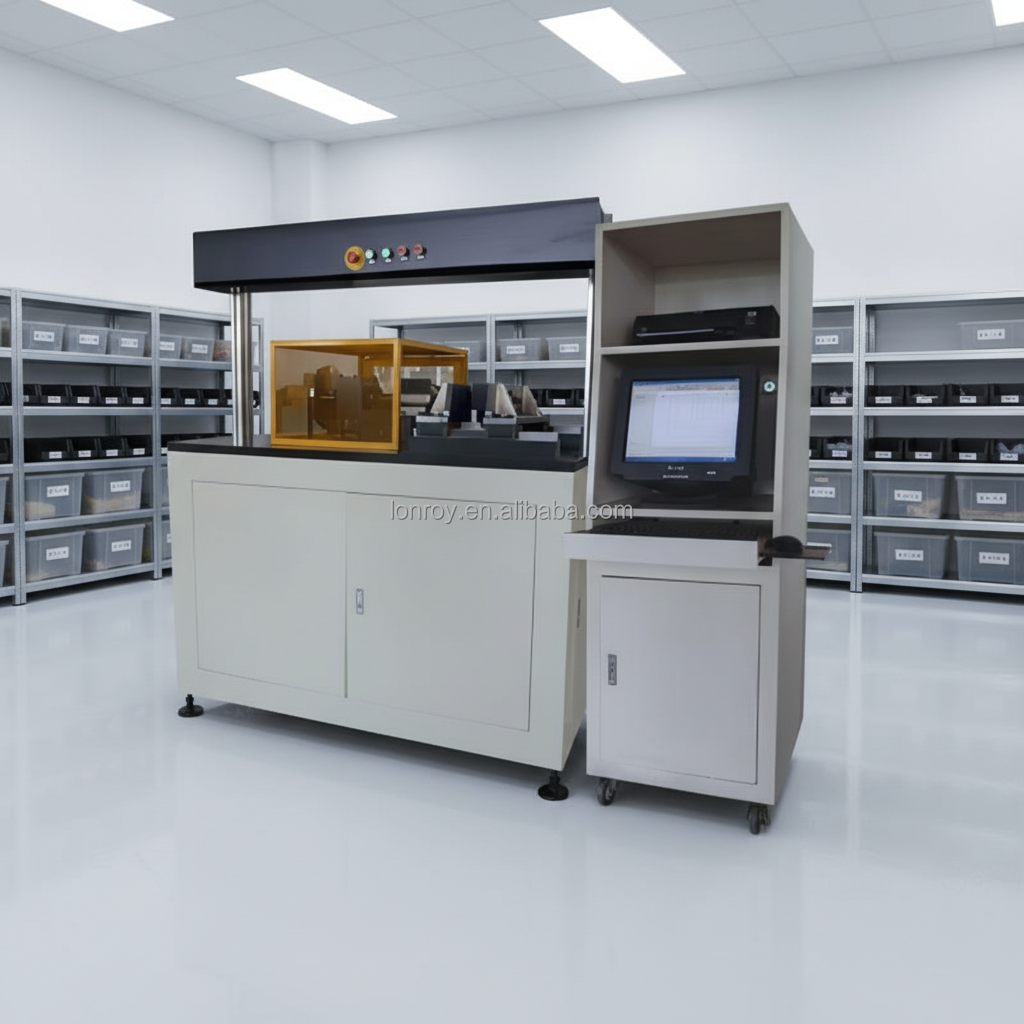

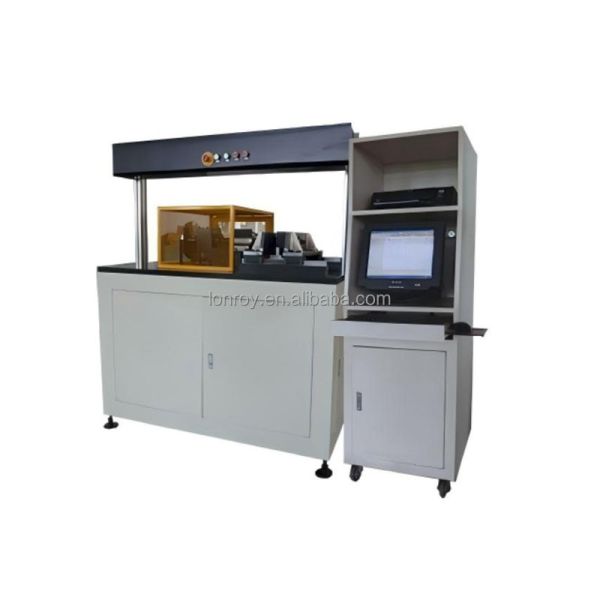

The bushing torsional fatigue testing machine is used to simulate the durability and fatigue testing of automotive elastic bushings under torsional and radial pressure. It is a new type of elastic bushing torsional fatigue testing machine. Controlled by computer software, it can perform both fatigue and static stiffness tests. It is suitable for testing the fatigue durability performance of various automotive bushings in the rubber, automotive, and research industries. It features an aesthetically pleasing design, convenient operation, and high reliability.

Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Technical Specification

Maximum Normal Pressure

5000 N

Maximum Torque

50 N·m

Maximum Torsional Angle

±15°

Torsional Speed

0–90 cycles/minute

Motor Power

0.4 kW (may vary depending on material strength)

Set Test Cycles

0–9999999 cycles

Power Supply Voltage

AC 220 V±10% 50 Hz 1 kW

Dimensions

1675 mm × 820 mm × 1660 mm
