ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Lifting Cylinder Stroke :
300 mm
Working Air Pressure :
0.4 MPa
Overall Dimensions :
1330 mm*940 mm*1820 mm
Power supply :
AC220V±10% 50Hz 5kW
MOQ :
1
Description

ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment

Product Description

Overview

This instrument is primarily used to determine the compression set of vulcanized rubber under low-temperature conditions. It is suitable for use in research institutes, factories, schools, and research units. This machine complies with the requirements of GB/T 7759.2-2014/ISO 815-2:2008 "Vulcanized rubber or thermoplastic rubber — Determination of compression set — Part 2: At low temperatures".

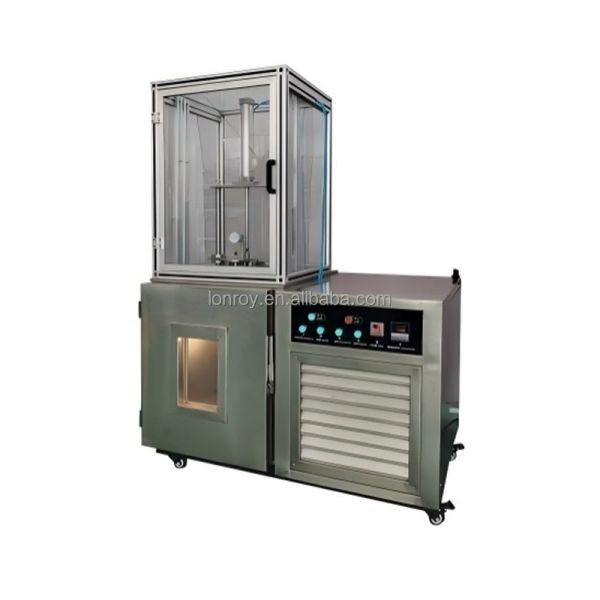

The machine mainly consists of a low-temperature chamber, a pneumatic lifting system, and a testing device. The low-temperature chamber provides refrigeration with high temperature control accuracy, replacing the earlier dry ice cooling method, making it convenient and practical.

OISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment

Technical Specification

Temperature Range

-70℃~Room Temperature

Temperature Uniformity

≤2℃ (under no load)

Lifting Cylinder Stroke

300 mm

Working Chamber Dimensions

450 mm×400 mm×550 mm (L×W×H)

Working Air Pressure

0.4 MPa

Power Supply

AC220V±10% 50Hz 5kW

Overall Dimensions

1330 mm×940 mm×1820 mm

ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing EquipmentISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing EquipmentISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing EquipmentISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment
