Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Power Supply :
200V-3000V, customizable up to 5000V ±5%
Test time setting :
0-99S continuously adjustable
Test time adjustment range :
0-99S continuously adjustable
Breakdown current alarm range :
0-20mA or 0-200mA continuously adjustable
MOQ :
1
Description

Intelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance Analyzer

Product Description

Overview

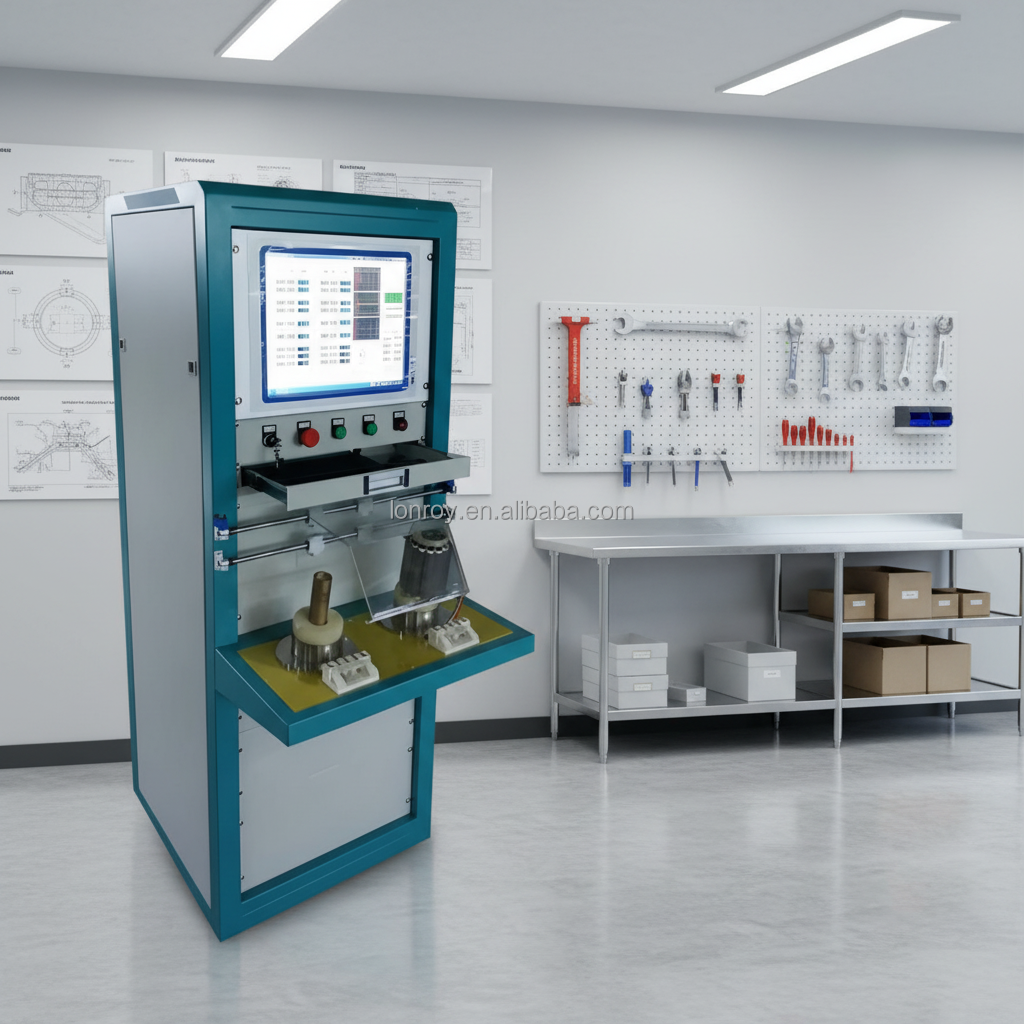

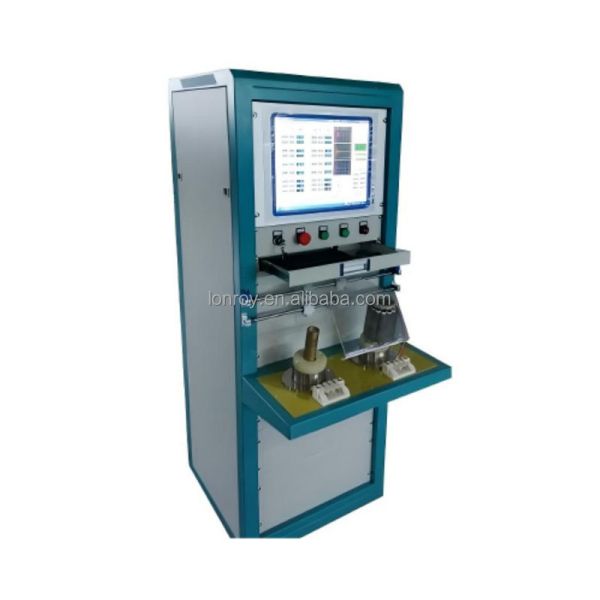

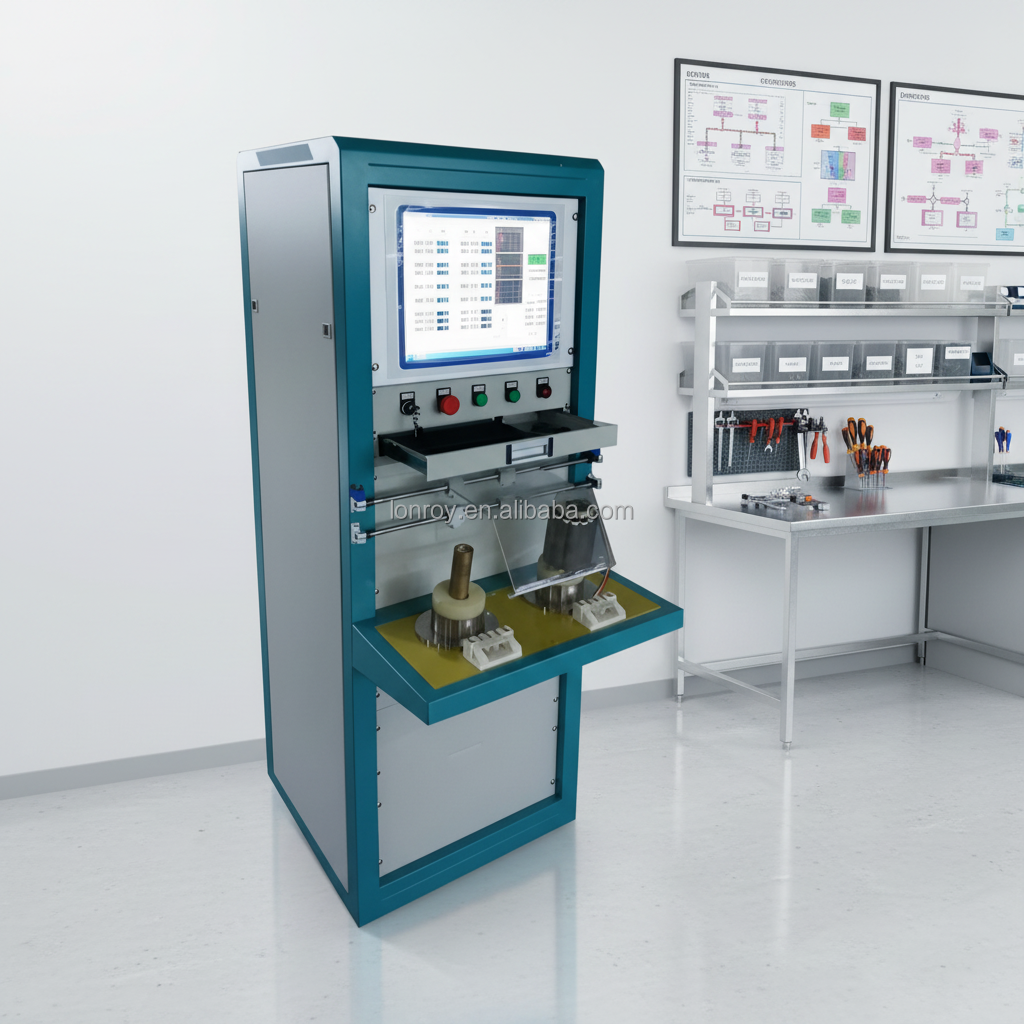

This system is mainly used for testing the safety performance, rotation direction, and other stator parameters of various single-phase and three-phase motor stators. It features quick clamping and completes all parameter tests in one go. The system uses industrial computer centralized control and boasts high stability, compact size, high speed, and high efficiency.

Test Items

Withstand voltage current, insulation resistance, DC low resistance, inter-turn insulation, inductance (optional), rotation direction, etc.

Test Features

1. Uses industrial computers for rapid data acquisition, allowing unlimited storage of test data, categorized by date, model, etc., for easy retrieval. It has a USB storage interface for convenient data copying and a wired interface with a printer for quick data printing. It is equipped with our company's exclusively developed dedicated software, featuring a reasonable interface layout and simple operation.

2. Features real-time monitoring of ambient temperature, and automatically converts resistance measurement results to standard environmental conditions, ensuring consistency and accuracy of measurements.

3. The voltage has an automatic correction function, unaffected by external power grid or voltage regulator fluctuations, ensuring the accuracy of test data.

4. The testing system has an automatic numbering function, and can also accept manual input or barcode scanner input.

Intelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance Analyzer

Technical Specification

Test items

Withstand voltage test, insulation test, inter-turn test, DC resistance, inductance test (optional), rotation direction, etc.

Test object

For small and medium-sized motor stators, single/three-phase motor stators

Test station

Single station, double station, five stations

Pressure test

Output voltage range/accuracy

Voltage: AC 100-3000V, customizable up to 5000V ± (3% × set value + 5 digits)

Breakdown current range/accuracy

Current: 0-2mA-20mA, customizable up to 200mA ± (3% × set value + 5 digits)

Breakdown current alarm range

0-20mA or 0-200mA continuously adjustable

Test time adjustment range

0-99S continuously adjustable

Insulation resistance

Output voltage setting range/accuracy

Voltage: DC500V/1000V ± (3% × set value + 5 digits)

Insulation resistance measurement range/accuracy

Resistance: 0-500MΩ ± (3% × set value + 6 digits)

Insulation resistance alarm setting range

Upper and lower limits: 0-500MΩ, freely adjustable

Test time range

0-99S continuous adjustment

Inter-turn insulation

Output voltage setting range/accuracy

Pulse voltage: 200V-3000V, customizable up to 5000V ±5%

Test time setting

Continuous adjustment from 0-99 seconds

DC resistance

Resistance measurement range/accuracy

0.01Ω to 2000Ω ±0.5% with adjustable temperature compensation

Test time setting

0-99S continuously adjustable

Direction

Direction judgment

Clockwise, counterclockwise

Intelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance AnalyzerIntelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance AnalyzerIntelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance AnalyzerIntelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance Analyzer
