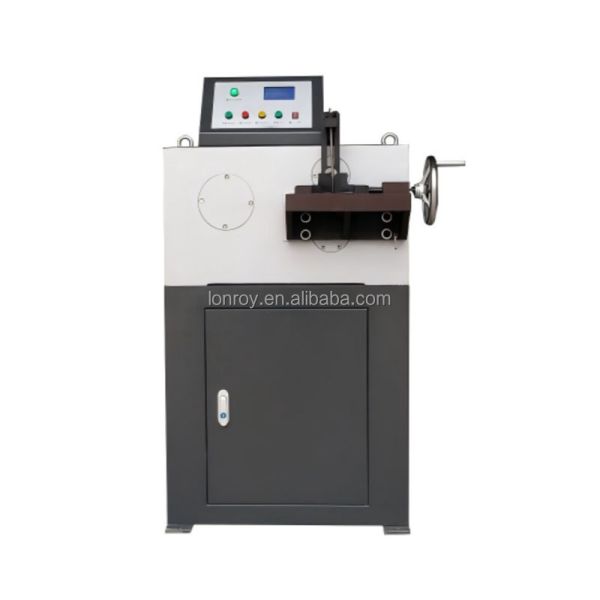

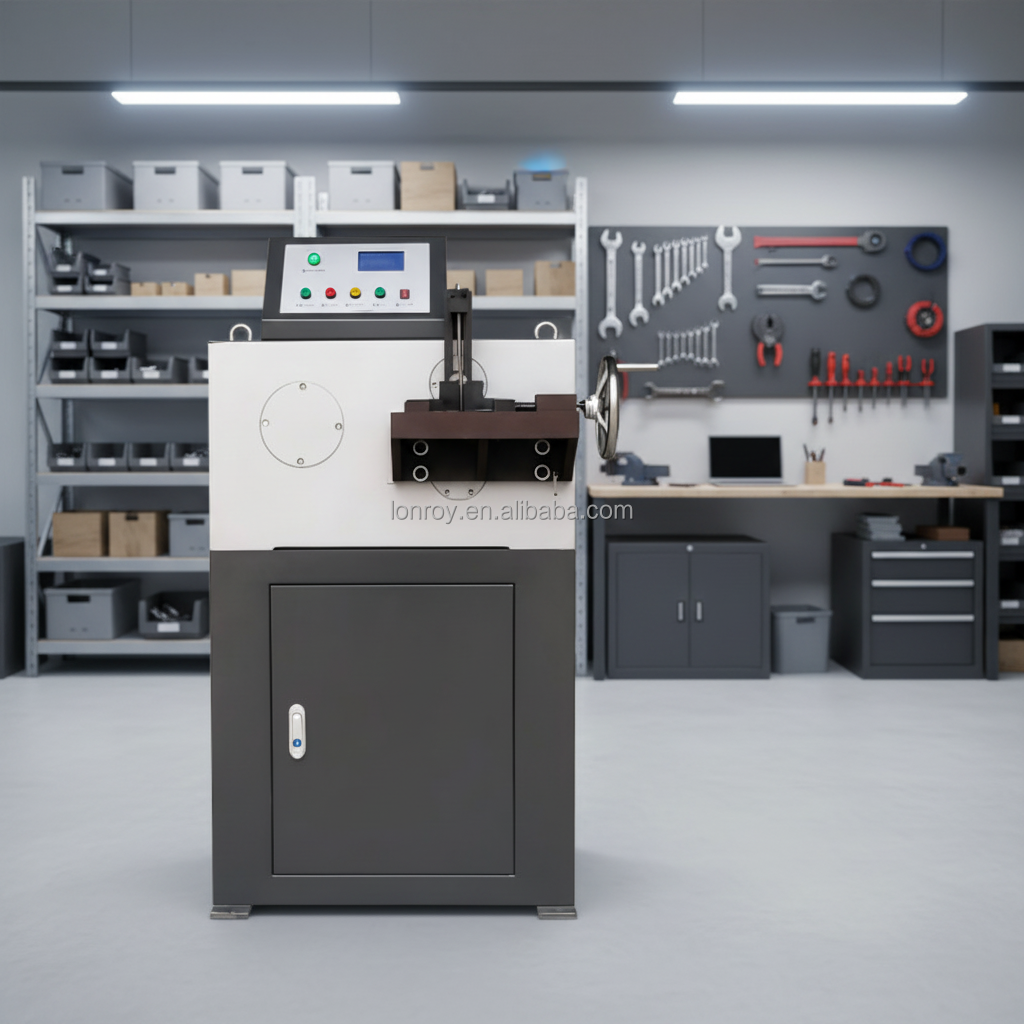

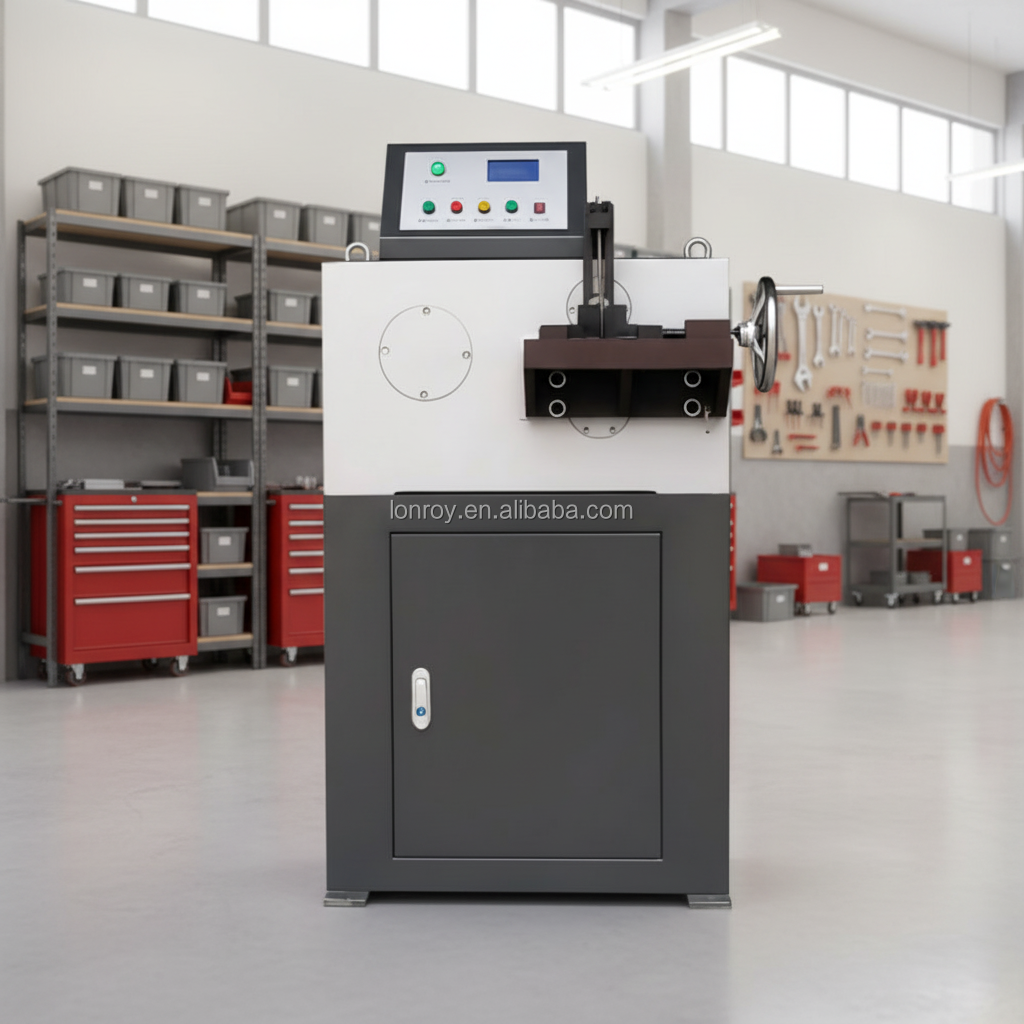

Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Power Supply Voltage :
AC 380±10%, 50Hz
Testing Machine Operating Noise :
<70 dB
Machine Weight :
200 kg
Motor Power :
1.5/2.2 kW
MOQ :
1
Description

Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester

Product Description

Product Description

This machine is primarily used for repeated bending tests of metal wires to examine their performance under repeated plastic deformation and to identify any resulting defects. Equipped with special fixtures, it can also be used for bending tests of other specifications of sheet metal and rectangular materials.

Testing Principle

A sample of a specific diameter is passed through a guide sleeve and clamped between two jaws of a specified size. Upon pressing the button, the sample is bent 90° to the left and right repeatedly. The machine automatically stops when the sample breaks, and the number of bending cycles is recorded.

Automatical Metal Wire Repeated Bending Test Machine Metal Wire Flex Test Device Metal Wire Repeated Bend Performance Tester

Technical Specification

Product Model

LR-E119-10

LR-E119--15

LR-E119-20

LR-E119-3B

Applicable Materials

Metal Wire

Copper contact wires, tram wires

Thin plates, thin strips

Maximum Bending Diameter/Thickness (mm)

Φ1–Φ10

Φ3-Φ15

Φ10-Φ20

0.3~3

Sample Length (mm)

200-300

150

Bending Angle

±90°

Bending Speed

≤60 cycles/min

Motor Power

1.5/2.2 kW

3kW

5.5kW

1.5kW

Machine Dimensions (mm)

590×470×1130

700×470×1150

900×600×1200

590×470×1130

Machine Weight

200 kg

230kg

300kg

200kg

Testing Machine Operating Noise

<70 dB

Power Supply Voltage

AC 380±10%, 50Hz
