Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Pressure Source Range :
0.1-0.69 MPa
Pressure Control Method :
Pneumatic drive or hydraulic drive
Adjustable Pressure Test Medium :
Air, Nitrogen
Test Pressure :
0-30 MPa
MOQ :
1
Description

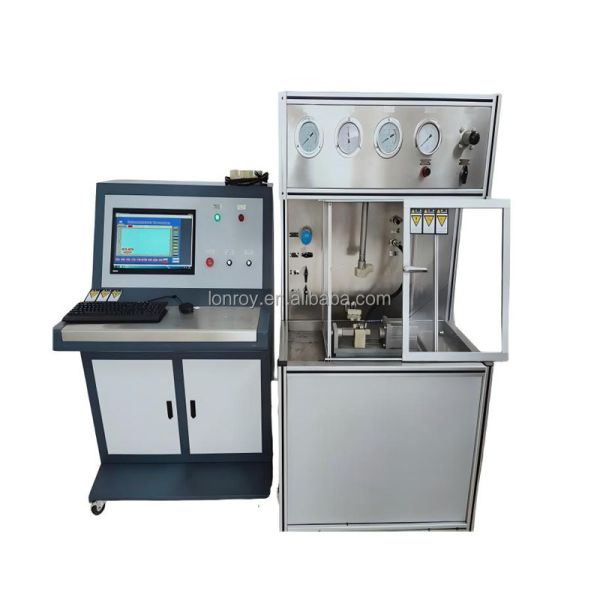

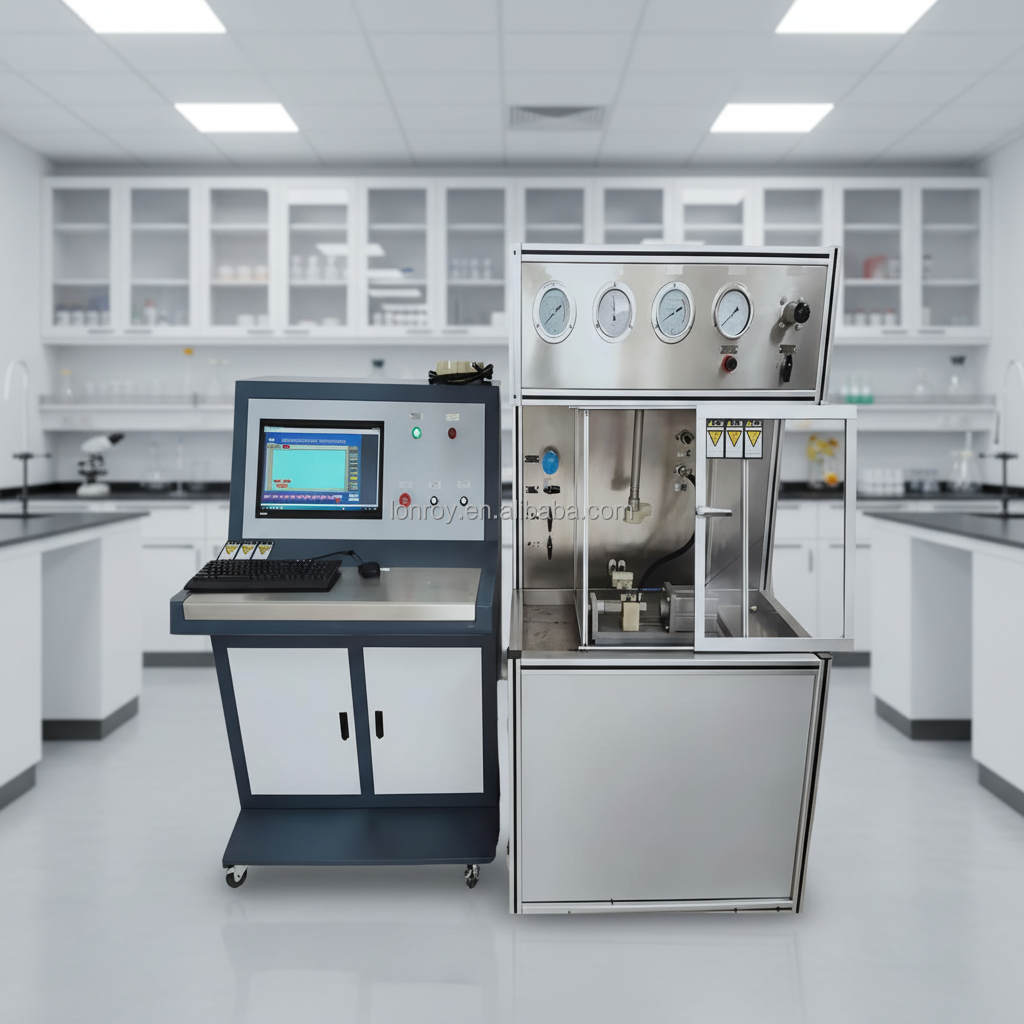

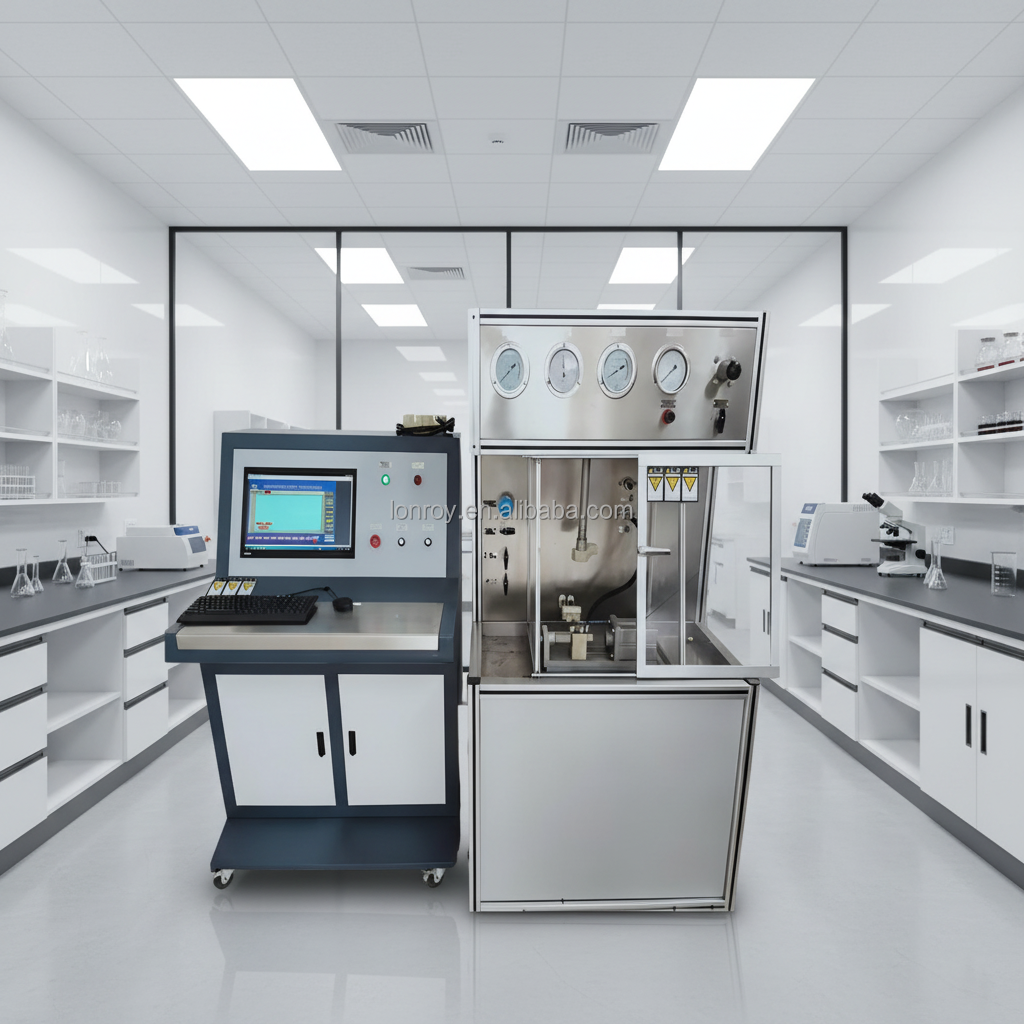

ISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test Bench

Product Description

I. Product Positioning

The high-pressure hose hydrostatic testing machine has a test pressure range of 0-30 MPa and uses air or nitrogen as the test medium.The output pressure can be adjusted by setting the drive air pressure regulator. The pump automatically stops when the set pressure is reached and resumes operation when the pressure drops.

II. Features

1. Equipped with a gas-driven automatic booster pump, easily achieving arbitrarily adjustable and controllable output pressure.

2. Advanced technology and reasonable structural design. Features include small size, light weight, and an aesthetically pleasing appearance.

3. All pressure-bearing parts use standard parts from internationally renowned brands, with no welded connections, making disassembly easy, ensuring high safety factor, long service life, and easy maintenance.

4. Driven by compressed air, with a completely explosion-proof design.

5. Continuous start and stop without limitations or adverse effects;

6. The pneumatic piston ring and other pneumatic components do not require lubrication during operation, saving operating costs and preventing oil and gas pollution;

7. Easily integrated into automatic control systems;

8. At any predetermined pressure, it consumes no energy and generates no heat, eliminating the risk of sparks and flames;

9. Linear pressure output, easy for manual control;

III. Test Standards

EN ISO1402-1996/NF T47202-1996 Rubber and Plastic Hose Assemblies Hydrostatic Test Standard

GB/T5563 Hydraulic Hose Assembly Test Standard

GB/T1987

ISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test Bench

Technical Specification

Test Pressure

0-30 MPa

Adjustable Pressure Test Medium

Air, Nitrogen

Pressure Control Accuracy

2% of the upper limit of the test pressure value, -1% of the lower limit

Pressure Source Range

0.1-0.69 MPa

Control Method

Computer control or manual control

Test Curve

Control software automatically displays the curve, real-time display, and can be zoomed in and out

Pressure Control Method

Pneumatic drive or hydraulic drive

ISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test BenchISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test BenchISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test BenchISO 1402 Automatical High-Pressure Hose Hydrostatic Testing Machine Rubber Plastic Hose Assemblies Hydrostatic Test Bench
