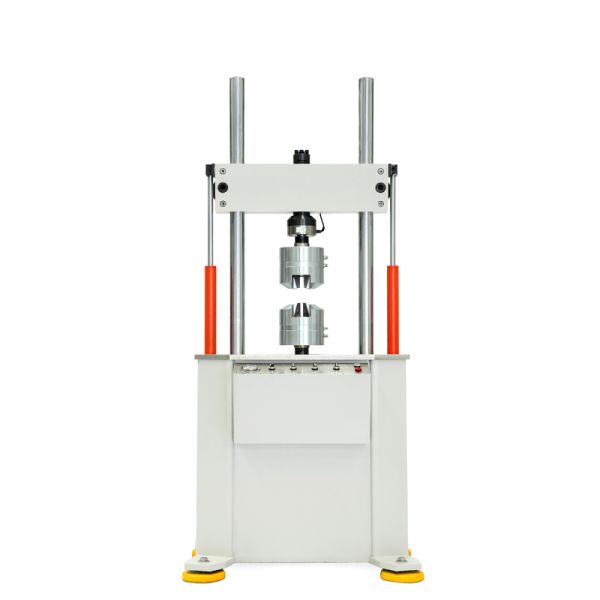

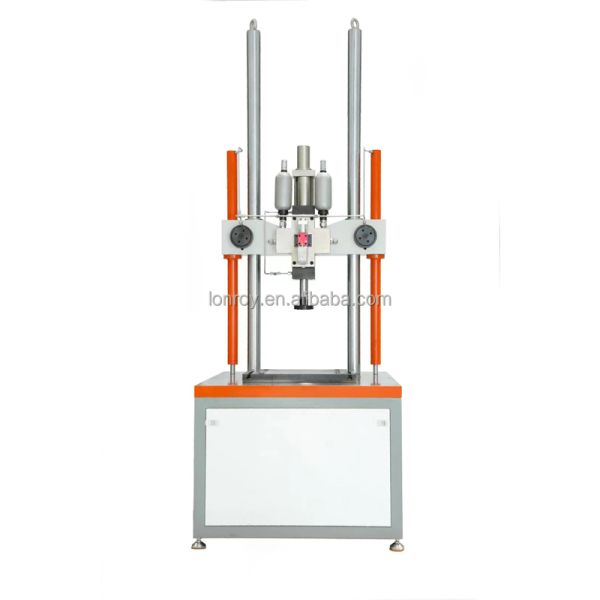

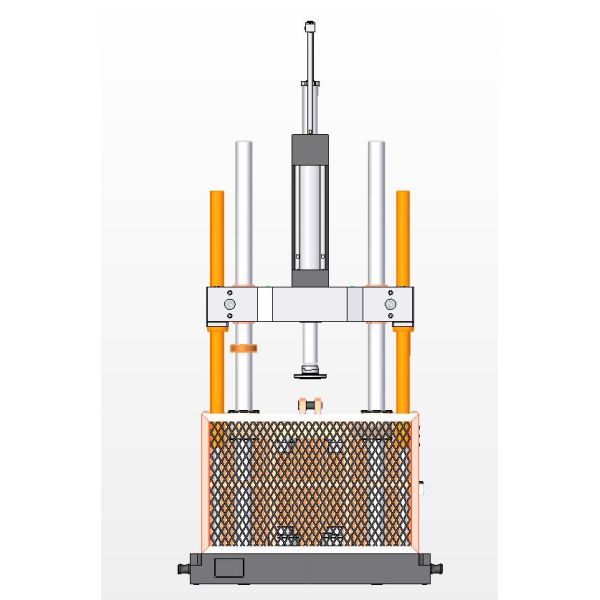

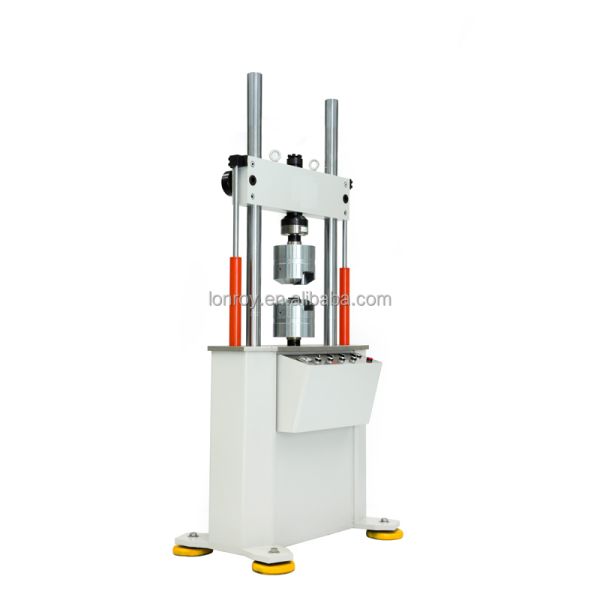

Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1 Year
Model Number :
LR-PWS-10
Product name :
universal testing machine
MOQ :
1
Description

Electro-hydraulic servo dynamic and static universal testing machine/tester

Summarize

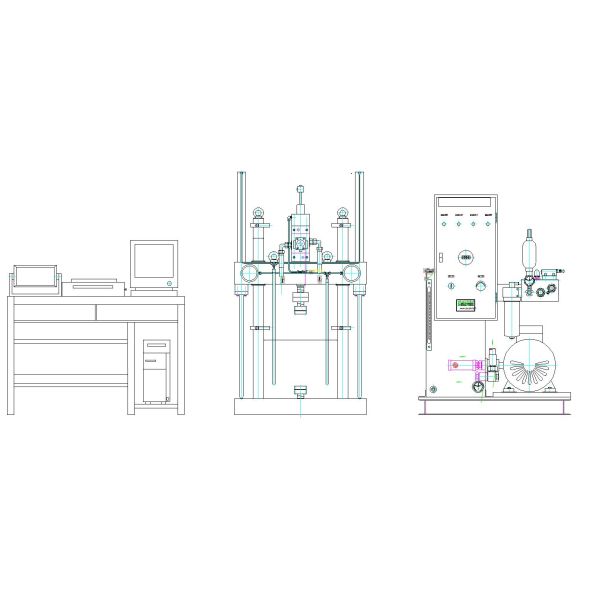

Electro-hydraulic servo dynamic and static universal testing machine is composed of main machine, constant pressure servo pump station, full digital servo controller, control software, Advantech industrial control computer, accessories and pipeline system.

Electro-hydraulic servo dynamic and static universal testing machine/tester

According to the criteria:

ØGB/T3075 "Metal Material fatigue test axial force control method"

According to the need, the necessary auxiliary equipment can be configured for other types of metal, non-metal materials, structural parts, components, assembly into the mobile static fatigue life test.

Universal testing machine

Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine

Electro-hydraulic servo dynamic and static universal testing machine/tester

Maximum dynamic test force ±10kN
the maximum static test force 10kN
test force measurement range 2%-100%FS;
test force value accuracy ≤±1% (2%-100%FS);
the fluctuation of the dynamic indication value of the test force ±0.5%FS
sine wave distortion ≤1%
the maximum displacement of the actuator ±75mm
displacement measurement accuracy ≤±0.1FS;
the main test waveform: sine wave, square wave, triangle wave.
test frequency range 0.01-30Hz; Amplitude and frequency characteristics: meet ±1mm&30Hz;
test accessories special test accessories 1 set
control system: full digital servo control, closed loop control loop, smooth switching during the test
effective test space height 500mm
base size 890mmx540mmx110mm (length x width x height);
column clear distance 500mm
host stiffness 1.7×108N/m
constant pressure servo pump station 21Mpa,280L/min,110kW,AC three-phase, 50Hz,380V.
the main machine dimensions 890mmx540mmx1800mm (length x width x height)
, the main weight about 1500kg
the system protection function is perfect, with overload, over setting, over range, over test parameter setting, pump station over pressure, over temperature, oil blocking and other protection functions

Universal testing machine

Description of the main technical unit of the device
1. Host computer
1.1 Host Framework

Electro-hydraulic Servo Dynamic and Static Universal Testing Machine/tester Fatigue Testing Machine

Maximum dynamic test force

±10kN

the maximum static test force

10kN

test force measurement range

2%-100%FS;

test force value accuracy

≤±1% (2%-100%FS);

the fluctuation of the dynamic indication value of the test force

±0.5%FS

sine wave distortion

≤1%

the maximum displacement of the actuator

±75mm

displacement measurement accuracy

≤±0.1FS;

the main test waveform: sine wave, square wave, triangle wave.

test frequency range

0.01-30Hz; Amplitude and frequency characteristics: meet ±1mm&30Hz;

test accessories

special test accessories 1 set

control system: full digital servo control, closed loop control loop, smooth switching during the test

effective test space

height 500mm

base size

890mmx540mmx110mm (length x width x height);

column clear distance

500mm

host stiffness

1.7×108N/m

constant pressure servo pump station

21Mpa,280L/min,110kW,AC three-phase, 50Hz,380V.

the main machine dimensions

890mmx540mmx1800mm (length x width x height)

, the main weight

about 1500kg

the system protection function is perfect, with overload, over setting, over range, over test parameter setting, pump station over pressure, over temperature, oil blocking and other protection functions
