Specifications
Maximum Compressive Space :
----
Maximum Tensile Space :
----
Type :
Universal Tensile Testing Machine
Model Number :
LR-C002
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Crossbeam Displacement Accuracy :
---
Power Supply :
220 V~240 V
Weight :
About 100 Kg
Size :
500*400*1300mm
Accuracy of displacement measurement :
±1%
MOQ :
1
Description

Digital Universal Tension/Bending/Compression Testing Machine, Universal Material Testing Machine,Hydraulic tensile tester

Digital Universal Tension/Bending/Compression Testing Machine Tensile Tester

Main functions:

This machine is suitable for various textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries to do stretching, compression, bending, shearing, stripping (90 degrees and 180 degrees), tearing and other kinds of tests to determine the quality of products.

This machine is a simple tensile testing machine with simple structure and convenient operation.It adopts touch screen control system to control the rotation of frequency conversion motor, and then drives the t-type screw to drive the load sensor to rise and fall after the deceleration of the variable speed mechanical mechanism, so as to complete the tensile or compression test of samples.The force value is output by the sensor, the feedback display, the test displacement real-time display.Can achieve the value of fixed force, positioning and other tests.

Can store the results of 10 test reference points, automatically calculate its average value, automatically grab the maximum value, the value of force at the time of fracture.

The thermal printer can automatically output test results.

Digital Universal Tension/Bending/Compression Testing Machine, Universal Material Testing Machine,Hydraulic tensile tester

Technical Specification

Capacity

5,10,20,50,100,200,500kg Optional

Test accuracy

±1%

Display mode

Touched screen

Unit change

Kg,lb,N

Data sampling frequency

200times/sec

Resolution

Max load 1/±25000,no internal or external grading, and the overall resolution remains the same

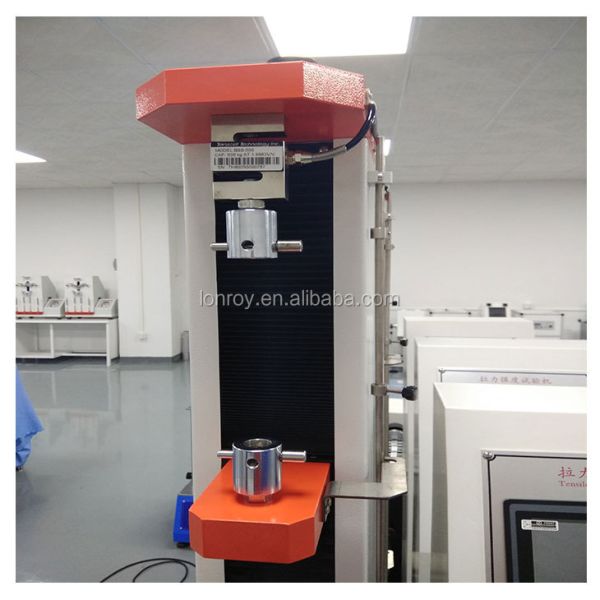

Load cell

Basic configuration: tension and pressure sensors (maximum load)

Effective Test width

150mm

Effective test height

800mm

Test speed range

50-300mm/min stepless speed regulation and 5-speed regulation (customizable)

Accuracy of displacement measurement

±1%

Breakpoint ratio setting

0~99%,Users can set the appropriate break down time according to different materials

Safety device

Up and down travel limit device

Overload protection

automatic shutdown over 10% of the maximum load, and machine overload, emergency shutdown device, up and down travel limit device.

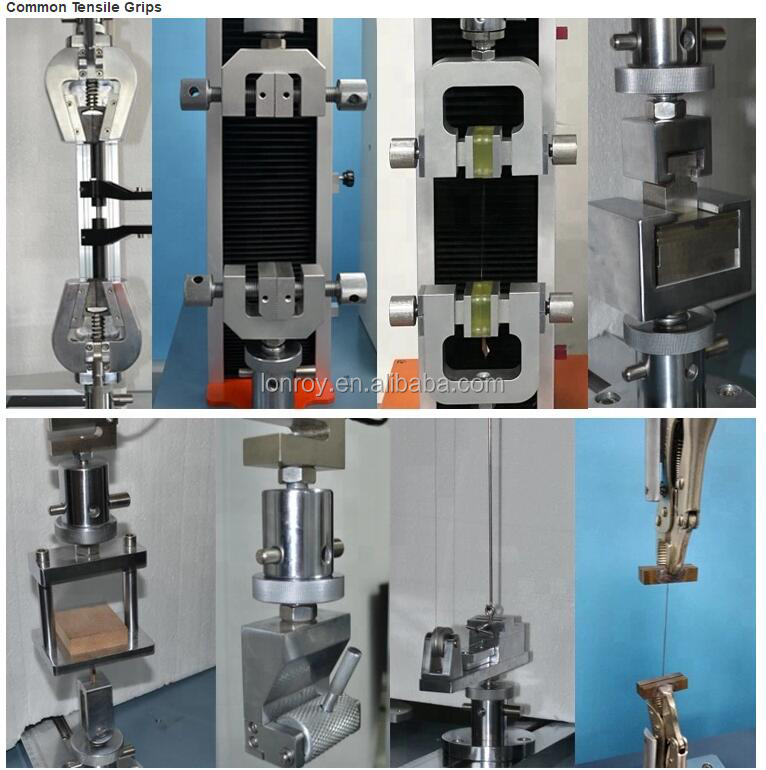

Fixture

Tensile/compression each 1 set

Machine size

500×400×1300mm

Machine weight

About 70 Kg
