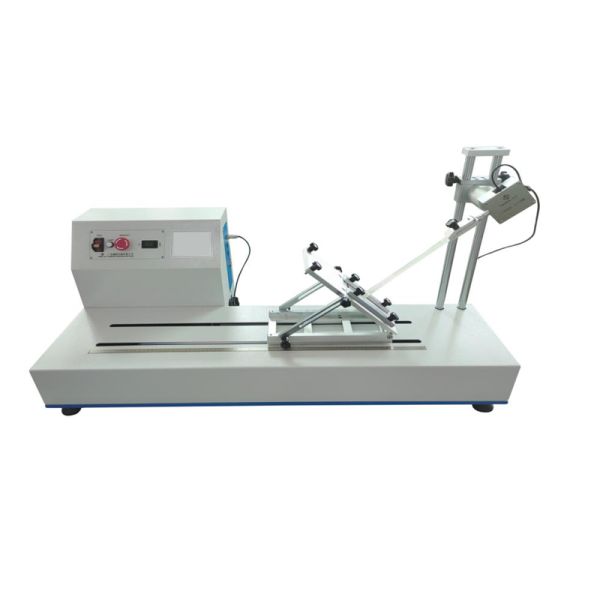

EN 1002 BS 1610 High Speed Stripping Strength Testing Machine ASTM D3330 ISO 7500 Stripping Strength Measuring Equipment

Scope of application:

Widely used in polymer materials, die-cutting materials, adhesives, adhesive tape, film and other products and semi-finished products tensile test, 90°~180° peel strength test, tape shear test and other physical properties test, using a special structure, can be set in a very short time to the speed of the test speed of up to 30000mm/min, The high acquisition rate of 1200HZ makes the test more accurate.

Meet the standard:

ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN10002-1, EN1002-2, BS1610, GB/ T228, GB/T2792, ASTM D3330, GB/T15598-1995, HGT2-163, GT/T7753-1987, GT/T7754-1987, GB/T7124-86, GB/ T7124-2008, etc

EN 1002 BS 1610 High Speed Stripping Strength Testing Machine ASTM D3330 ISO 7500 Stripping Strength Measuring Equipment

Product features:

1, the test function is powerful, with different fixtures can carry out a variety of test requirements to meet the needs of users.

2, the software function is more powerful, can find the test results, the test curve can be arbitrarily displayed in the interval and automatically marked, can be upgraded at any time to achieve positioning, fixed force, fixed time, repeated fatigue testing.

3, the machine design is beautiful, generous, easy to operate, software scalability and high accuracy.

4, servo motor drive, high precision ball screw drive, low failure rate and simple maintenance.

Machine structure:

Selection of 45# steel, sandblasting and electrostatic spraying treatment, the surface does not remove paint;

Dust cover using mold processing, extrusion molding process, surface sandblasting anode positive silver, beautiful and durable;

Servo motor control system, with precision synchronous wheel and precision ball screw drive;

The force measuring system is the latest AD converter with high speed, high resolution and high precision. Reach ±500000 subdivision code, to reach the international advanced level.

Force measurement range: 0.5 -- 100% FS

Measurement accuracy :0.5 level

Resolution: 1/500,000

With precision tension and pressure sensor, it can meet the high stability and high precision force value acquisition.

The displacement measuring system unit adopts the latest AD converter with high speed, high resolution and high precision. Reach ±500000 subdivision code, to reach the international advanced level.

Deformation measurement range: 1 -- 100% FS

Measurement accuracy :0.5 level

Resolution :1/500,000

The servo motor is equipped with high line number photoelectric encoder to output displacement signal, which has the characteristics of fast transmission speed and high precision.
