Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±2%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
----
Protection Class :
IP65
Voltage :
220 V
warranty :
1 Year
Machine size :
1100*700*2000mm
Power :
220V/50Hz
Machine weight :
About 200 Kg
MOQ :
1
Description

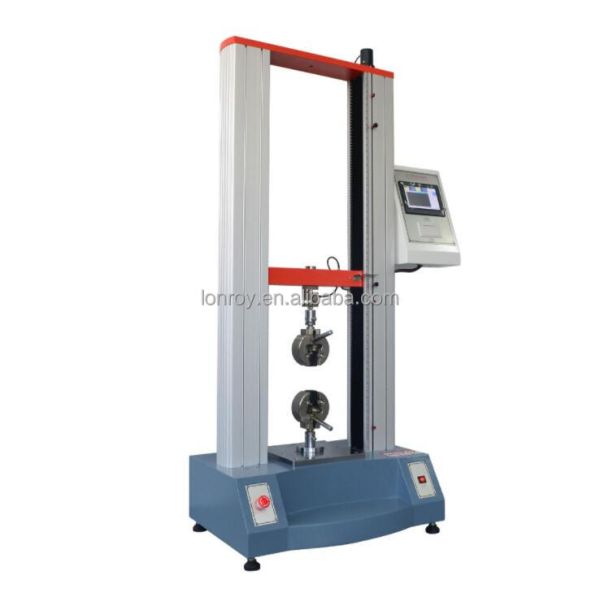

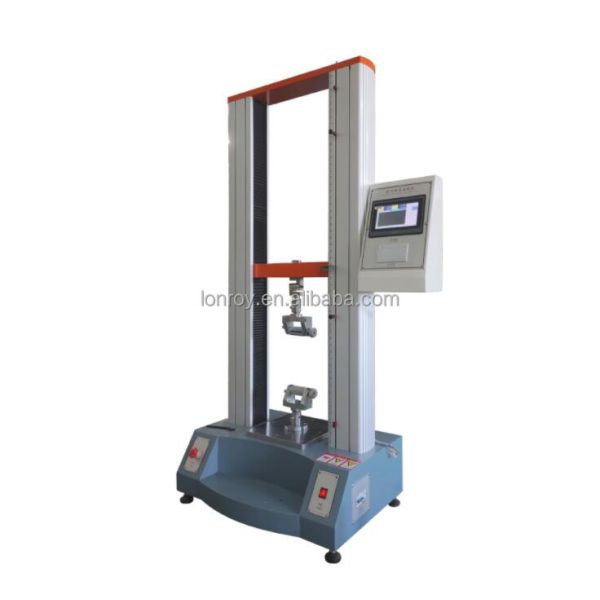

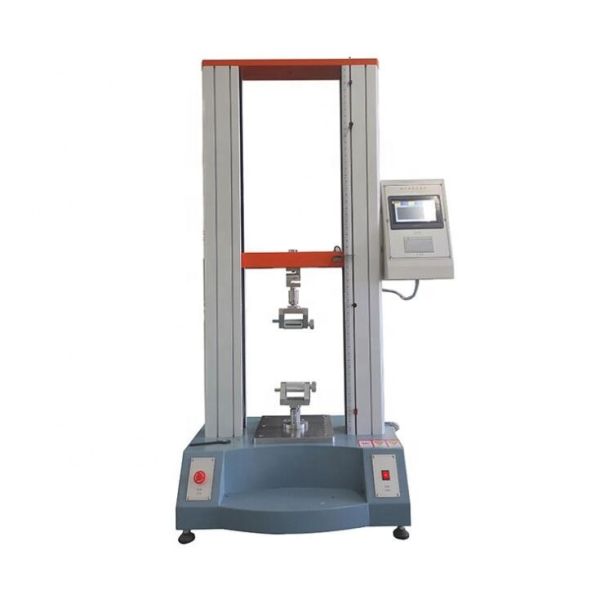

10KN Digital Tensile Test Machine,Cheap Tensile machine

Use

This machine is widely used in the mechanical properties test of non-metallic materials such as rubber, plastic, wire and cable, textile, waterproof material, non-woven cloth, metal wire, metal foil, metal plate and metal bar, and also suitable for tensile, compression, stripping, shearing, tearing test of various finished products with special fixture.

* AC variable frequency motor is used to drive precision T-type screw drive, stable operation and low noise;

* Digital display of force value, maximum force value, displacement, extension displacement, test speed stepless adjustable;

* Adopt high-precision encoder to measure displacement, with force resolution up to 1/25000, high test precision, wide measuring range, easy operation and low price;

* It has the functions of automatic stop, over current, over voltage and over load protection during test break;

* Equipped with a micro printer to print test data in real time.

10KN Digital Tensile Test Machine,Cheap Tensile machine

Specification

Capacity Choose

100,200,500,1000,2000kg

Force measurement

Within ± 1% of the indicated value

Display mode

Touched screen control

Unit switch

Kg,lb,N

Data sampling frequency

200times/sec

Testing machine resolution

The maximum load is 1/± 25,000 yards, the inside and outside are not classified, and the whole resolution is unchanged

Load transducer

Basic configuration: Tension and pressure sensors (maximum load)

Effective test width

380mm

Effective tensile space

1000mm

Test speed range

50-300mm/minStepless speed regulation and 5-gear constant speed (special test speed can be customized according to customer requirements)

Displacement measurement accuracy

Within ± 1% of the indicated value

Breakpoint ratio setting

0~99%,Users can set the appropriate break down time according to different materials

Test bench safety device

Up and down travel limiter

Overload protection

When the maximum load exceeds 10%, the machine will be protected automatically

Grips provide

Tensile fixture 1set

Machine size

1100×700×2000mm

Machine weight

About 200 Kg

Power

220V/50Hz
