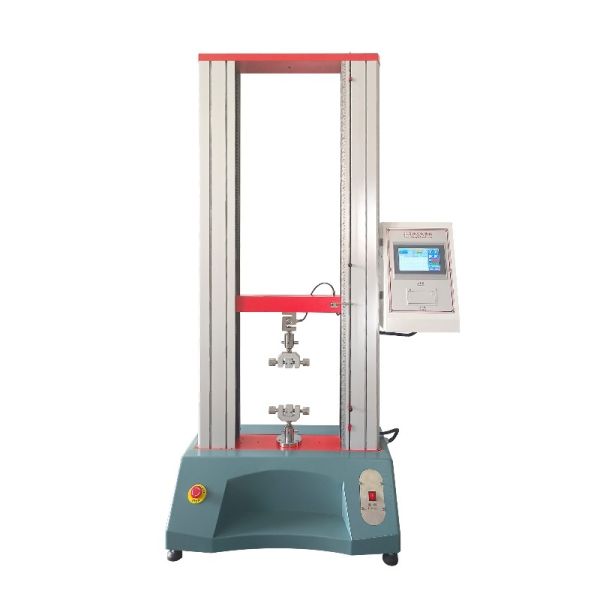

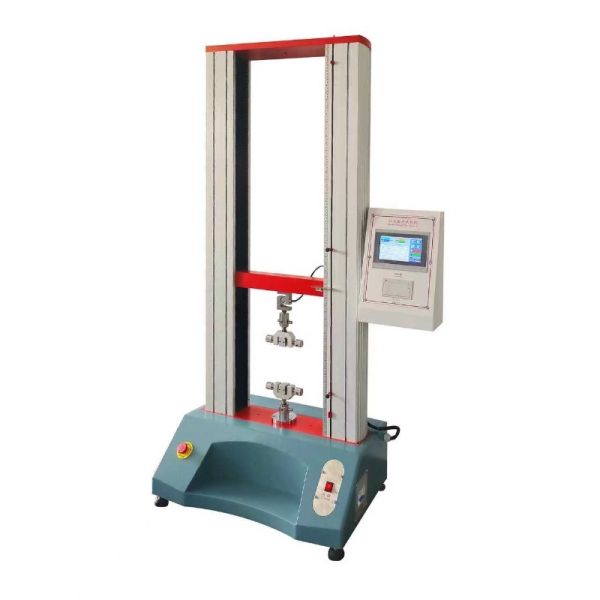

ISO 1924 ASTM D903 Digital Universal Tensile Testing Machine Digital Screen Tension Tester Tensile Strength Testing Equipment

Summary

This testing machine is suitable for rubber, plastic, plastic film, and other flexible materials with large deformation. Tests such as tensile, tear, bonding strength, and peeling (90 degrees and 180 degrees) can be completed.

1. Using AC variable frequency motor to drive precision ball screw transmission, with smooth operation and low noise;

2. Digital display of force value, maximum force value, displacement, test speed is steplessly adjustable;

3. Using high-precision encoder to measure displacement, the force value resolution is as high as 1/25000, the test accuracy is high, the measurement range is wide, and the operation is easy;

4. With test pull-off automatic shutdown, over-current, over-voltage, and overload protection functions;

5. Equipped with a micro printer to print test data in real time.

Theory

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper loadcell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on the touch screen monitor.

Test Standards

Universal tensile testing machine can be suitable for so many test standards, here we just show some mainly used test standards, other standards, pls tell us the standards you need, then we check for you.

Mainly test standards

ISO 1924-3, ASTMD903, ASTM D412, ASTM D882, ASTM D638, ASTM D828, CNS- 11888, ASTM D2344, ASTM D4255, ASTM C273, ASTM D790, 6272, 7264, ASTM D1781 or MIL-STD-401B, ASTM D905, JIS K6854, PSTC-7, ISO 37, etc.

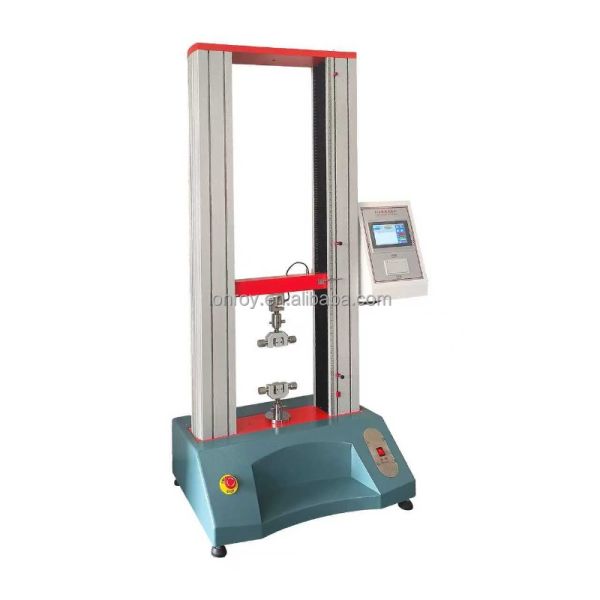

ISO 1924 ASTM D903 Digital Universal Tensile Testing Machine Digital Screen Tension Tester Tensile Strength Testing Equipment

Technical Specification
