Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
/
Protection Class :
Ip56
Voltage :
110 V, 220 V
warranty :
1 Year
Product name :
Durable Corrosion Mechanics Tensile Testing Machine
Maximum test force :
50KN
Testing machine grade :
Level 1
Load measurement range :
From 1% to 100% of the full scale
MOQ :
1
Description

Durable Corrosion Mechanics Tensile Testing Machine Lasting Erosion Dynamics Stretch Tester

Introduction

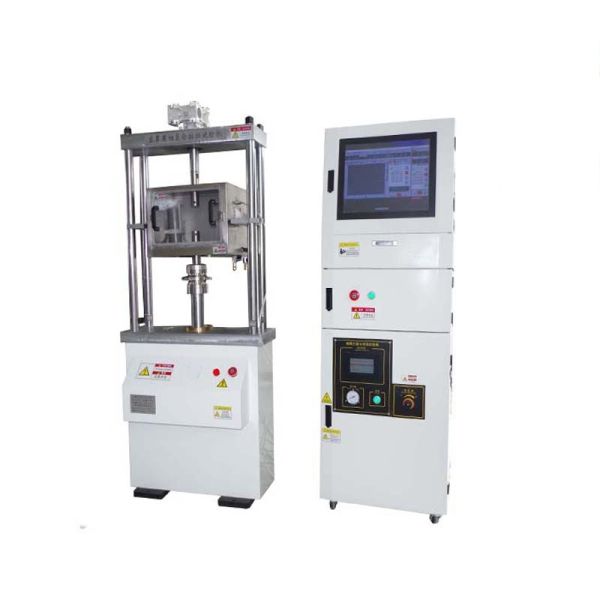

The corrosion, tension and compression testing machine is a device specifically designed for conducting long-term tests on metal materials. It is equipped with a corresponding environmental simulation system, which enables it to perform "persistence" tests on metal materials. It is an indispensable testing equipment for laboratories of colleges and universities, material research and production enterprises. The test control system is composed of the testing machine mainframe, digital controller, salt spray environmental test chamber, salt spray generator, and computer group control and inspection system. It is a high-tech product with integrated mechanical and electrical features. The mainframe uses an electromechanical servo mechanism composed of ball screw, reducer, and AC servo motor to load the sample, and adopts a high-precision and stable sensor electrical measurement system to measure the force and deformation applied to the sample. With the participation of the computer, it can perform closed-loop control of force, deformation and displacement of the sample, maintaining the constant force or deformation applied to the sample for a long time. It can also apply periodic dynamic loads to the sample according to a certain program or waveform.

Durable Corrosion Mechanics Tensile Testing Machine Lasting Erosion Dynamics Stretch Tester

Technical Specification

Maximum test force

50KN

Testing machine grade

Level 1

Allowable error limit of test force indication

Within ±1% of the indicated value

Load measurement range

From 1% to 100% of the full scale

Limit error of displacement indication

Within ±1% of the indicated value

Displacement resolution

0.01mm

Displacement speed adjustment range

0.01 - 200mm/min

Displacement rate control accuracy

When the rate is ≥ 1mm/min, the set value is within ±0.5%
