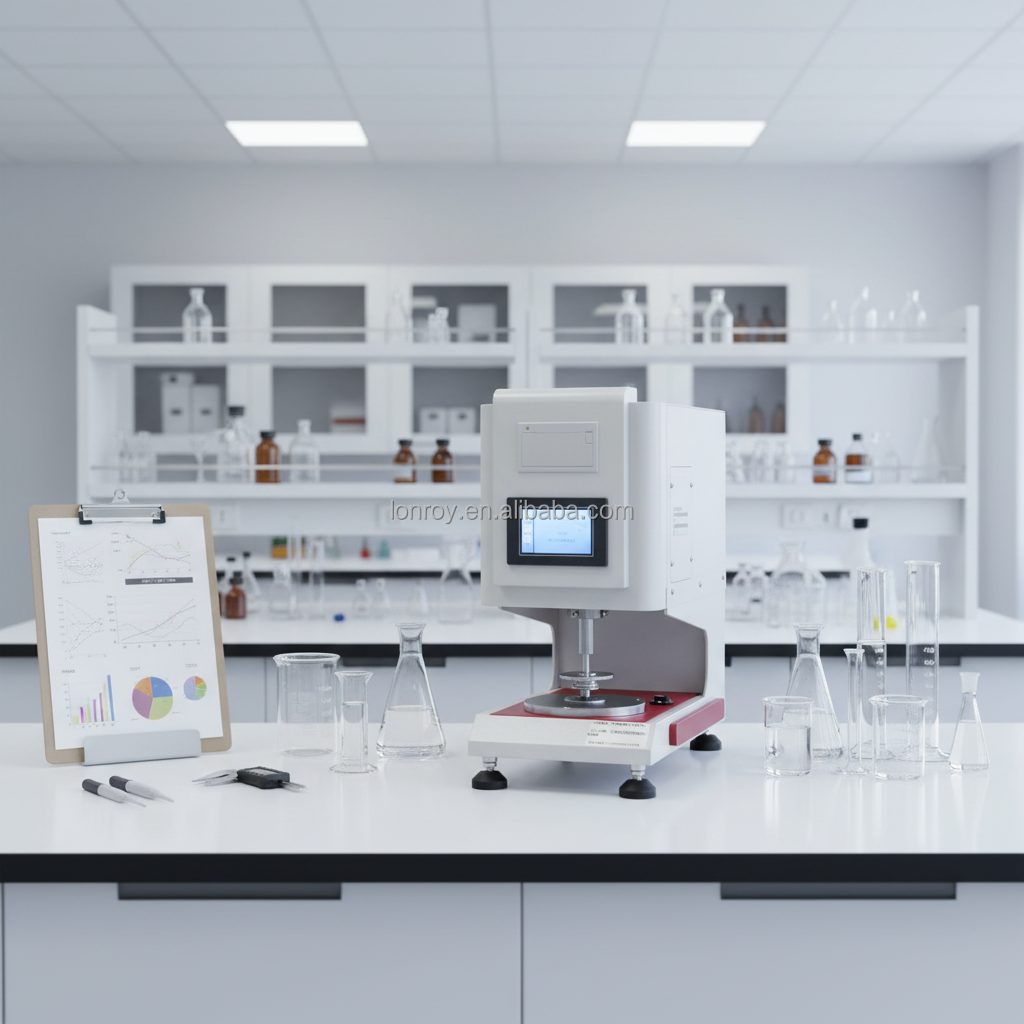

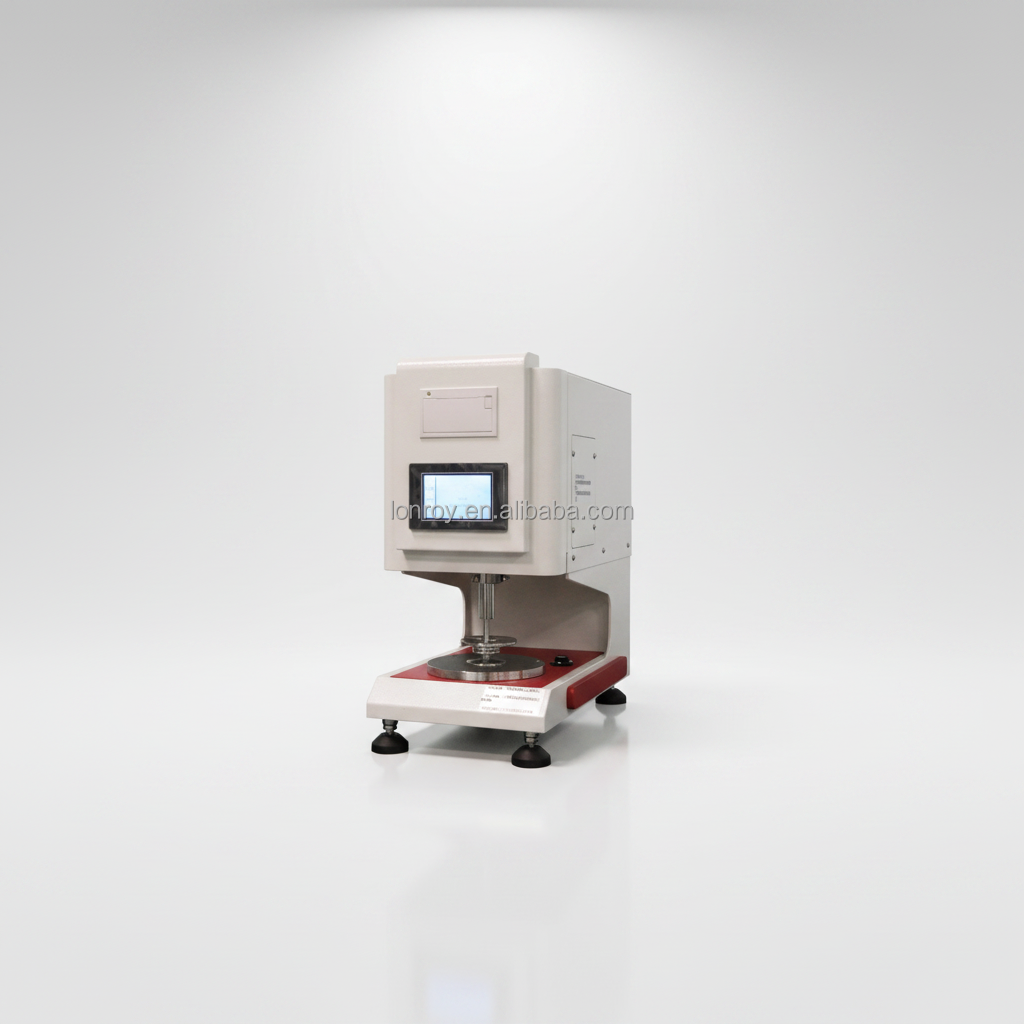

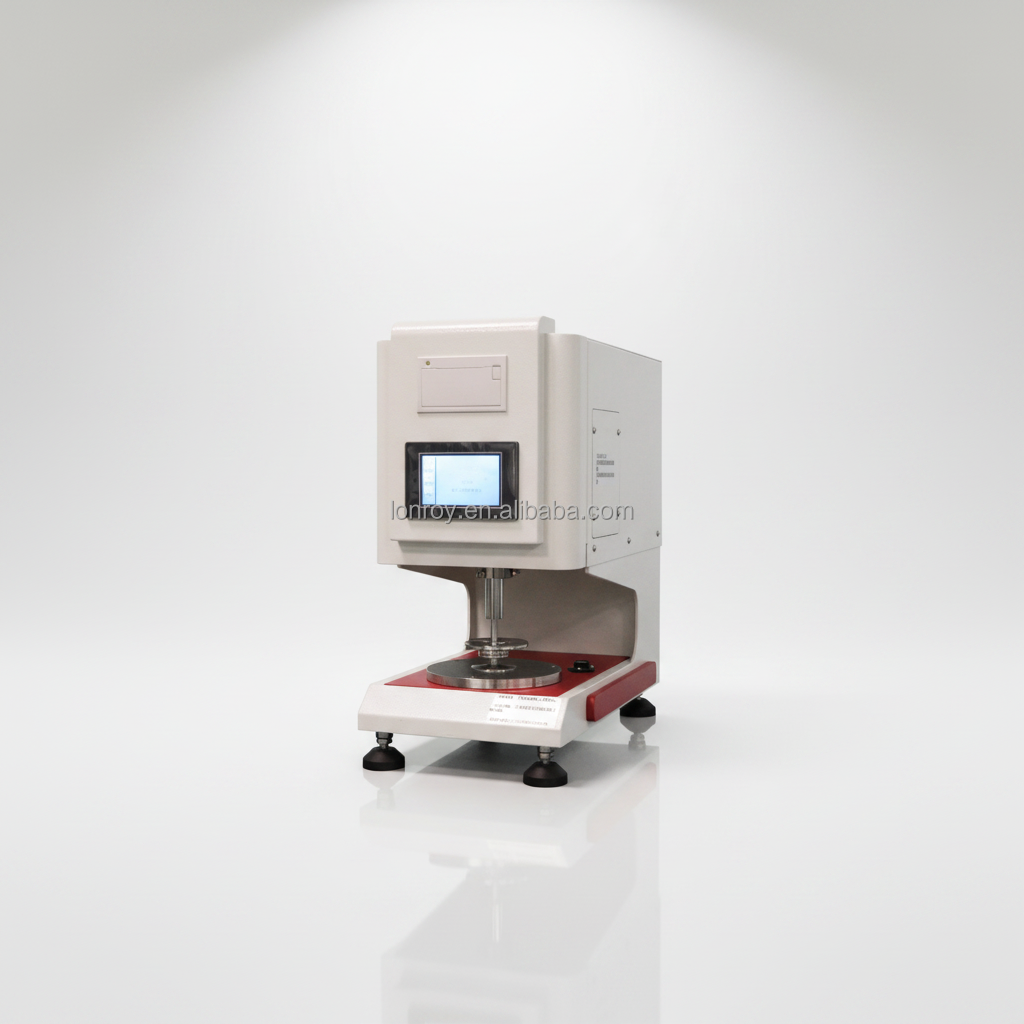

ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
MOQ :
1
Description

ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument

Scope of Application

It is mainly applicable for the thickness measurement of smooth-textured geotextiles and their related products.

Compliant with standards

ASTM D5199

Instrument Characteristics

1. Touchscreen control, with both Chinese and English menus, human-machine dialogue mode, and easy operation.

2. Built-in thermal printer, facilitating quick printing of test results on-site.

3. Motor-driven structure, allowing for arbitrary setting of a speed ranging from 1 to 1000 mm/min to complete the instrument's ascending and descending movements.

4. The instrument uses its own power supply, eliminating the need to replace batteries.

5. Test modes: single-shot and continuous.

6. It adopts self-balancing pressure feet, ensuring accurate and repeatable testing.

7. The test pressure is automatically converted and displayed, eliminating the need for manual calculation.

AvASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument

Technical Specification

Measurement range

20mm

Accuracy

0.001mm

Pressure foot diameter

φ56.4, φ6.35

Pressure weight

2KPA/500CN,20KPA/63.5g

Pressure weight time

1 to 999 seconds,adjustable

Test speed

1 to 1000 mm/min

Test data storage

30 groups,20 test results per group

Dimensions

250×450×460mm

Weight

35kg

Power supply

AC220V 50Hz 100W

ASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring InstrumentASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring InstrumentASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring InstrumentASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring InstrumentASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring InstrumentASTM D5199 Smooth Surface Geotextile Thickness Tester Flat Smooth-textured Surface Geotextiles Thickness Measuring Instrument
