Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Display mode :
7 inch capacitive touch screen
MOQ :
1
Description

ASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing Equipment

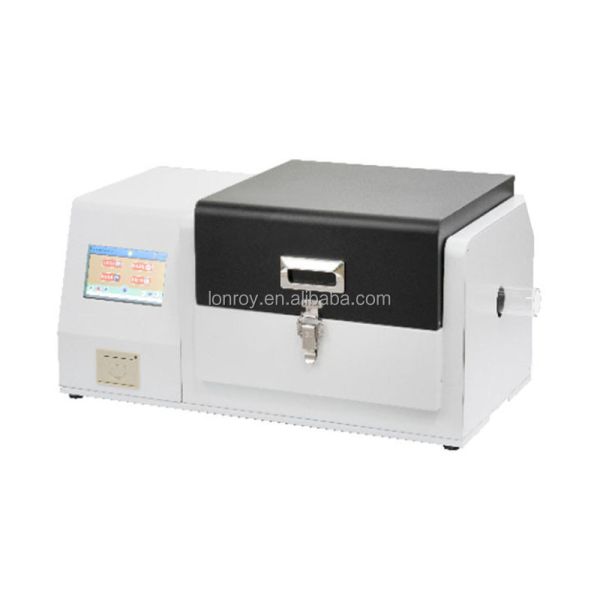

Introduction to the instrument

Carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutene plastic, cable and cable insulation and sheath materials, rubber. In line with the NATIONAL standard GBT 3515-2005, GBT 13021-1991, GB/T2951.41-2008, ASTM D4218,IEC60811-4-1:2004 and other standards, not limited to this. A certain amount of samples were pyrolyzed in nitrogen flow at high temperature, and then switched to oxygen for calcination. Finally, the carbon black content and ash content were calculated by analyzing the weight of the samples after pyrolysis.

ASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing Equipment

Technical Specification

Display mode

7 inch capacitive touch screen

Quartz tube size

φ44×600±5mm

Furnace size

φ45×360±5mm

Heating element

high temperature alloy wire

Length of heating zone

300mm

Operating temperature

room temperature ~ 1200℃

Temperature control mode

intelligent programmable control, segmented program can be set

Power supply

AC220V/50HZ/60HZ

Sensor sensitivity

0.1℃

Air control

two channels, program automatic switching

Cooling mode

rapid cooling (≤20min, 900℃ to room temperature)

Number of test samples

4 samples at one time, efficiency increased by 4 times

Data calculation

built-in software calculation function, one-click calculation; automatic calculation of black carbon content and ash content

Sample rack

custom guide rail type, easy to take and place samples

Structure design

open cover type, fast cooling, shorten test cooling time

Exhaust filter device

optional

Printing function

support direct report printing

ASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing EquipmentASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing EquipmentASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing EquipmentASTM D4218 IEC 60811 Carbon Black Content Tester Polyethylene Carbon Black Content Analyzer Carbon Black Testing Equipment
