Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Equipment size :
Length: 1000mm * Width: 610mm * Height:765mm
MOQ :
1
Description

Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine

Equipment Application

This machine is suitable for the coating, bonding, and molding of UV light-sensitive coatings, inks, and adhesives, or for the instant curing and drying of the printed surfaces of various materials.

1) Printing: Widely used in screen printing, offset printing, letterpress printing, self-adhesive labels, metal nameplates, PC, PVC, ABS, PS, acrylic, terephthalate, glass, ceramics, electronic components, single-sided circuit boards, etc.

2) Coating: Wood surface bright coating, paper surface glossing, plastic floor tiles and PU leather surface glossing, optical fiber surface coating, etc.

3) Bonding: Bonding of CHIP components on circuit boards, various electronic components, glass bonding, bonding of liquid crystal sheets and terminal sealing adhesives.

4) Molding: Decorative colored plates and vessels, decorative accessories (buttons, hairpins, belt buckles, etc.)

Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine

Technical Specification

Serial Number

Project

Specification

Remarks

1

Equipment

model

LR400

2

Equipment power supply

AC220V

3

Equipment

size

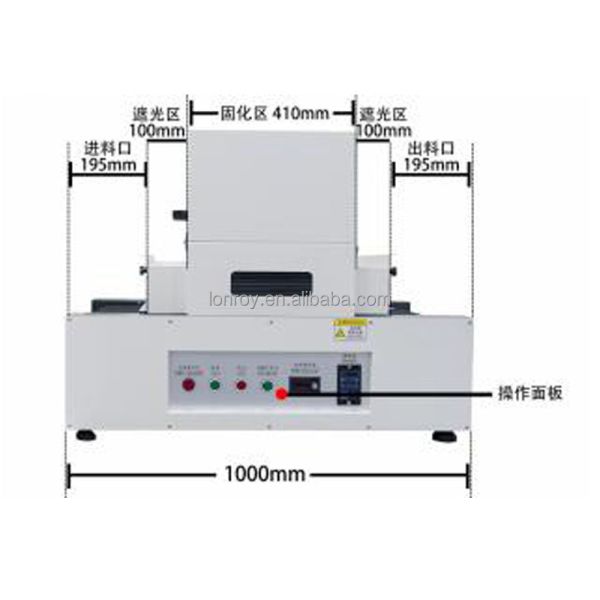

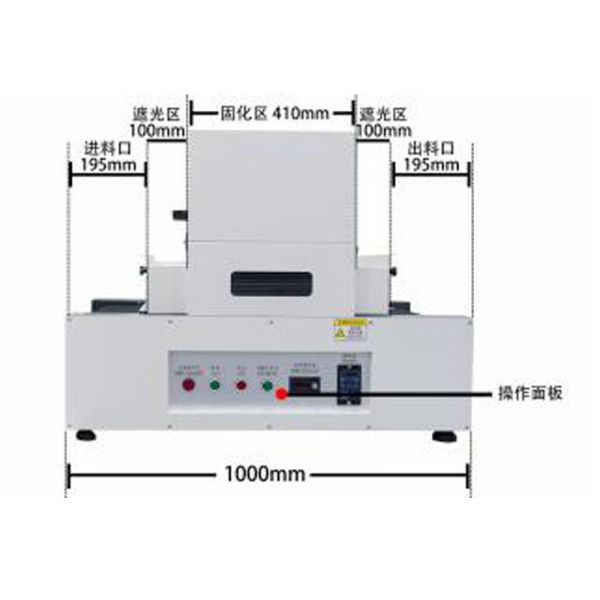

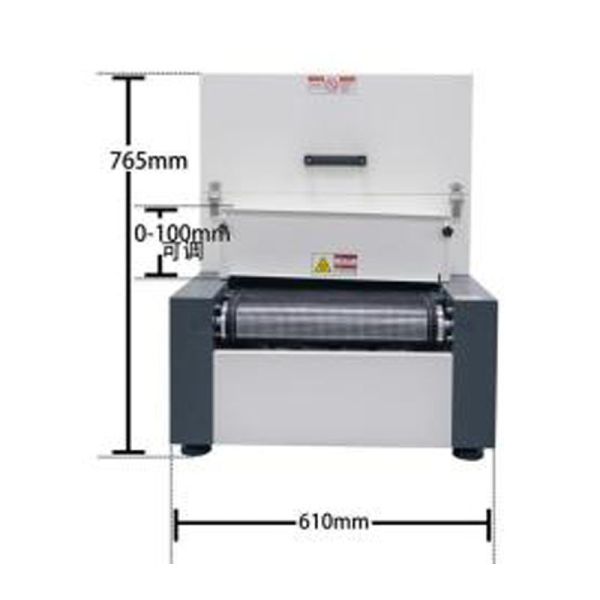

1. Length: 1000mm * Width: 610mm * Height:

765mm

2. Curing area: 410mm

3. Light-blocking area: 100mm

4. Feed inlet height: 195mm

4

UV light

source

1. Light source type: UV LED

2. Light source peak wavelength: 395nm

3. Lamp power: 3000W

4. Light emission size: 400*100mm

5. Number of light sources: 1 group

6. Illumination method: Top illumination 7. Heat dissipation method: Water cooling

5

UV power

supply

1,Mingwei / Jiali

6

Transportation structure

1. Transmission speed: 0.5 - 8 M/min

2. Transmission track: Teflon mesh belt

7

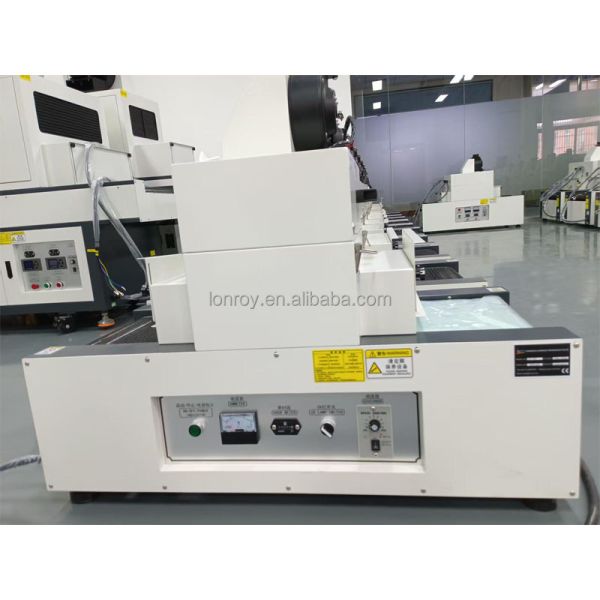

Control Panel

1. Power indicator light * 1

2. Start button * 1

3. Stop button * 1

4. LED light switch * 1

5. Power regulator * 1

6. Speed regulator * 1

7. Life timer * 1

8

Heat

dissipation

method

1.water-cooling

Add water to cool,no need to use Refrigerant

Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test MachineUltraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
