Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Overall dimensions :
800*800*3370mm or 800*800*3600mm
Total weight :
390Kg/450Kg
MOQ :
1
Description

ISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact Tester

Product Introduction

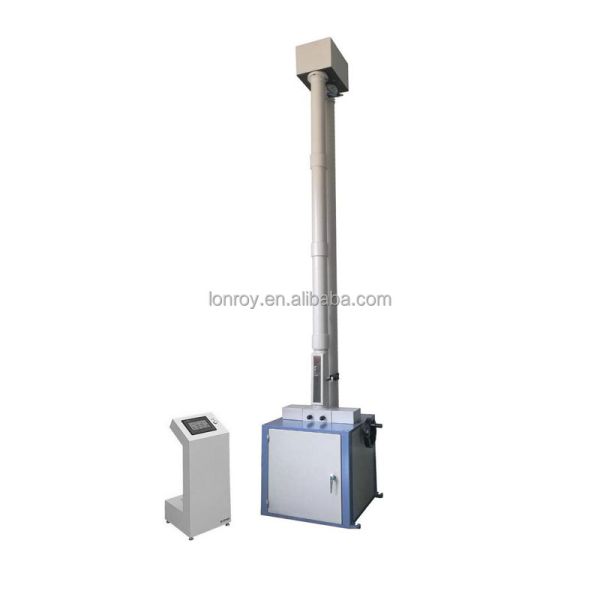

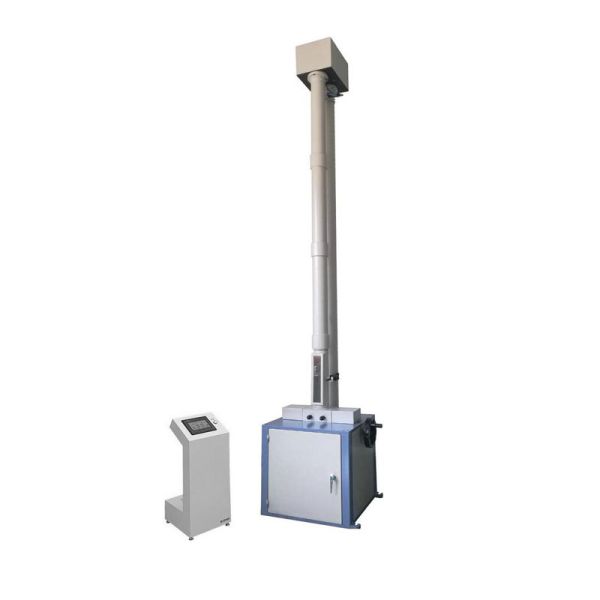

The XJL-300B drop hammer impact testing machine is suitable for determining the resistance to external impact of various pipes (water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure water transmission pipes, core layer foamed pipes, double-wall corrugated pipes) and plates.

Conforming Standards

ISO 13957, JB/T9389, GB/T14152, GB/T14153, GB/T6112, GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, GB/T18477

Instrument Characteristics

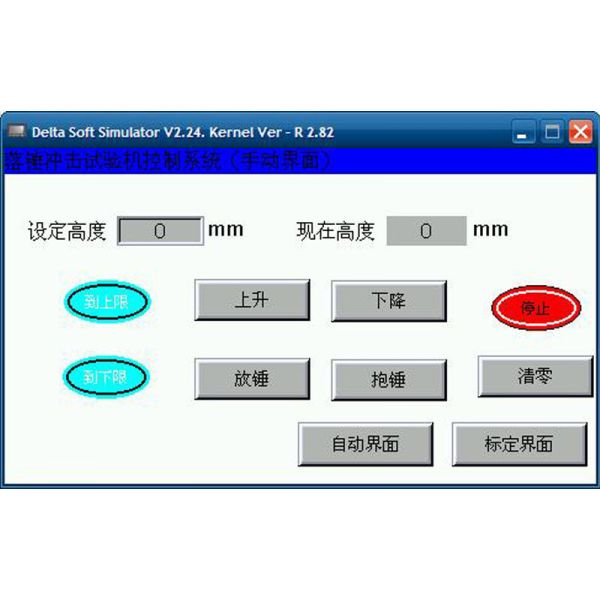

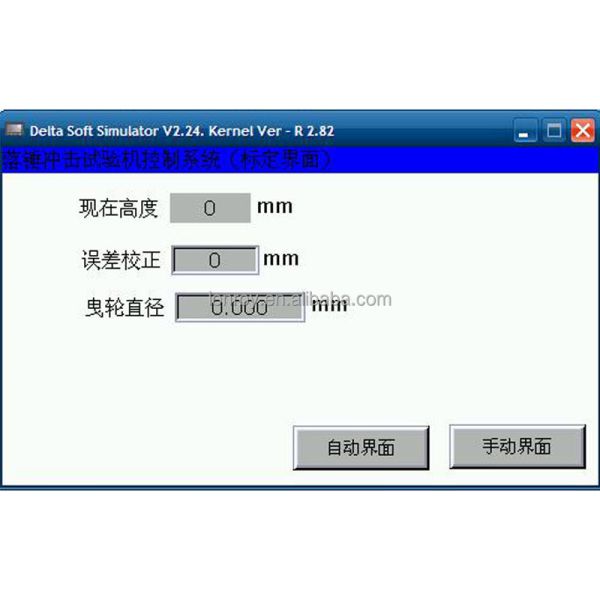

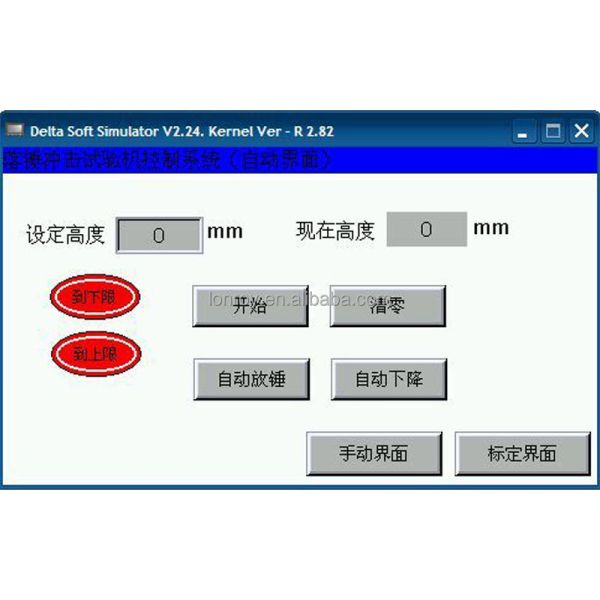

1. 7-inch color touch screen input, featuring functions such as automatic hammer suction, automatic zeroing, automatic lifting and lowering, and automatic prevention of secondary impact.

2. Chain drive for ascending and descending, with the chain, sprocket and motor working in coordination to avoid the entanglement caused by wire rope drive.

3. Double-tube structure, ensuring safer and more reliable operation.

ISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact Tester

Technical Specification

Maximum impact energy

300J

Hammer mass

0.25kg - 16.000kg, with an increment of 0.125kg

Hammer head curvature radius

d25, d90 (for pipe testing) or R5, R10, R20, R25, R30, R50 (for plate testing)

Impact height

50mm - 2000mm

Impact height error

±2mm

Pipe sample specification

≤Φ400mm or ≤Φ630mm

Plate testing fixtures

Φ40±1.0mm, Φ80±2.0mm, Φ130±2.5mm

Maximum thickness of plate samples

40mm

Power supply

220V 50Hz

Overall dimensions

800*800*3370mm or 800*800*3600mm

Total weight

390Kg/450Kg

ISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact TesterISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact TesterISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact TesterISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact TesterISO 13957 Drop Hammer Impact Testing Machine Pipes External Impact Resistance Test Equipment Falling Weight Impact Tester
