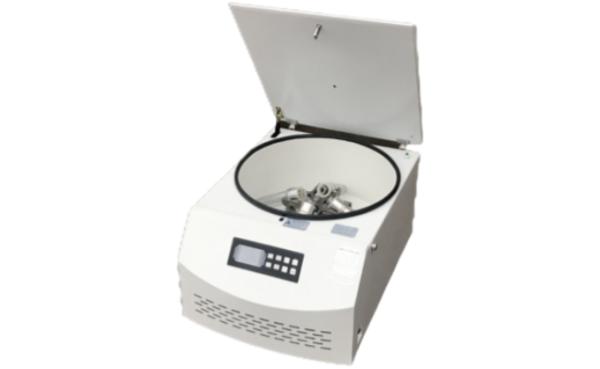

SH6533A Crude Oil Moisture and Sediment Analyzer (Centrifugal Method)

The SH6533A crude oil moisture and sediment analyzer is designed for the determination of moisture and sediment in crude oil using a centrifuge, and meets the requirements of GB/T653-86 standard. Use centrifuge separation method to determine water and sediment in crude oil. It is an ideal separation equipment for moisture determination in the oil extraction industry and scientific research institutions.

Main technical specifications, parameters, and performance characteristics:

● Microcomputer control, touch panel, intuitive digital display, automatic memory of operating parameters, RCF direct start, convenient operation and use

● High torque brushless variable frequency motor drive, European imported ultra high speed bearings, smooth operation, maintenance free

Steel body, stainless steel centrifugal chamber, imported key components, corrosion-resistant, easy to clean, durable

● Protection functions such as overspeed, door cover, and imbalance, as well as life calculation functions for the main engine and rotor, ensure safety.

● Equipped with high-power heating design, it heats up quickly; Exclusive SCT speed control technology, fast acceleration and deceleration, time-saving and efficient

● Adopting uniform heating method, fast heating and high temperature control accuracy

● Microcomputer control, high torque brushless DC variable frequency motor; Stable speed and low motor noise

● Adopting a silent electromechanical integrated motor door lock.

● Equipped with dual shock absorbers and automatic balancing function, it runs smoothly and can be separated by visual balance.

Technical parameters:

Model: SH6533A

Maximum speed: 4000r/min (recommended speed for glass tubes is 3000r/min)

Maximum relative centrifugal force: 4390 xg (it is recommended to use a glass tube with a maximum centrifugal force of 2362 xg)

Petroleum specific rotor: 4 × 100ml

Temperature range: Room temperature ～ 80 ℃

Timing range: 0 ～ 99min

Power supply: AC 220V 50Hz 18A

Whole machine noise: ≤ 65dB

Dimensions: 700 × 560 × 350mm

Weight: 55kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
