Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510
Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510
Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510
Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510
Specifications
Brand Name :
Shandong Shengtai Instrument Co., Ltd.
Model Number :
SH113A-N
Certification :
GB/T510
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
7-15 work days
Packaging Details :
wooden case
Temperature control range :
room temperature to -70 ℃
Condensation point measurement range :
room temperature to-55℃
Temperature control accuracy :
± 0.5 ℃
Packaging size :
480 * 530 * 590mm
Weight :
75kg
Host cooling method :
alcohol bath
Description

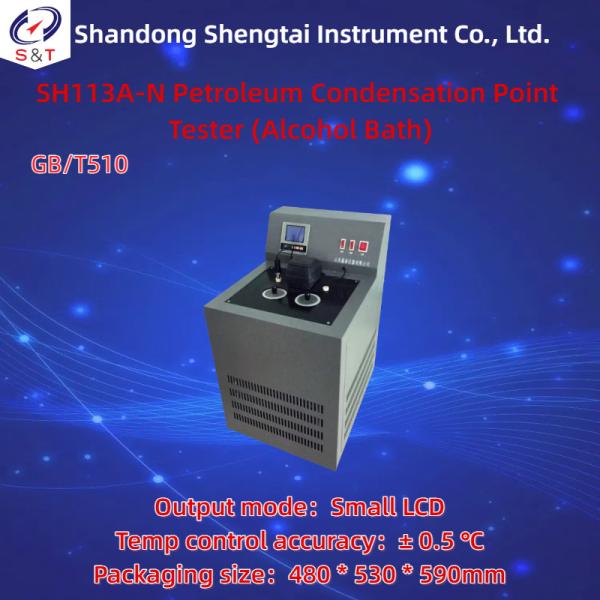

SH113A-N Petroleum Condensation Point Tester (Alcohol Bath)

The SH113A-N petroleum pour point analyzer (alcohol bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T510 "Petroleum pour point determination method", and is suitable for determining the pour point of petroleum products according to the methods specified in the above standards.

The condensation point is the highest temperature of an oil product when it is cooled in a test tube under specified test conditions until the liquid level does not move, expressed in degrees Celsius.

Main technical specifications, parameters, and performance characteristics:

Experiment 2 groups
Output mode Small LCD
Host cooling method alcohol bath
Working power supply AC220V ± 10% 50Hz
Temperature control range room temperature to -70 ℃
Condensation point measurement range room temperature to-55℃
Temperature control accuracy ± 0.5 ℃
Refrigeration system New type of refrigeration compressor (dual compressor)
Environmental temperature ≤ 30 ℃
Relative humidity ≤ 85%
Power consumption ＜ 1500W
Packaging size 480 * 530 * 590mm
Weight 75kg

Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is a small LCD display with good temperature control stability.

● The host is cooled by an alcohol bath, which cools down quickly.

Imported stacked compressor

● Working power supply: AC220V ± 10%; 50Hz.

● Temperature control range: room temperature to -70 ℃

● Condensation point measurement range: from room temperature to minus 55 degrees Celsius

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: New type of refrigeration compressor (dual compressor).

● Environmental temperature: ≤ 30 ℃.

● Relative humidity: ≤ 85%.

● Power consumption: not exceeding 1500W

● Packaging size: 480 * 530 * 590mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510

Packing list

Number Name Quantity Unit Note
1 Host 1 Unit
2 Condensed glass test tube 2 Set Includes inner and outer tubes
3 Condensation point thermometer 2 Piece
4 Power line 1 Strip
5 Fuse tube 1 Piece
6 Operation instructions 1 Copy
7 Packing list 1 Copy
8 Certificate of Conformity Warranty Card 1 Copy
