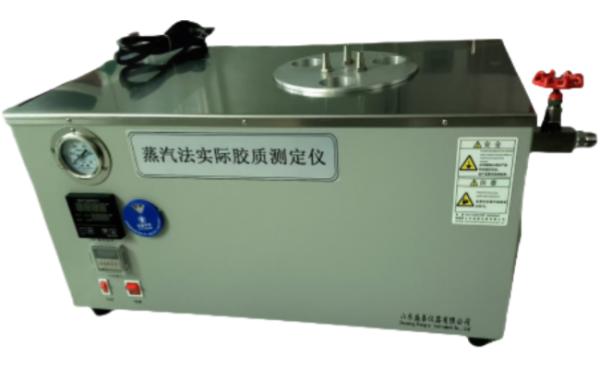

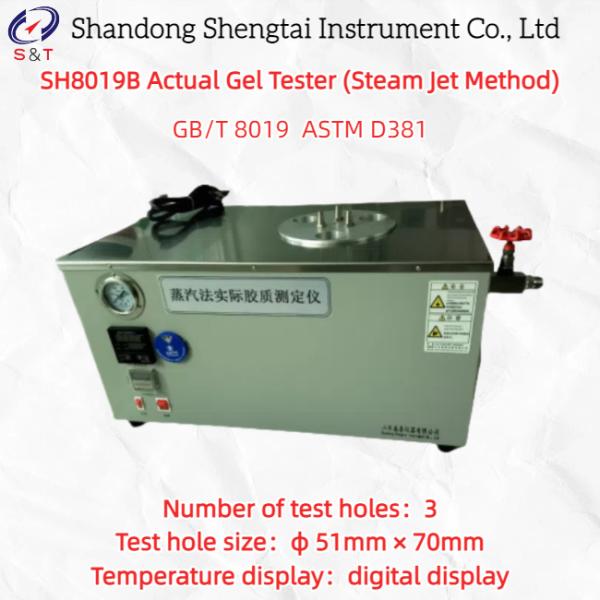

SH8019B Actual Gel Tester (Steam Jet Method)

The SH8019B actual gum tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T 8019-2008 "Determination of Gum Content in Fuel by Jet Evaporation Method".

Applicable to the method specified in GB/T 8019-2008 standard, using steam evaporation medium, for determining the actual gum content in aviation turbine fuel.

Standard:GB/T 8019 ASTM D381

Performance characteristics

Adopting a metal bath heating system, the heating speed is fast and the bath temperature is uniform.

The design has 3 independent test holes, which can simultaneously test 3 samples or test 1-3 samples. The testing efficiency is high, the use is convenient and flexible, and it can meet the testing requirements of different users.

Select high-quality evaporation furnaces with stable gas supply that meets the requirements of GB/T 8019 standard.

Each test hole is equipped with an independent flow meter, which can independently adjust the hot steam flow rate of each test hole, and the flow control is accurate and reliable.

Main technical parameters

● Working power supply: AC220V ± 10% 50Hz 2.5kW

● Type and size of evaporation bath: Aluminum bath block with a diameter of 260mm × 130mm

● Number of test holes: 3

● Test hole size: φ 51mm × 70mm

● Working temperature:

During steam bath, the experimental bath temperature is (232-246) ℃

Evaporation bath (test hole) (229-235) ℃

● Temperature control method: automatic temperature control

● Temperature display: digital display

● Flow display: displayed by pressure gauge

● Gas source: external electric heating steam boiler

● Host size: 650 * 550 * 430mm

● Weight: 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
