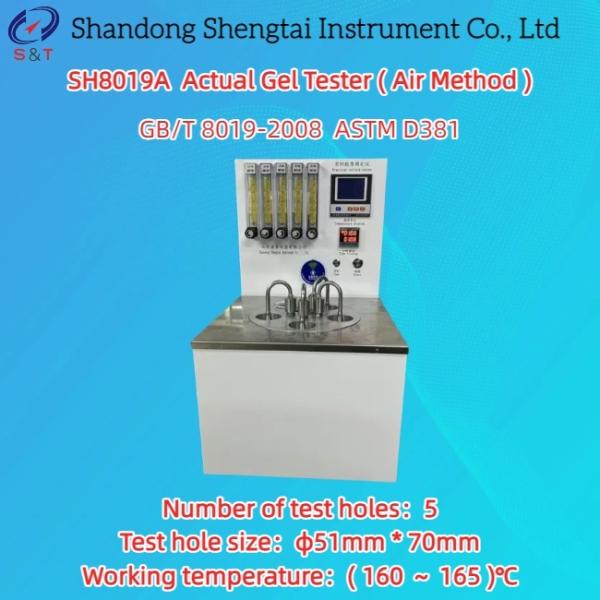

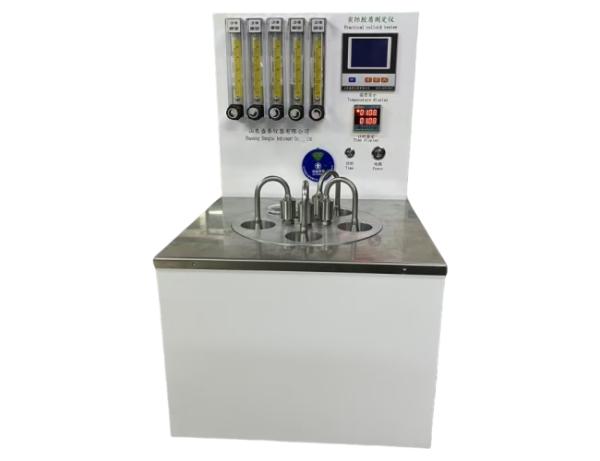

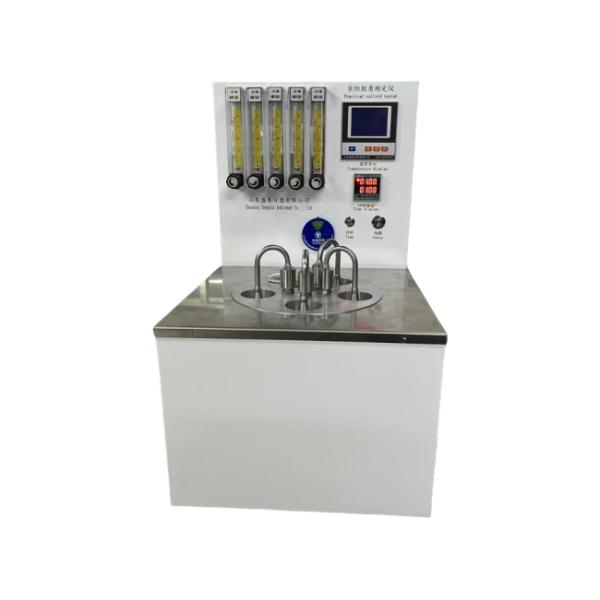

SH8019A Actual Gel Tester (Air Method)

SH8019A actual gum analyzer is a specialized instrument used to determine the actual gum content in aviation gasoline and automotive gasoline.

Suitable for conducting actual gel testing on aviation gasoline and automotive gasoline using the method specified in GB/T 8019-2008 "Determination of Gel Content - Jet Evaporation Method" equivalent to ASTM D381.

Main technical parameters and performance

● Working power supply: AC220V ± 10% 50Hz

● Evaporation bath type and size: Aluminum bath block with a diameter of 260mm * 130mm

● Number of test holes: 5

● Test hole size: φ 51mm * 70mm

● Temperature range: Room temperature ～ 260 ℃

● Working temperature: (160 ～ 165) ℃

● Temperature control method: automatic temperature control

● Temperature display: digital display

● Flow display: displayed by a floating ball air flow meter

● Working pressure of air pressure reducing valve: ＜ 0.1MPa

● Jet nozzle outlet air flow rate: 600mL/S per hole

● Input power: ＜ 2000W

● Dimensions: 590mm * 480mm * 340mm (L * W * H, excluding thermometer holder)

● Packaging size: 555 * 420 * 645 mm

● Packaging weight: 51.5kg (wood)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
