BD-D130-5096A Copper Strip Corrosion Tester
BD-D130-5096A Copper Strip Corrosion Tester
Specifications
Brand Name :
SHUOBODA
Heating power :
1600 W
MOQ :
1 set
Delivery Time :
5~8 working days
Model Number :
BD-D130-5096A
Place of Origin :
China
Power supply :
AC 220 V±10%, 50 Hz
Temperature range :
Ambient to 100 °C,can be set at will
Temperature control accuracy :
±1 °C
Supply Ability :
500 sets/month
Packaging Details :
Plywood packing
Payment Terms :
L/C,T/T
Temperature display mode :
LCD
Price :
Negotiable
Certification :
ISO/CE
Temperature sensor :
RTD, Pt100
Description
BD-D130-5096A Copper Strip Corrosion Tester
Product Overview
The BD-D130-5096A Copper Strip Corrosion Tester is designed and manufactured in accordance with the national standard of People's Republic of China GB/T 5096 and ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test. This instrument is suitable for determining the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument features temperature control, automatic timing, and alarm functions.
Main Technical Features
  • Utilizes LCD temperature controller, heater, and electric stirrer to form a constant temperature bath with uniform temperature distribution
  • Temperature controller includes timing function to control test duration with automatic timing and alarm notification upon completion
  • Features four sample holes capable of holding one bomb or three tubes per hole for high testing efficiency
  • Equipped with a standard color board imported from USA to meet test method requirements
Technical Specifications
  • Power supply: AC 220 V±10%, 50 Hz
  • Temperature sensor: RTD, Pt100
  • Temperature range: Ambient to 100 °C, adjustable
  • Temperature control accuracy: ±1 °C
  • Temperature display mode: LCD
  • Heating power: 1600 W
  • Time controlling range: 1 minute to 24 hours, adjustable
  • Sample testing positions: Four positions
  • Sample quantity at one test: 4 to 12 pieces
  • Ambient temperature: Room temperature to 35 °C
  • Relative humidity: ≤ 85%
  • Maximum power consumption: 1800 W
  • Dimensions: 440mm × 330mm × 560mm
Standard Accessories
No. Item Unit Qty Remarks
1Test bomb bracketPiece2
2Test tube bracketPiece2
3Copper stripPiece8
4Test tubePiece8
5Test bombPiece2
6Observation tubePiece5
7Grinding devicePiece1
8Thermometer 0°C ~ 100 °C, scale division is 0.5 °CPiece1
93 # Silica gel plugPiece1
10Temperature sensorPiece1
1110 A fuse (Φ5×20)Piece2
12"O" type ring (Φ40mm×3.5mm, Φ42mm×3.5mm)Piece2 for each
13Standard color boardPiece1
14Stopping ring for thermometer (1 #)Piece4
15Stopper for test tubePiece14

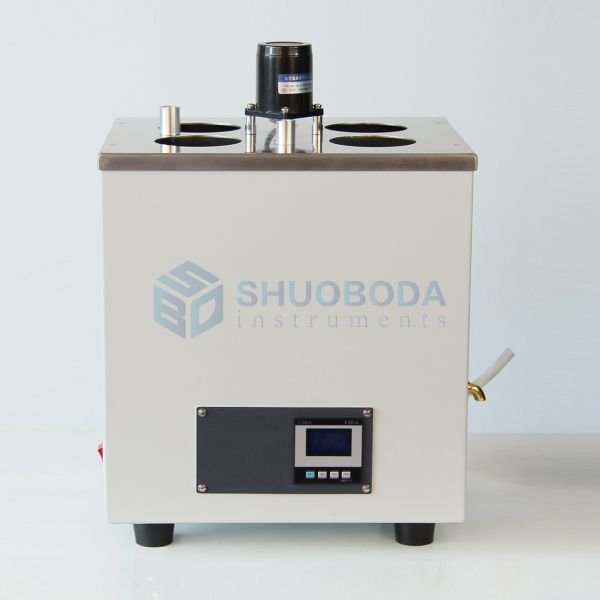

Product Image
