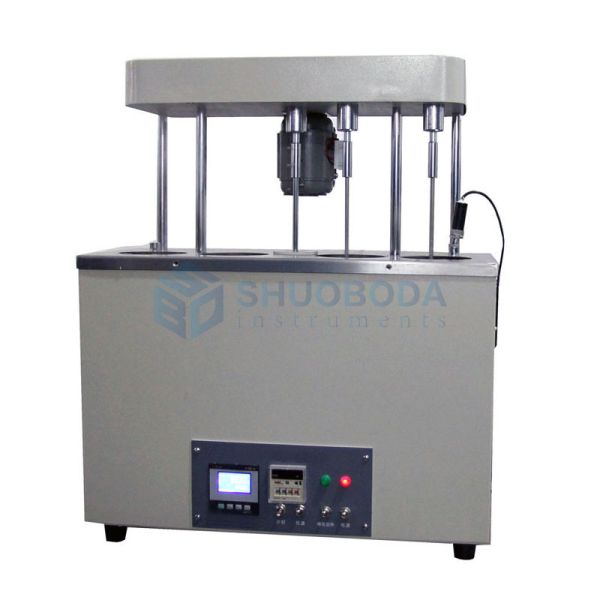

BD-D665-5096 Rust Characteristics and Corrosion Tester
BD-D665-5096 Rust Characteristics and Corrosion Tester
Specifications
Certification :
ISO/CE
Packaging Details :
Plywood packing
Delivery Time :
5~8 working days
Maximum power consumption :
1800 W
Place of Origin :
China
Temperature range :
0 ~ 100°C, set at will.
Brand Name :
SHUOBODA
Power supply :
AC (220±10%) V, 50Hz
Supply Ability :
500 sets/month
Temperature sensor :
Pt100
Temperature control accuracy :
±1°C
MOQ :
1 set
Time display :
LED
Model Number :
BD-D665-5096
Price :
Negotiable
Payment Terms :
L/C,T/T
Description
BD-D665-5096 Rust Characteristics and Corrosion Tester
The BD-D665-5096 Rust Characteristics and Corrosion Tester is manufactured in accordance with standards ASTM D130 and ASTM D665. This multifunctional tester is designed for determining the corrosion and rust-preventing characteristics of petroleum products.
Key Features
  • Multifunctional tester with excellent performance-to-cost ratio
  • Features LCD temperature controller, heater, and electric stirrer for uniform temperature distribution in the constant bath
  • Temperature controller includes timing function for automatic test time control
  • Equipped with imported standard color board from USA to meet test method requirements
Technical Specifications
  • Power supply: AC (220±10%) V, 50Hz
  • Temperature sensor: Pt100
  • Temperature range: (0 ~ 100)°C, adjustable
  • Temperature control accuracy: ±1°C
  • Temperature display: LED
  • Temperature control heating power: 600W
  • Auxiliary heating power: 1000W
  • Time control range: 1 minute ~ 24 hours, adjustable
  • Time display: LED
  • Sample testing positions: Four positions
  • Ambient temperature: Room temperature ~ 35°C
  • Relative humidity: ≤ 85%
  • Maximum power consumption: 1800W
Standard Accessories
No. Item Unit Quantity Remarks
1Thermostatic bath coverPiece2
2Test bomb bracketPiece2
3Test tube bracketPiece2
4Beaker bracketPiece2
5Silver strip corrosion test tube bracketPiece2
6Glass BracketPiece2
7Oil sample stirring rodPiece2
8Test rod holderPiece2
9Test barPiece2
10Beaker coverPiece2
11Test bombPiece2
12SpecimenPiece6
13Observation tubePiece3
14Test tubePiece6
15Silver Strip Corrosion condenserPiece2
16Thermometer 0°C ~ 100°C, scale division 1°CPiece1
17Standard color boardPiece1
18Grinding devicePiece1
1910 A fuse (Φ5×20)Piece2
20Temperature sensorPiece1
21Silver strip corrosion test tubePiece2
22"O" type ring (Φ40mm×3.5mm, Φ42mm×3.5mm)Piece3 for each
23BeakerPiece2
24Stopping ring for thermometer (1 #)Piece4
