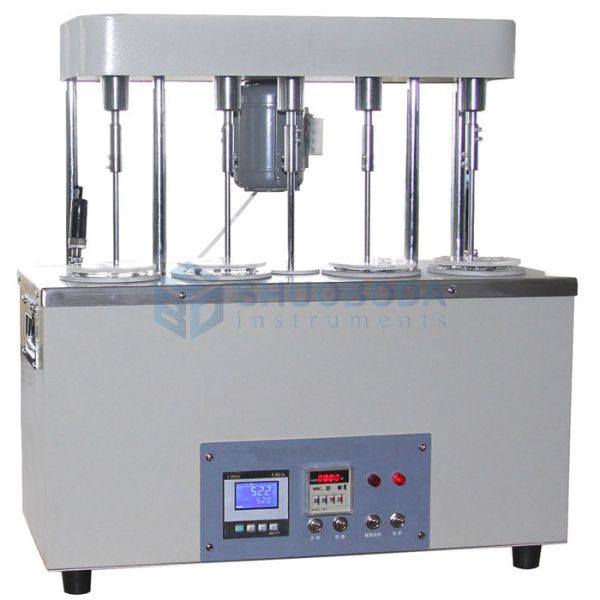

BD-D665-11143 Lubricating Oil Rust Characteristics Tester
BD-D665-11143 Lubricating Oil Rust Characteristics Tester
Specifications
Place of Origin :
China
Model Number :
BD-D665-11143
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Temperature sensor :
RTD, Pt100
Payment Terms :
L/C,T/T
Maximum power consumption :
1800W
Certification :
ISO/CE
Supply Ability :
500 sets/month
Temperature range :
0°C ~ 100°C
Temperature control accuracy :
±1°C
Dimension :
580mm×320mm×600mm
Brand Name :
SHUOBODA
MOQ :
1 set
Price :
Negotiable
Power supply :
AC (220±10%) V, 50Hz
Description
BD-D665-11143 Lubricating Oil Rust Characteristics Tester
Product Overview

The BD-D665-11143 Lubricating Oil Rust Characteristics Tester is designed and manufactured in accordance with National Standard GB/T11143 "Test Methods for Rust-Preventing Characteristics of Inhibited Mineral Oil in the Presence of Water", ASTM D665, and IP135 standards.

Purpose & Applications

This instrument is specifically designed to determine the rust-preventing characteristics of inhibited mineral oil, particularly the rust-preventing characteristics of turbine oil to iron parts in the presence of water. It is also suitable for testing other oils such as hydraulic pressure oil, circulation oil, as well as liquids heavier than water.

Key Features
  • Digital temperature control system with uniform bath temperature distribution
  • Programmable timer for test duration control with automatic timing
  • Four simultaneous sample testing positions for high testing efficiency
  • Temperature control, timing, and alarm functions
Technical Parameters
  • Power Supply: AC (220±10%) V, 50Hz
  • Temperature Range: 0°C ~ 100°C
  • Temperature Control Accuracy: ±1°C
  • Temperature Sensor: RTD, Pt100
  • Temperature Display: Digital display
  • Timing Range: 1min ~ 24hour, adjustable
  • Time Display: Digital display
  • Temperature Control Heating Power: 600W
  • Auxiliary Heating Power: 1000W
  • Stirring Motor Speed: 1400RPM
  • Sample Stir Rate: (1000±50) r/min
  • Sample Testing Positions: Four positions
  • Ambient Temperature: Room temperature ~ 35°C
  • Relative Humidity: ≤85%
  • Maximum Power Consumption: 1800W
  • Dimensions: 580mm × 320mm × 600mm
Standard Accessories
No. Item Unit Quantity Remarks
1 Beaker holder Piece 4
2 Sample stirring rod Piece 4
3 Sample rod handle Piece 4
4 Sample rod Piece 4
5 Beaker cover Piece 4
6 Beaker Piece 6
7 Thermometer 0 ~ 100 °C, scale division 0.5 °C Piece 1
8 15 A fuse (Φ5×20) Piece 2
9 Temperature sensor Piece 1
10 Power supply wire (250 V 10 A) Piece 1
11 Stopping ring for thermometer (1#) Piece 4
12 Bath cover Piece 4
