BD-D664-264B Automatic Total Acid Number Tester
BD-D664-264B Automatic Total Acid Number Tester
BD-D664-264B Automatic Total Acid Number Tester
BD-D664-264B Automatic Total Acid Number Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D664-264B
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Acid number measuring range :
≥0.05 mgKOH/g
Potentiometric measurement :
0 ~ 1800.0mV
Capacity of burette :
10mL
Minimum titration volume :
0.02mL
Precision of burette :
±0.1%F•S
Power supply :
AC(220±11)V , 50±1Hz
Description

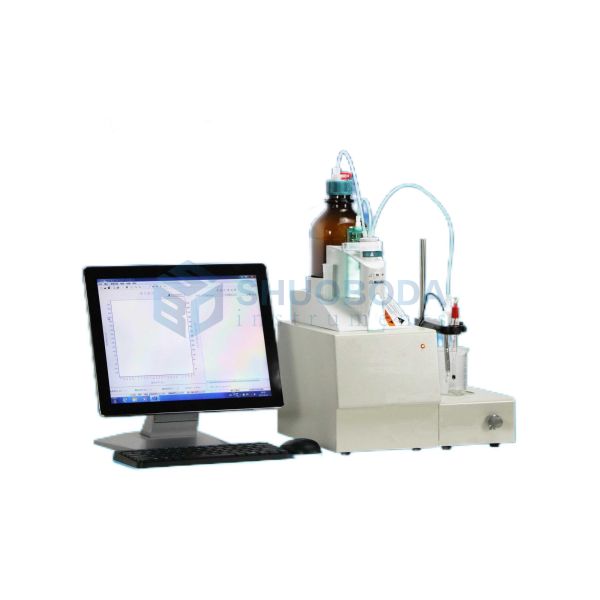

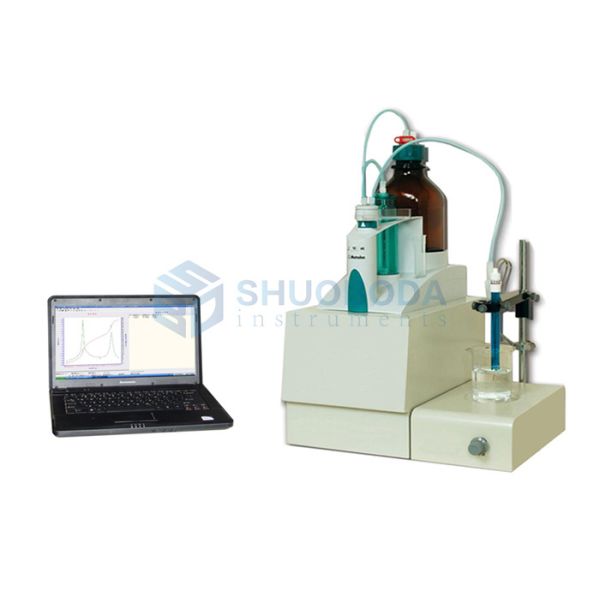

BD-D664-264B Automatic Total Acid Number Tester
The BD-D664-264B Automatic Total Acid Number Tester uses the potentiometric titration method to accurately measure acid values in various petroleum products. By recording electrode potential and titration volume, it determines the equivalence point and corresponding titrant volume to calculate sample pH values.
This instrument is specifically designed for detecting acid values in transformer oil, turbine oil, anti oil, diesel, gasoline, and other petroleum products. Widely used in chemical, power, and oil industries, it serves as an ideal solution for current meter acid number testing of petroleum products.
Standards Compliance: GB/T264, GB7599-87, GB/T7304-2000, GB/T 18609-2001, ASTM D664-2011
Key Features
  • Special operation software with English Windows interface for easy operation
  • High resistance input ensures stable and reliable signal transmission
  • Real-time display of titration curves and test results
  • Test results can be saved as Word documents
  • Process data can be exported as Excel files
  • Comprehensive printing capability for curves, results, and data
  • Automatic liquid compensation and value setting
Technical Specifications
  • Acid number measuring range: ≥0.05 mgKOH/g
  • Potentiometric measurement: (0 ~ 1800.0)mV
  • Burette capacity: 10mL
  • Minimum titration volume: 0.02mL
  • Burette precision: ±0.1%F•S
  • Instrument precision: Meets relevant standard test methods
  • Power supply: AC(220±11)V, 50±1Hz
  • Ambient temperature: 5°C~35°C
  • Relative humidity: ≤80%
  • Dimensions: 350mm*280mm*178mm (PC not included)
  • Net weight: 14Kg (PC not included)
Standard Accessories
No. Item Unit Qty Remarks
1 PC Set 1 Brand commercial PC machine (also available for user selection)
2 Magnetic stirrer Set 1
3 Stirrer pole Piece 1
4 Stirrer electrode holder Piece 1
5 Magnetic stirrer Piece 4
6 RS232 serial communication lines Piece 1
7 Shorting Plug Piece 2
8 Fuse (1.5 ~ 2A) Piece 2 Load power outlets
9 231 glass pH electrode Piece 2
10 802 saturated mercury electrode Piece 2
11 Titration exchange unit (10mL) Set 1 Imported with original packaging
12 Stirrer power supply (9V) Piece 1
13 5ml (or 10ml) Syringe Piece 1
14 9 special long needle injection Piece 1
