Resolution pH 0001pH BD 8J automatic potentiometric titrator equipped with electronic unit input current not exceeding 1 times 10 to the power of negative 12 amperes high precision
Resolution pH 0001pH BD 8J automatic potentiometric titrator equipped with electronic unit input current not exceeding 1 times 10 to the power of negative 12 amperes high precision
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-8J
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measuring range :
mV: -2000.0～2000.0mV pH: 0～20.000pH
Resolution :
mV: 0.1mV; pH: 0.001pH
 Electronic unit error :
mV: ±0.03%FS± 1 word pH: ±0.001pH ± 1 word
Electronic unit input impedance :
≥3×1012Ω
Electronic unit input current :
≤ 1×10-12A
Electronic unit stability :
±0.3 mV± 1 word/8h
Description

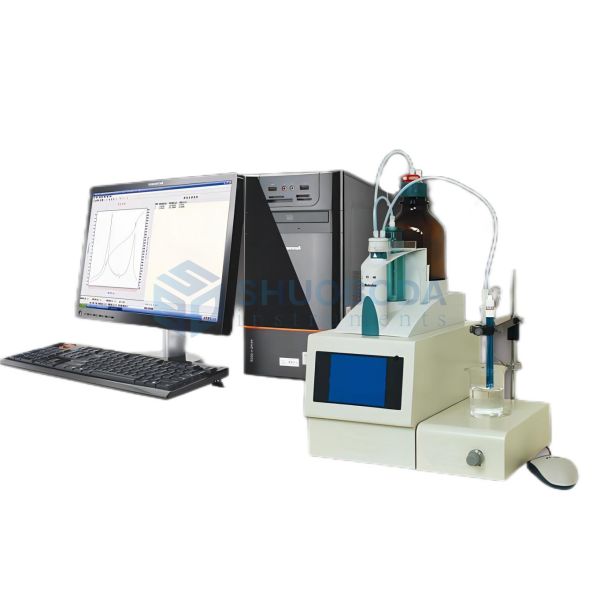

BD-8J Automatic Potentiometric Titrator
The BD-8J automatic potentiometric titrator adopts a mechatronic structure design. The instrument is completely controlled by a computer (PC) to automate the titration process. Different electrodes can be used for various titration methods including acid-base neutralization, precipitation, redox, complex titration, and non-aqueous titration applications.
Technical Parameters
Parameter Specification
Measuring Range mV: -2000.0～2000.0mV
pH: 0～20.000pH
Resolution mV: 0.1mV
pH: 0.001pH
Electronic Unit Error mV: ±0.03%FS± 1 word
pH: ±0.001pH ± 1 word
Input Impedance ≥3×10¹²Ω
Input Current ≤ 1×10⁻¹²A
Electronic Unit Stability ±0.3 mV± 1 word/8h
Buret Volume 10mL
Minimum Sending Volume 0.001mL
Burette Capacity Tolerance ±0.010mL
Infusion/Replenishment Speed 55±5s/full tube
End Point Repeatability Error ≤0.2% (0.1mol/L HCL titration 0.1mol/L NaOH)
Key Features
  • Universal microcomputer with specialized software featuring English window interface, mouse and keyboard operation
  • Real-time display of potential curve (E-V), first-order derivative curve (dE/dV), titration volume (V), electrode potential (E)
  • Comprehensive data browsing and processing with extensive storage of titration curves and results
  • Experimental data, graphics, and results can be saved as Word documents for reporting
  • Automatic printing of curves, results, and titration process data
  • Multiple titration modes including dynamic equivalence point, isovolumetric equivalence point, and preset endpoint titration
  • Titration curves can be moved and enlarged for precise result correction
  • Fully automatic endpoint identification with support for multi-endpoint titration
  • Extensive storage of titration method templates with editing capabilities
  • High-precision manual endpoint deletion or addition function
  • Automatic cleaning, automatic fluid replenishment, and automatic fixed-value fluid replenishment
