Measurement accuracy when acid value ≥0.1 ±0.05 mgKOHg automatic acid value tester BD-T264-A40 featuring measuring range 0.0001 to 0.9999 mgKOHg for testing
Measurement accuracy when acid value ≥0.1 ±0.05 mgKOHg automatic acid value tester BD-T264-A40 featuring measuring range 0.0001 to 0.9999 mgKOHg for testing
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-T264-A40
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Working power supply :
AC220V±10% 50Hz
Maximum power consumption :
﹤100W
Measuring range :
0.0001～0.9999mgKOH/g
Minimum resolution :
0.0001 mgKOH/g
Measurement accuracy :
±0.02 mgKOH/g when acid value <0.1; When acid value ≥0.1 ±0.05 mgKOH/g
Repeatability :
0.004 mgKOH/g
Description

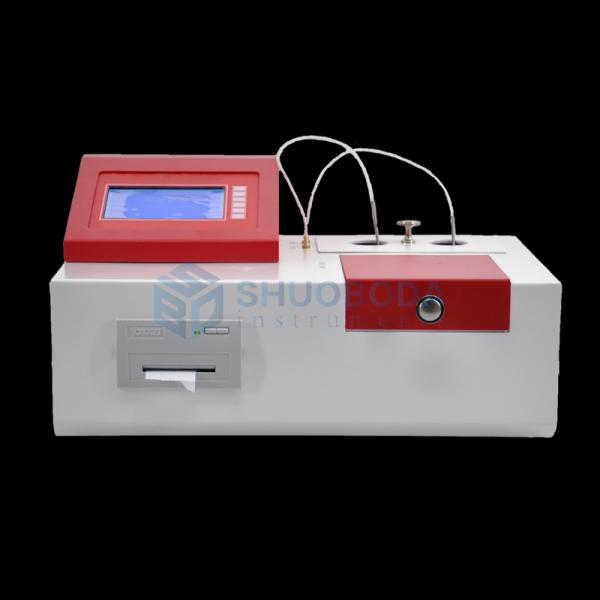

BD-T264-A40 Automatic Acid Value Tester
Product Overview

The BD-T264-A40 automatic acid value tester is designed for acid value analysis and measurement of samples including transformer oil, turbine oil, and anti-fuel oil. This instrument integrates mechanical, optical, and electronic technologies, utilizing a microprocessor to automatically perform functions such as multi-sample switching, titration, titration endpoint determination, and printing of measurement results. The system offers stable performance, high reliability, and advanced automation, making it suitable for applications in power generation, chemical processing, environmental protection, and petroleum industries.

Compliance Standards

Compatible with: GB/T264, GB/T258

Key Features
  • Large LCD screen with Chinese menu interface and unmarked buttons
  • Automatic cup changing, automatic detection, and printing of test results (optional automatic timed heating function for high-viscosity lubricants)
  • Capable of testing six oil samples simultaneously
  • Utilizes neutralization method principle with microprocessor control to automatically complete liquid addition, titration, stirring, and endpoint determination at room temperature
  • LCD screen displays measurement results with printing capability; complete testing process takes approximately 4 minutes
  • Special reagent bottles prevent extraction and neutralization liquids from contacting air, avoiding solvent evaporation and CO₂ interference
Technical Specifications
Working Power Supply AC220V±10% 50Hz
Maximum Power Consumption <100W
Measuring Range 0.0001～0.9999 mgKOH/g
Minimum Resolution 0.0001 mgKOH/g
Measurement Accuracy ±0.02 mgKOH/g (acid value <0.1)
±0.05 mgKOH/g (acid value ≥0.1)
Repeatability 0.004 mgKOH/g
Ambient Temperature 5℃～40℃
Relative Humidity ≤85%
Measurement accuracy when acid value ≥0.1 ±0.05 mgKOHg automatic acid value tester BD-T264-A40 featuring measuring range 0.0001 to 0.9999 mgKOHg for testing
