BD-D1078-6536D Automatic Distillation Apparatus
BD-D1078-6536D Automatic Distillation Apparatus
BD-D1078-6536D Automatic Distillation Apparatus
BD-D1078-6536D Automatic Distillation Apparatus
Specifications
Certification :
ISO/CE
Price :
Negotiable
Supply Ability :
500 sets/month
Temperature range of bath: :
0 ~ 60°C
Place of Origin :
China
Temperature control precision of receiving chamber :
±1°C
Delivery Time :
5~8 working days
Power supply :
AC(220±10%) V, 50Hz
Payment Terms :
T/T,L/C
Temperature control precision of bath :
±0.5°C
Brand Name :
SHUOBODA
Packaging Details :
Plywood packing
Model Number :
BD-D1078-6536D
Temperature range of receiving chamber :
0 ~ 60°C
Distillation heater :
1000W, 24V
MOQ :
1 set
Description

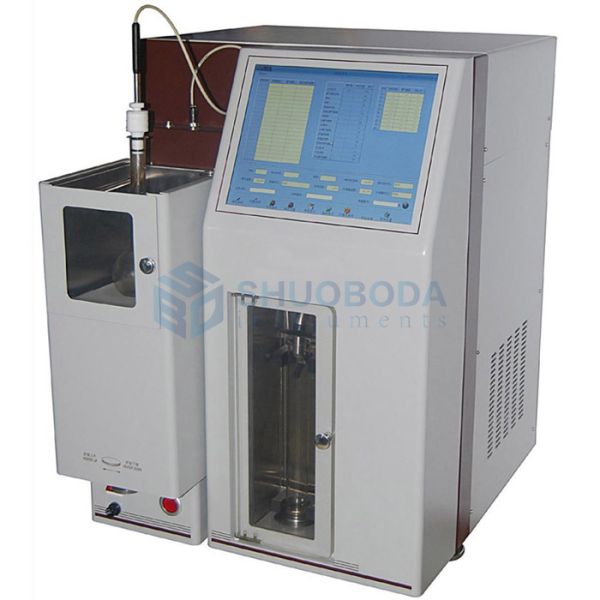

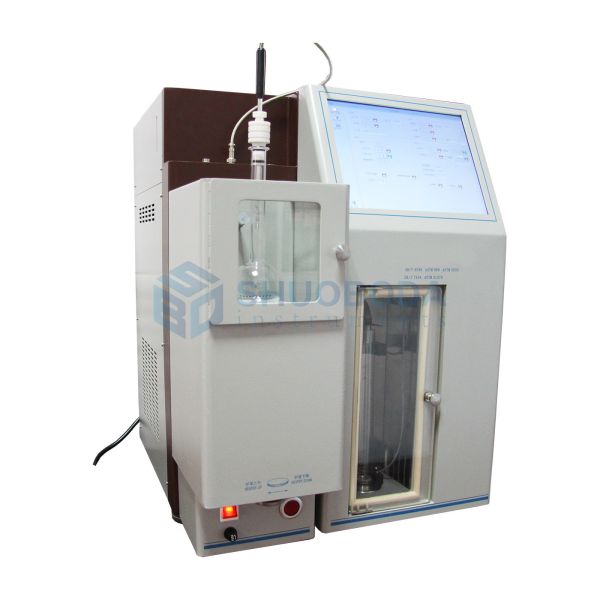

BD-D1078-6536D Automatic Distillation Apparatus

The BD-D1078-6536D Automatic Distillation Apparatus is designed and manufactured in accordance with standards GB/T 6536, GB/T 7534, ASTM D 86, ASTM D 850, and ASTM D 1078. This advanced instrument is used to determine the distillation characteristics of motor gasoline, aviation gasoline, jet fuel, diesel oil, distillate fuel, naphtha, and solvents with special boiling points. It features advanced technology with easy operation and high cost performance.

Key Features
  • Built-in microcomputer with advanced IPC technology and 12.1-inch light-touch LCD for intuitive operation
  • Intelligent SCM control for automated heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, and printing
  • Real-time display of vapor temperature curve, heater temperature curve, and distillation rate curve for immediate quality assessment
  • Imported compressor and temperature sensor with automatic liquid level tracking system for reliable, repeatable results
  • Customizable standards and distillation procedures to accommodate different oil samples and customer requirements
  • Automatic barometric pressure detection and correction to eliminate atmospheric pressure influence on test results
  • Vapor temperature calculation capability by inputting residue amount after testing
  • Anti-freezing solution in cold bath with internal circulation stirrer and liquid level sensor for optimal bath conditions
  • Integrated automatic fire-extinguishing device for enhanced safety during operation
Technical Specifications
  • Temperature range of bath: (0 ~ 60)°C
  • Temperature control precision of bath: ±0.5°C
  • Temperature range of receiving chamber: (0 ~ 60)°C
  • Temperature control precision of receiving chamber: ±1°C
  • Distillation heater: 1000W, 24V
  • Distillate liquid detection: (0 ~ 100)mL, resolution 0.01mL
  • Distillate liquid detection precision: ≤0.1mL
  • Power supply: AC(220±10%) V, 50Hz
  • Maximum power consumption: 2500W
  • Working environment: Ambient temp.(10 ~ 35)°C; RH≤80%
  • Dimension: 500mm×530mm×660mm
  • Net weight: 85kg
Standard Accessories
No. Item Unit Qty Remarks
115A fuse Φ6 × 30Piece2
2Steam temperature sensorPiece1
3Sensor positioning deviceSet1
4Oil receiving pipePiece1
5Water receiving bowlPiece1
6Condenser tube cleaning pull ropePiece1
7Condenser rubber stopperPiece2
8Condenser envelopePiece1
9Observation windowPiece1
10Flask plate (quartz) Aperture Ф38, Ф50Piece1 for each
11Fire trachea (Ф8 PU tube, L = 3m)Set1
12Power linePiece1
13Electric furnace bracket casingPiece6
14Diversion shovelPiece2
15Cylinder 100mlPiece1
16Cylinder basePiece1
17Flask (quartz) 125mlPiece1
18Cylinder 5mLPiece1
19Ο type ring Ф21.5 × 2.65Piece2Used for cylinder base
20Ο type ring Ф12 × 2.65Piece2For the sensor positioning device
21Micro-printer (data cable, power line)Set1
