BD-D1401-255 Distillation Tester
BD-D1401-255 Distillation Tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D1401-255
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Power supply :
AC(220±10%)V,50Hz
Dimension :
710mm×240mm×470mm
Maximum power consumption :
1100W
Working environment :
RT-10~+35°C. Relative humidity ≤85%
Thermometer :
0~360°C,division value 1°C
Condensate tank :
Made of stainless steel material. The condenser pipe is made of brass and diameter is Ø16mm×1mm.
Description

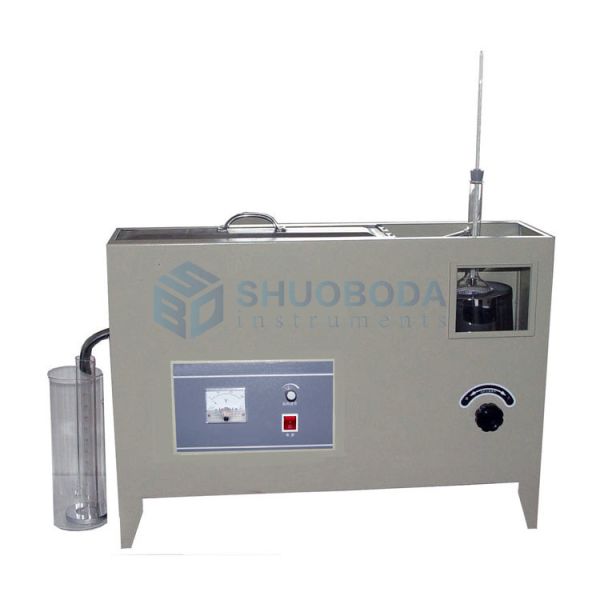

BD-D1401-255 Distillation Tester

The BD-D1401-255 Distillation Tester is designed and manufactured in compliance with National Standard GB/T255 "Test Methods for Distillation Characteristics of Petroleum Products" and Industry Standard SH/T 0121 "Technical Condition for Petroleum Products Distillation Tester". This instrument is suitable for determining the distillate characteristics of engine fuel, solvent oil, and light petroleum products.

Main Technical Features
  • All-in-one machine design with rational layout and easy operation
  • Heating furnace features easy and stable vertical adjustment
  • Stainless steel water chamber for excellent corrosion resistance
  • Continuously adjustable heating power via electronic voltage regulator
Technical Parameters
  • Power Supply: AC(220±10%)V, 50Hz
  • Distillation Flask: Hard glass construction with heat resistance exceeding 500°C; Ball diameter: φ69mm±1mm; Neck diameter: φ16mm±1mm; Branch pipe to neck angle: 75°±3°
  • Thermometer: Range (0~360)°C, division value 1°C
  • Condensate Tank: Stainless steel body with brass condenser pipe (Ø16mm*1mm)
  • Heat Adjustment: Integrated heating device, thermal control circuit and control panel; 1000W power with continuous heating rate adjustment
  • Measuring Cylinder & Weight: 10ml and 100ml cylinders; Carbon steel weight prevents cylinder floating
  • Working Environment: Room temperature -10~+35°C; Relative humidity ≤85%
  • Maximum Power Consumption: 1100W
  • Dimensions: 710mm*240mm*470mm
Standard Accessories
No. Item Unit Quantity Remarks
1 Distillation flask (125ml) Piece 1
2 Thermometers (0 ~ 360 °C, each scale division is 1.0 °C) Piece 1
3 Glass cylinder (100 ml, 10 ml) Piece 1 for each
4 100*240 Glass cylinder Piece 1
5 Foundry weight Block 1
6 Rubber stopper (8 #, 4 #) Piece 2 for each
7 Stopping ring for thermometer (1#) Piece 4
8 6A fuse (Ф5 * 20) Piece 2
9 PTFE TAPE Roll 1
10 Silicon carbide gasket (30,50, band gap) Block 1 for each
