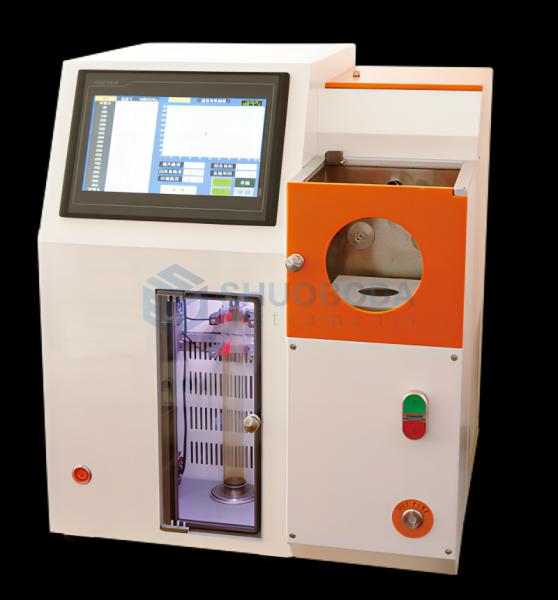

BD-D86-003ZI Single column automatic atmospheric distillation tester
BD-D86-003ZI Single column automatic atmospheric distillation tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D86-003ZI
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Temperature measurement range :
RT~ 400℃, Resolution: 0.1℃
Water bath constant temperature range :
0~60℃ (imported compressor refrigeration)
Peripheral temperature of internal recycling measuring cylinder :
5～50℃
Distillation rate :
4～5ml/min
Volume detection range :
0～150ml
Resolution :
0.1ml
Description
BD-D86-003ZI Single Column Automatic Atmospheric Distillation Tester
Applicable Standards
GB/T6536, ASTM D86, GB/T255, GB/T7534, GB/T3146
Performance Characteristics
Intelligent heating management system ensures that the distillation rate meets the requirements of the experimental method.
User-Configurable Recording Points
  • Users can set and record the recovery volume corresponding to the temperature
  • Users can set and record the temperature corresponding to the recovery volume
  • Automatically records recording points specified by national standards
Four Experiment End Methods
  • End Point: End the experiment when the end point is detected
  • Dry Point End: End the experiment when dry point is detected
  • Temperature End: End the experiment according to the temperature value set by the user and print output
  • Volume End: End the experiment according to the volume value set by the user and print output
Atmospheric pressure is automatically detected, with automatic over-temperature protection.
Technical Specifications
Parameter Specification
Temperature Measurement Range Room temperature ~ 400℃ (Resolution: 0.1℃)
Water Bath Constant Temperature Range 0~60℃ (imported compressor refrigeration)
Peripheral Temperature of Internal Recycling Measuring Cylinder 5～50℃
Distillation Rate 4～5ml/min
Volume Detection Range 0～150ml (Resolution: 0.1ml)
Temperature Measuring Element PT100 (original temperature measuring sensor from German JUMO)
Display 1024×600 resolution, true color large screen Chinese character display
Heating Method Low voltage DC heating system
Printing Embedded micro printer
Power Consumption Less than 1kW
Refrigeration Method Compressor refrigeration
Ambient Temperature 15～25℃
Operation Method Program starts, simple operation
System Management Supports laboratory LIMS system
