BD-D1533-2122C petroleum product trace moisture tester
BD-D1533-2122C petroleum product trace moisture tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D1533-2122C
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
Negotiable
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measuring range :
0.0001% (1ppm) to 100%
Sensitivity threshold :
0.01ugH2O
Accuracy :
±2μg for 5μg~1mg, 0.2% for above 1mg
Display mode :
7.0-inch LCD color large screen touch display
Test results :
display on the screen and automatic printing by the printer
Working power supply :
AC (220±10%) V, (50±5%) Hz
Description

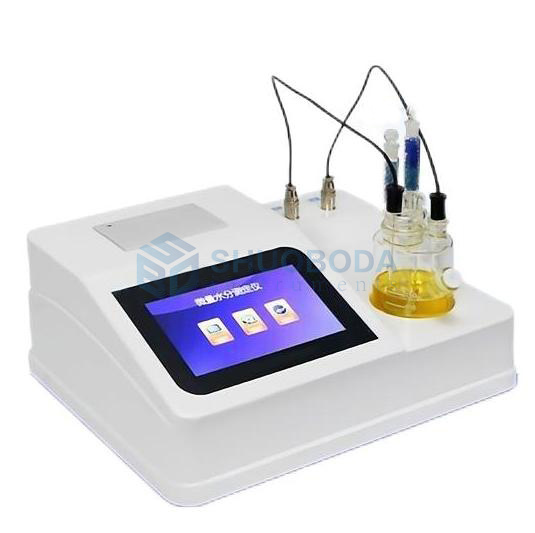

BD-D1533-2122C Petroleum Product Trace Moisture Tester
The BD-D1533-2122C petroleum product trace moisture tester is designed and manufactured in accordance with GB/T 7600 "Determination of Moisture Content of Transformers in Operation (Coulomb Method)" standards. This precision instrument measures trace moisture content in liquid petroleum products and is also compliant with SH/T 0246 "Determination of Moisture Content in Light Petroleum Products (Electrometry)" industry standards.
Featuring advanced microcomputer control technology, this analyzer offers rapid analysis, high precision, LCD screen display, automatic printing, and menu selection functions. It represents a comprehensive, user-friendly, fully automated measurement and analysis solution.
Main Technical Features
  • Micro-analysis capability for low water content samples with high sensitivity
  • Integrated imported 0.5μL sampler for fast and accurate calibration
  • Extensive data storage capacity for over 20,000 test results
  • Advanced alternating balance isolation detection technology for faster, more accurate, and stable measurements
  • PWM pulse width modulation electrolysis circuit reducing overall power consumption
  • Intuitive touch screen interface with user-friendly interaction
  • Real-time clock display with power-off retention functionality
  • Embedded thermal printer with 36-character Chinese output for quiet, fast, and clear printing
  • Program-controlled I/O technology for direct stirring speed adjustment
  • Multiple formula selections with automatic unit conversion (μg, mg/L, ppm, %) and memory
Main Technical Specifications
  • Measuring range: 0.0001% (1ppm) to 100%
  • Sensitivity threshold: 0.01μg H₂O
  • Accuracy: ±2μg for 5μg~1mg, 0.2% for above 1mg
  • Display: 7.0-inch LCD color touch screen
  • Output: Screen display and automatic printing
  • Power supply: AC (220±10%)V, (50±5%)Hz
  • Power consumption: ≤60W
  • Operating environment: Temperature 5℃~40℃; Relative humidity <85%
  • Dimensions: 385mm*290mm*280mm (L*W*H)
  • Net weight: Approximately 8kg
