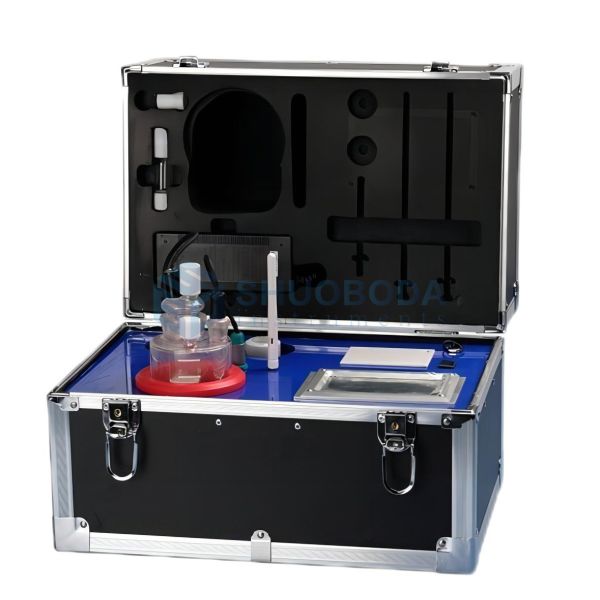

BD-7600-A71 Portable Trace Moisture Analyzer
BD-7600-A71 Portable Trace Moisture Analyzer
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-7600-A71
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measuring range :
3ug～200mg
Resolution :
0.1ug
Electrolysis current :
0～400Ma
Standby power consumption :
4W
Maximum power consumption :
20W
Working power supply :
AC220V±10%, 50HZ
Description
BD-7600-A71 Portable Trace Moisture Analyzer
The BD-7600-A71 Portable Trace Moisture Analyzer utilizes Karl Fischer microcoulomb electrometry for high testing accuracy and cost-effective operation. This instrument reliably measures trace moisture in liquid, gas, and solid samples with exceptional sensitivity, precision, and reproducibility. Featuring low power consumption and energy-saving design, it serves diverse applications in petroleum, chemical, power, commodity inspection, scientific research, and environmental protection sectors.
Compliance Standards
GB/T11133, GB/T11146, GB/T7600, GB/T6023, GB/T6283, GB/T606
Key Features
  • Color LCD display with intuitive touch screen control
  • Balance point drift compensation circuit for enhanced accuracy
  • WIFI wireless connectivity for convenient data transmission and storage on mobile devices and PCs
  • Time-stamped historical record storage capacity of 10,000 entries
  • Intelligent self-test function with electrode open circuit and short circuit alarm
  • Screen protection function to extend LCD lifespan
  • Thread-locking electrolytic cell interface design for superior sealing and leak-proof portability
  • 24V10Ah lithium battery pack providing over 10 hours of continuous operation
Technical Specifications
Measuring Range 3μg to 200mg
Accuracy ±3μg for 3μg-1000μg range; ±0.3% for volumes exceeding 1000μg
Resolution 0.1μg
Electrolysis Current 0-400mA
Standby Power Consumption 4W
Maximum Power Consumption 20W
Power Supply AC220V±10%, 50Hz
Dimensions 370*240*180mm
Weight Approximately 5kg
