BD-A52 liquid hydrocarbon flash vaporization sampling injector
BD-A52 liquid hydrocarbon flash vaporization sampling injector
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-A52
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Mass flow measurement range available :
50ML, 100ML, 1L, 2L, 10L
Mass flow meter control flow rate accuracy :
0.1L/min, depending on the range (adjustable)
Mass flow meter zero point :
adjustable
Temperature setting :
0 ~230°C, adjustable
Temperature control accuracy :
±0.1℃
Overall dimensions :
520mmX360mmX260mm
Description

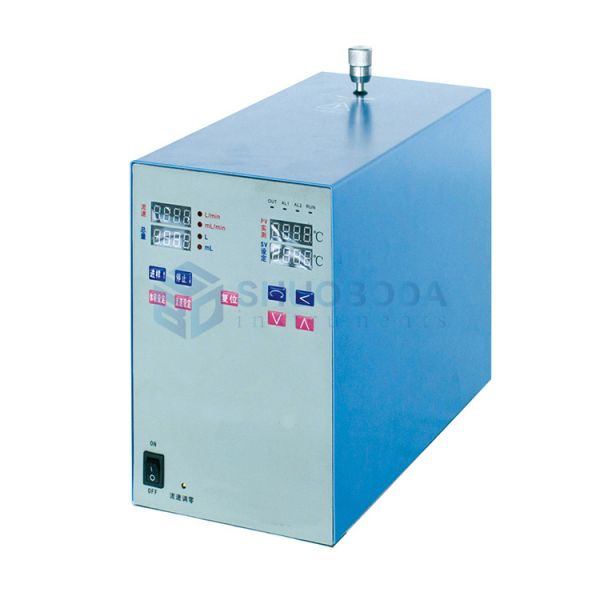

BD-A52 Liquid Hydrocarbon Flash Vaporization Sampling Injector
The BD-A52 liquid hydrocarbon flash vaporization sampling injector complies with GB/T3727-2003 "Determination of Trace Water in Industrial Ethylene and Propylene" and GB/T6023-2008 "Determination of Trace Water in Industrial Butadiene" standards using the Karl Fischer Coulomb Method.
This instrument performs pretreatment before analysis of liquefiable gases such as liquid hydrocarbons, converting liquid samples into gaseous substances with equal composition, constant temperature, constant pressure, and controllable flow rate for accurate measurement.
Instrument Applications
  • Analysis of trace water in ethylene, propylene, and butylene isomers, used with coulometric trace water analyzers or dew point meters
  • Analysis of trace oxygen in various industrial olefins, used with trace oxygen analyzers
  • Analysis of trace carbon monoxide and carbon dioxide in industrial olefins, using gas chromatography
  • Liquid hydrocarbon composition analysis, used with gas chromatographs
  • Analysis of trace sulfur, arsenic, and other substances in liquid hydrocarbons
  • Analysis of trace water in various refrigerants and SF6
Technical Specifications
Mass flow measurement range 50ML, 100ML, 1L, 2L, 10L
Mass flow meter control flow rate accuracy 0.1L/min, depending on range (adjustable)
Mass flow meter zero point Adjustable
Temperature control range 0 to 230°C, adjustable
Temperature control accuracy ±0.1℃
Volume setting Freely settable between 0 and 9.998L; 9.998L setting enables free volume accumulation with unlimited injection capability
Overall dimensions 520mm × 360mm × 260mm
Weight Approximately 5kg
