Double column automatic atmospheric distillation tester
Double column automatic atmospheric distillation tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D86-003ZII
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Temperature measurement range :
room temperature ~ 400℃
Resolution :
0.1℃
Water bath constant temperature range :
0~60℃ (imported compressor refrigeration)
Peripheral temperature of internal recycling measuring cylinder :
5～50℃
Distillation rate :
4～5ml/min
Volume detection range :
0～150ml, Resolution: 0.1ml
Description

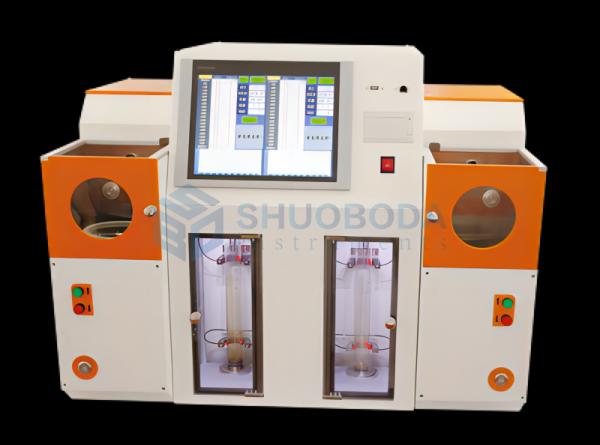

Double Column Automatic Atmospheric Distillation Tester
The BD-D86-003ZII Double Column Automatic Atmospheric Distillation Tester is a sophisticated laboratory instrument designed for precise distillation analysis in industrial and manufacturing applications.
Applicable Standards
GB/T6536, ASTM D86, GB/T255, GB/T7534, GB/T3146
Performance Characteristics
  • Independent operation: Each column can conduct experiments separately
  • Intelligent heating management system ensures distillation rate compliance with experimental method requirements
  • User-configurable recording points for customized data collection
User-Settable Recording Points
  • Record recovery volume corresponding to specific temperatures
  • Record temperature corresponding to specific recovery volumes
  • Automatic recording of standard national specification points
Four Experiment End Methods
  • End Point: Experiment concludes when endpoint is detected
  • Dry Point End: Experiment concludes when dry point is detected
  • Temperature End: Experiment concludes at user-set temperature with printed output
  • Volume End: Experiment concludes at user-set volume with printed output
The system features automatic atmospheric pressure detection and includes over-temperature protection for safe operation.
Technical Specifications
Parameter Specification
Temperature Measurement Range Room Temperature ~ 400℃ (Resolution: 0.1℃)
Water Bath Constant Temperature Range 0~60℃ (Imported Compressor Refrigeration)
Measuring Cylinder Peripheral Temperature 5～50℃
Distillation Rate 4～5ml/min
Volume Detection Range 0～150ml (Resolution: 0.1ml)
Temperature Measuring Element PT100 (Original German JUMO Sensor)
Display 1024*600 Resolution True Color Screen with Chinese Characters
Heating Method Low Voltage DC Heating System
Printing Embedded Micro Printer
Power Consumption Less than 1kW
Refrigeration Method Compressor Refrigeration
Ambient Temperature 15～25℃
Operation Method Program Start with Simple Operation
System Management Laboratory LIMS System Support
