BD-T265-A10 kinematic viscometer
BD-T265-A10 kinematic viscometer
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-T265-A10
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measuring range :
0-10000mm2/s
Temperature control setting :
room temperature ~99.9℃
Quantity of capillary tubes :
4
Constant temperature accuracy :
±0.1℃
Sample volume :
10ml
Heater power :
1000W
Description

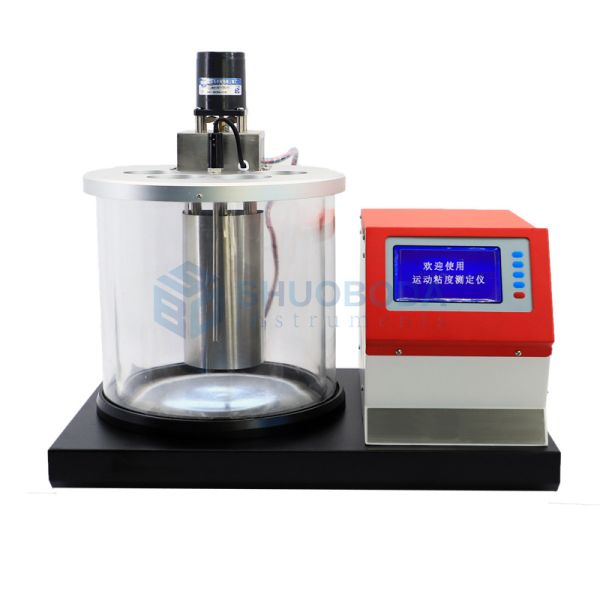

BD-T265-A10 Kinematic Viscometer
The BD-T265-A10 kinematic viscometer is designed for measuring the kinematic viscosity of liquid petroleum products. Kinematic viscosity quantifies a liquid's internal friction when flowing under gravity, calculated as the ratio of dynamic viscosity to density at the same temperature. This measurement serves as a critical physical and chemical parameter for identifying oil grade and quality. Selecting lubricants with appropriate viscosity ensures reliable operation and longevity of mechanical equipment.
Compatible Standard
GB/T265
Application Areas
  • Electric power, petroleum, chemical, environmental protection, and scientific research sectors
  • Petroleum products requiring measurement of movement characteristics
Instrument Features
  • Comprehensive system with PID temperature control, timer, thermostatic device, and water bath components
  • Double-layer small cylindrical constant temperature bath ensuring uniform temperature distribution and excellent temperature control
  • Chinese LCD display with intuitive menu interface for parameter input including preset temperature, date, and time
  • Advanced SSR actuator providing contactless operation, silent performance, spark-free operation, and vibration resistance for extended instrument lifespan
  • Stainless steel construction for heater, guide tube, and bath components ensuring corrosion resistance and durability
  • Integrated lighting system with optimal brightness, energy efficiency, and long service life
  • Automatic calculation of capillary constant and test time averages with high temperature control precision and accuracy
  • Automatic timing of sample movement and kinematic viscosity result calculation
  • Standard configuration includes Pinoy viscosity tube with optional Ubbelohde tube, Fennir tube, and counterflow tube
Technical Parameters
Parameter Specification
Measuring Range 0-10000mm²/s
Temperature Control Setting Room temperature ~99.9℃
Capillary Tube Quantity 4
Constant Temperature Accuracy ±0.1℃
Sample Volume 10ml
Heater Power 1000W
Working Power Supply AC220V±10% 50Hz
Ambient Temperature 5℃～40℃
Relative Humidity ≤85%
Overall Dimensions 545mm × 370mm × 500mm
Weight 18.4kg
