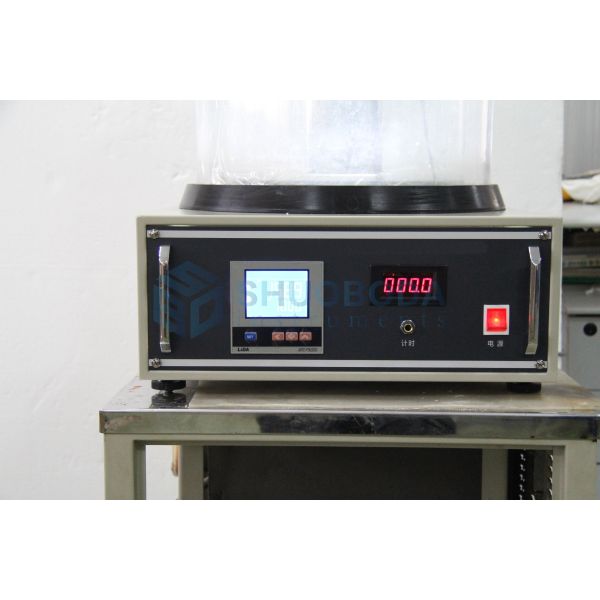

BD-D445-265D-1 Petroleum Products Kinematic Viscosity Tester, Viscometer
BD-D445-265D-1 Petroleum Products Kinematic Viscosity Tester, Viscometer
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D445-265D-1
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Power supply :
AC 220 ± 10 %, 50 Hz.
Heating power :
1000W(auxiliary heating), 600W(temperature control heating)
Stirring motor :
6 W, 1200 RPM
Temperature range :
Ambient to 100.0°C.
Temperature control accuracy :
±0.01°C.
Timer :
0.0s~999.9s
Description
BD-D445-265D-1 Petroleum Products Kinematic Viscosity Tester, Viscometer
The BD-D445-265D-1 Petroleum Products Kinematic Viscosity Tester is designed and manufactured in compliance with industry standards including SY/T5651, GB/T 265, and ASTM D445. This instrument determines the kinematic viscosity of liquid petroleum products (Newtonian liquids) by measuring the time for a volume of liquid to flow under gravity through calibrated glass capillary viscometer tubes at a constant temperature.
Key Features
  • High-precision temperature control with digital display (±0.01°C accuracy)
  • Hard glass bath with double-shell insulation cover for optimal heat retention and sample visibility
  • Compact desktop all-in-one design for convenient operation
  • Electric stirrer ensures uniform bath temperature distribution
Technical Specifications
  • Power Supply: AC 220 ± 10%, 50 Hz
  • Heating Power: 1000W (auxiliary heating), 600W (temperature control heating)
  • Stirring Motor: 6 W, 1200 RPM
  • Temperature Range: Ambient to 100.0°C
  • Temperature Control Accuracy: ±0.01°C
  • Timer Range: 0.0s~999.9s
  • Constant Temperature Bath: 20L, double shell structure
  • Operating Environment: -10°C ~ +35°C, <85% relative humidity
  • Maximum Power Consumption: 1800W
  • Capillary Viscometer Tubes: 7 Pinkevitch viscometers with inner diameters of 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, and 2.5mm
  • Dimensions: 530mm*400mm*670mm (including bath)
Note: This instrument comes standard with 7 Pinkevitch viscometer tubes. We can customize the instrument with Ubbelohde viscometer tubes or Cannon-Fenske Opaque/Routine Viscometer tubes according to customer requirements.
BD-D445-265D-1 Petroleum Products Kinematic Viscosity Tester, Viscometer
Standard Accessories
No. Item Unit Quantity
1 Capillary viscometer (7 pieces in a group) Group 1
2 Rod type mercury thermometer (0 ~ 50°C, 50 ~ 100°C, scale division all 0.1°C) Piece 1 for each
3 Plumb bob Piece 1
4 Sensor Root 1
5 Bakelite cover Piece 4
6 Capillary holder Piece 4
7 Silica gel plug (3#) Piece 2
8 10A fuse (Ф6*30) Piece 4
9 Round glass Piece 1
