BD-D445-1884B Density, Kinematic Viscosity, Viscosity Index Tester, Viscometer, 4 samples, ASTM D445 petroleum Lubricating oils
BD-D445-1884B Density, Kinematic Viscosity, Viscosity Index Tester, Viscometer, 4 samples, ASTM D445 petroleum Lubricating oils
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D445-1884B
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Capacity of bath :
Ф300mm×340mm
Temperature range :
Ambient to 100°C
Resolution :
0.01°C
Temperature precision :
±0.05°C
Timing precision :
±0.1s
Display :
5.6 inch colored LCD
Description

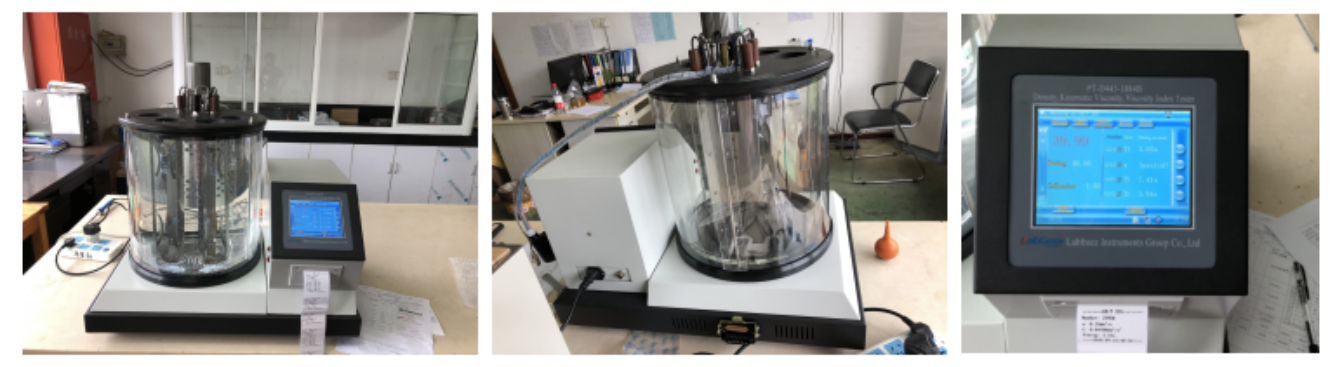

BD-D445-1884B Density, Kinematic Viscosity, Viscosity Index Tester
This advanced viscometer is designed for comprehensive testing of petroleum lubricating oils, capable of analyzing 4 samples simultaneously. Manufactured in compliance with Chinese national standards GB/T 1884, GB/T 265, and GB/T 1995, this instrument provides precise measurements for density, kinematic viscosity, and viscosity index determinations.
BD-D445-1884B Density, Kinematic Viscosity, Viscosity Index Tester, Viscometer, 4 samples, ASTM D445 petroleum Lubricating oils
Key Features
  • Multifunctional instrument for density, kinematic viscosity, and viscosity index testing
  • Microprocessor-controlled with 5.6-inch color LCD display
  • Bilingual English-Chinese menu interface with touch screen operation
  • Advanced digital control with automatic kinematic viscosity determination
  • Simultaneous testing of 4 samples (2 for viscosity, 2 for density or 4 for viscosity)
  • High-precision temperature control with 0.01°C resolution and ±0.05°C precision
  • Storage capacity for 99 capillary viscometer coefficients
Technical Specifications
  • Bath Capacity: Ф300mm × 340mm
  • Temperature Range: Ambient to 100°C
  • Temperature Resolution: 0.01°C
  • Temperature Precision: ±0.05°C
  • Timing Precision: ±0.1s
  • Display: 5.6-inch color LCD
  • Sample Capacity: 4 samples
  • Power Supply: AC (220±10%)V, 50Hz±1Hz
  • Maximum Power Consumption: 1500W
  • Working Environment: Ambient temperature 15~35°C, RH＜85%
  • Dimensions: 615mm × 500mm × 610mm
  • Net Weight: 26.5kg
Standard Accessories
No. Item Unit Quantity Remarks
1 Capillary clip (Pinkevitch) Piece 1
2 Pinkevitch capillary viscometer set Piece 7 Diameters: 0.6, 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm
3 Density test tube (500mL) Piece 1
4 Test tube holder Piece 2 Pre-installed in instrument
5 SY-05 Density meter Piece 2 10 pieces per group
6 Rod type mercury thermometer (-20 ~ 102°C) Piece 2 Scale division: 0.2°C
7 Rod type mercury thermometer (0 ~ 50°C, 50 ~ 100°C) Piece 2 Scale division: 0.1°C
8 Stopping ring for thermometer (1#) Piece 2
9 Dust cover Piece 2
10 Printer paper Set 1
11 Fuse 10A (Ф5 × 20) Piece 2
12 Power line (250V / 16A) - -
BD-D445-1884B Density, Kinematic Viscosity, Viscosity Index Tester, Viscometer, 4 samples, ASTM D445 petroleum Lubricating oils
