BD-T265-A11automatic kinematic viscometer
BD-T265-A11automatic kinematic viscometer
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-T265-A11
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Kinematic viscosity measurement range :
0.5-5000cSt (mm2/s)
Temperature control range :
RT ~ 100℃
Temperature control accuracy :
±0.1℃
Resolution :
0.01℃
Test hole :
2 holes
Sample volume :
10mL
Description

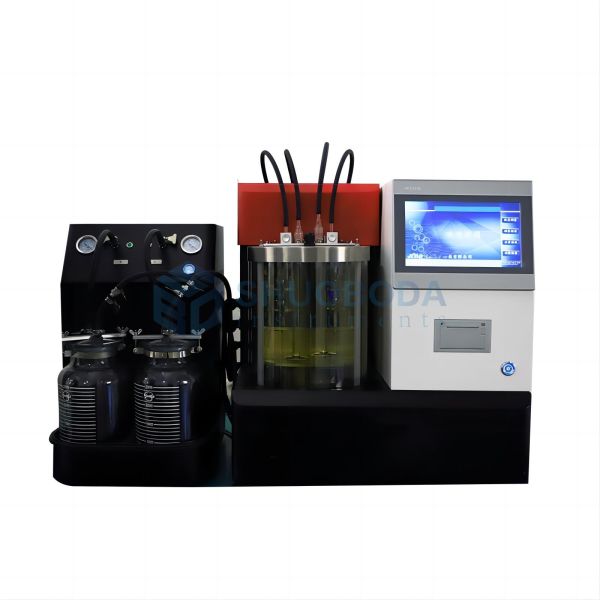

BD-T265-A11 Automatic Kinematic Viscometer
The BD-T265-A11 automatic kinematic viscometer measures the kinematic viscosity of transparent or translucent liquids with precision, including crude oil, light and heavy fuel oils, lubricating oils, additives, and waste oils. This fully automated instrument performs constant temperature control, viscosity testing, cleaning, and drying functions without operator intervention. After initial setup, personnel can leave the site while the instrument automatically completes all testing tasks.
Compliance Standards
Compatible with GB/T265 and ASTM D445 standards
Application Areas
  • Electric power, petroleum, chemical, environmental protection, and scientific research sectors
  • Petroleum products requiring measurement of kinematic viscosity characteristics
Instrument Features
  • Fully automated processes including constant temperature, sample suction, timing, calculation, printing, cleaning, and drying
  • High-speed CPU and imported temperature controller ensure high reliability with automatic storage for 1000 test data points
  • Imported 10-inch true color touch screen with full Chinese operation interface and intuitive display
  • Original imported PT100 sensor provides fast, accurate temperature measurement with capability for two asynchronous sample measurements
Technical Parameters
Kinematic Viscosity Measurement Range 0.5-5000 cSt (mm²/s)
Temperature Control Range Room temperature to 100℃
Temperature Control Accuracy ±0.1℃
Resolution 0.01℃
Test Capacity 2 samples
Sample Volume 10 mL
Display Color LCD display
Power Consumption 1500 W
Power Supply AC220V±10% 50Hz
Operating Temperature 5-40℃
Relative Humidity ≤85%
Dimensions (Host) 370mm × 300mm × 650mm
Weight Approximately 28.4 kg
