5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
Specifications
Brand Name :
SHUOBODA
Model Number :
SPD-H5O
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Feed speed :
50~5000ml/h
Drying time :
0.8s~1.0s
Inlet air temperature :
30~250℃(accuracy ±0.5℃)
Atomization structure :
Electric centrifugal atomizer
Oxygen measurement system detection range :
0-100%(accuracy 0.1)
Oxygen detection module :
Ensure that the oxygen concentration is below 3% before feeding (value can be set)
Description

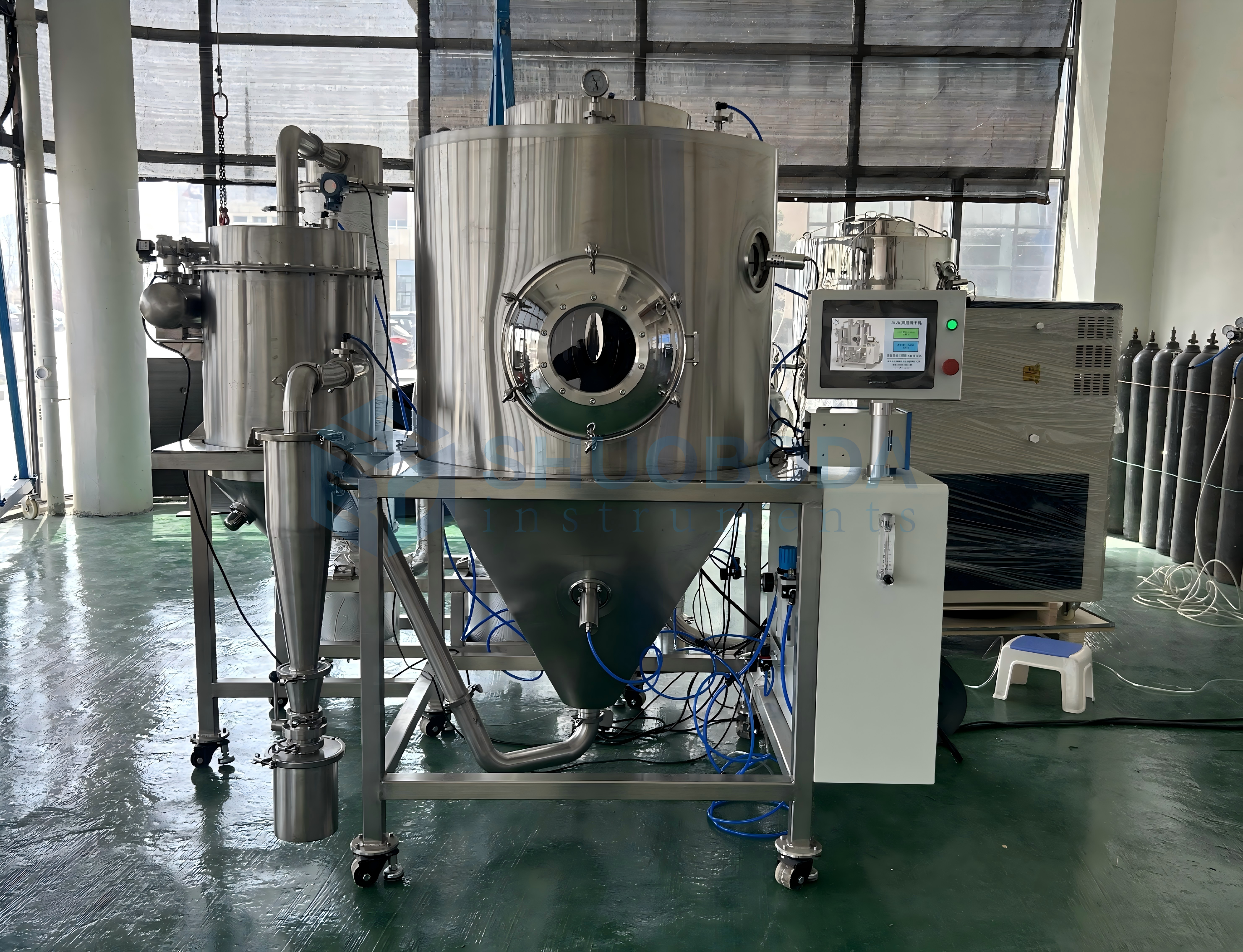

SPD-H5O Lab Inert Loop Spray Dryer for Organic Solvents & Solution Recovery, 5L

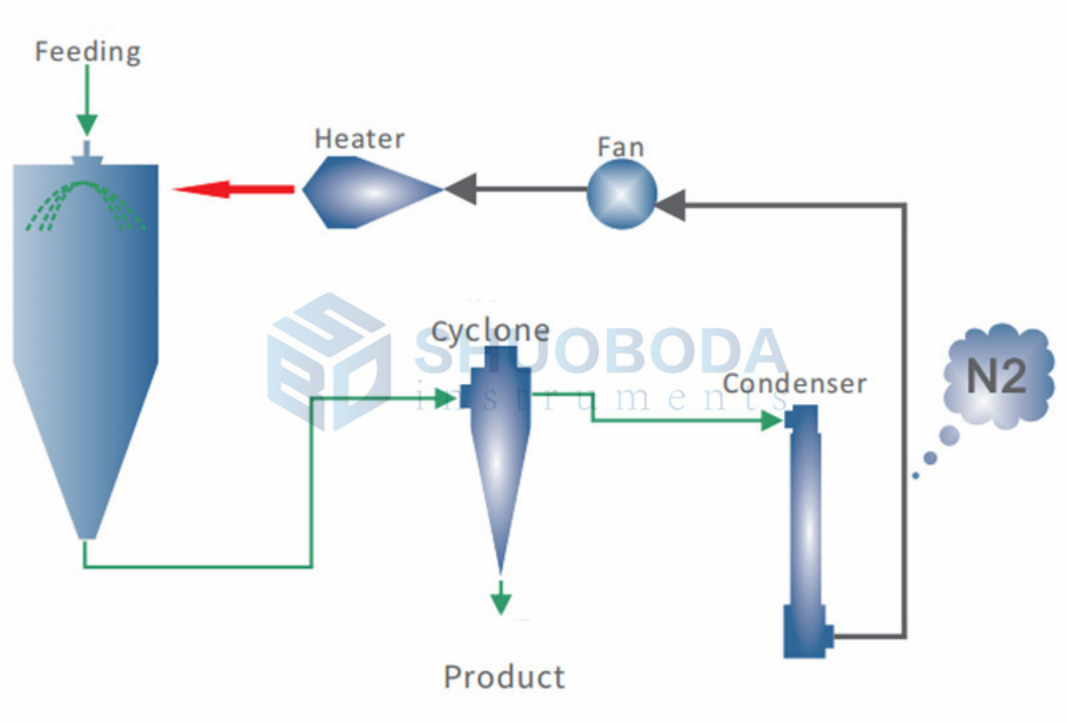

SPD-H5O Lab Inert Loop Spray Dryer is specially for organic solvents, the inert gas medium formed by circulating nitrogen is used to replace the usual air medium for spray drying. In addition to recovering products, organic solvents can also be recovered.

This closed-loop spray system is specially designed for the low flash point or slightly toxic, flammable and explosive characteristics of organic solvents. It is an ideal closed-loop dryer for laboratory small-scale to pilot-scale tests, and provides a new and reliable method for drying laboratory organic solvents, toxic materials and easily oxidizable materials.

Capacity

5000ml/h

Range

30-250℃

Gas

N2

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

Technical Parameters

No.

Item Name

Specifications

1.

Inlet air temperature

30~250℃(accuracy ±0.5℃)

2.

Minimum feed amount

50ml

3.

Drying time

0.8s~1.0s

4.

Feed speed

50~5000ml/h

5.

Atomization structure

Electric centrifugal atomizer

6.

Oxygen measurement system detection range

0-100%(accuracy 0.1)

7.

Oxygen detection module

Ensure that the oxygen concentration is below 3% before feeding (value can be set)

8.

Pressure measurement system range

0-100Kpa

9.

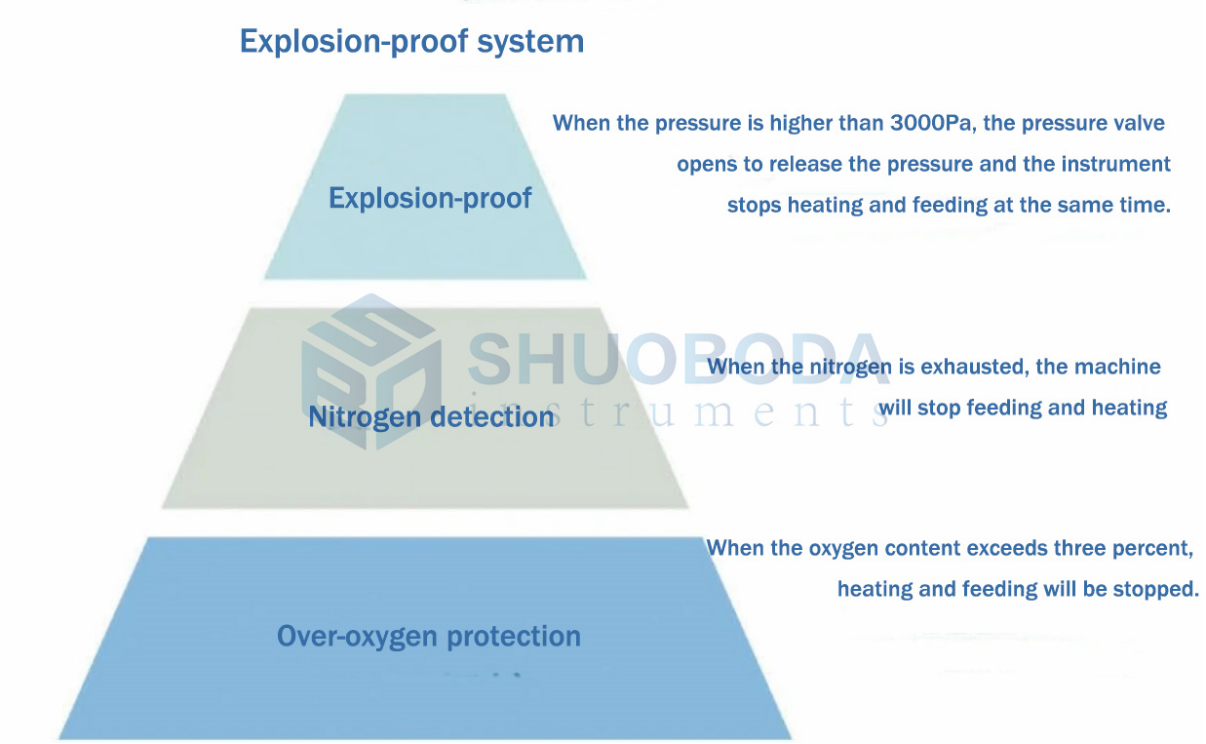

Explosion-proof module

Automatic pressure relief above 3Kpa (value can be set)

11.

Explosion-proof membrane

Automatic type

12.

Air volume adjustment

0-320 m3/h arbitrary adjustment (variable frequency fan)

13.

Heating power

10kw

14.

Overall machine size

1600*1400*2100mm

15.

Power supply

380V

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

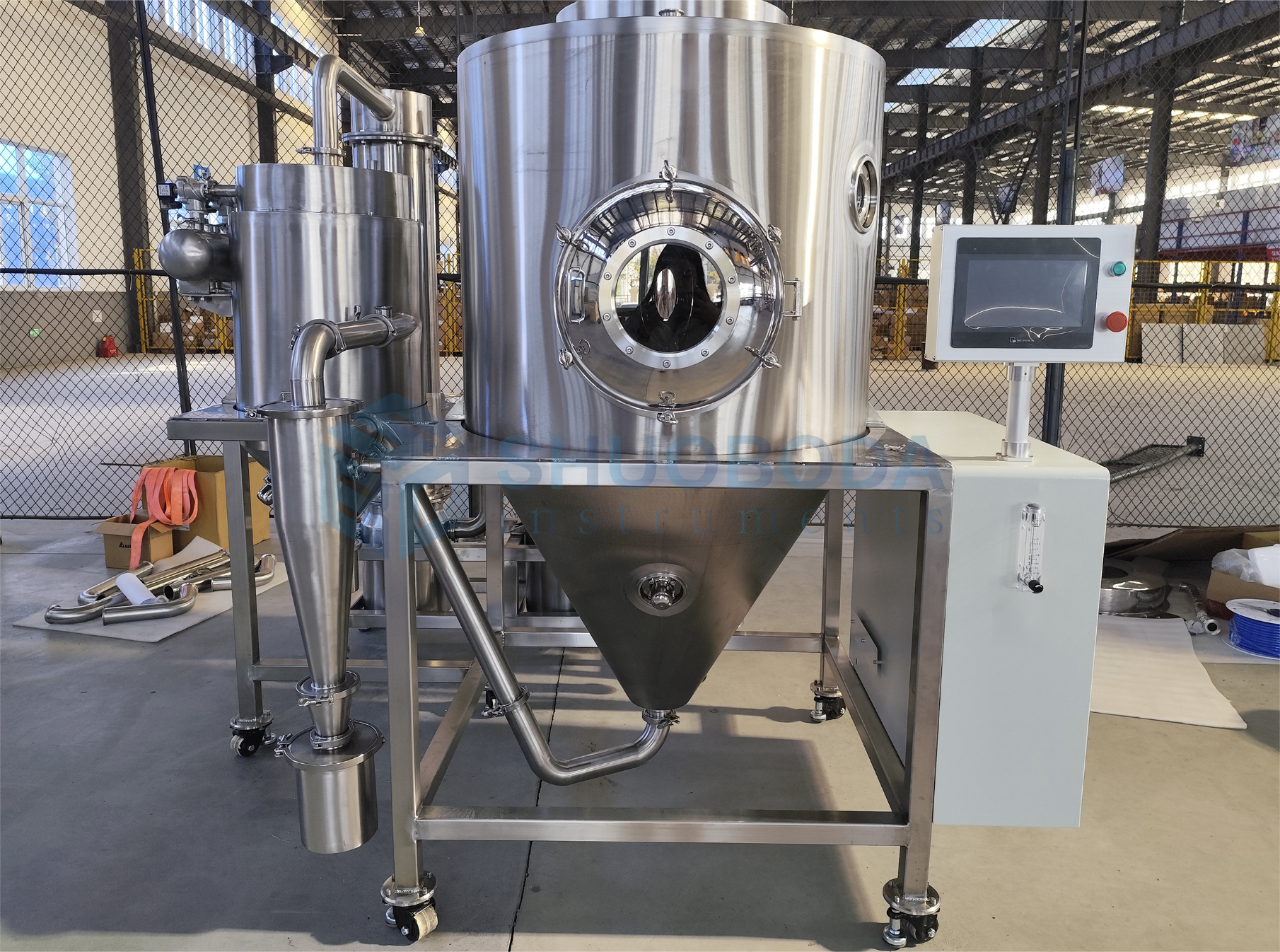

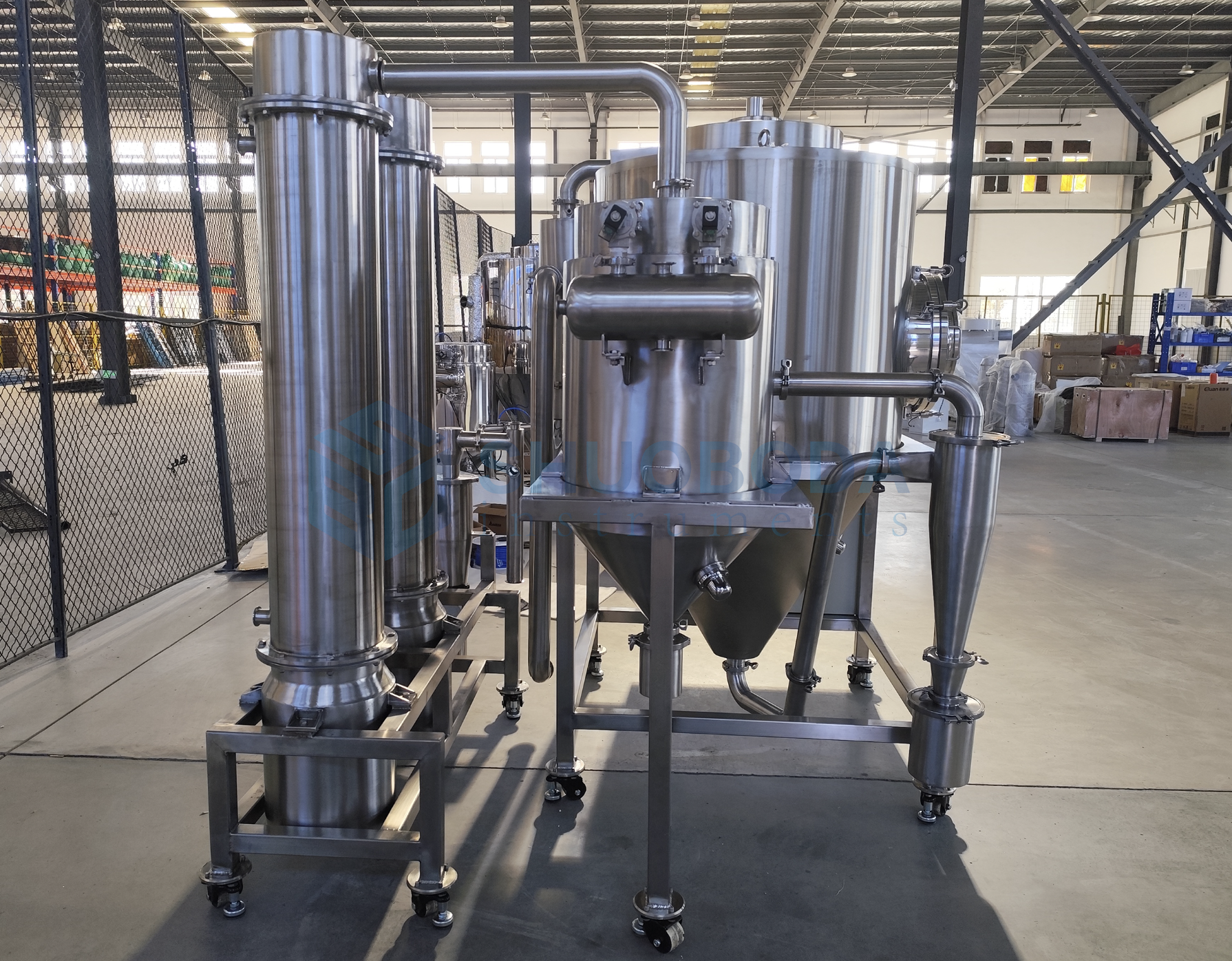

Products gallery

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery


spray dryer drying samples

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery

applications

5L Inert Loop Lab Spray Dryer For Organic Solvents & Solution Recovery
