No.

Item Name

Specifications

Basic

1.

Equipment model

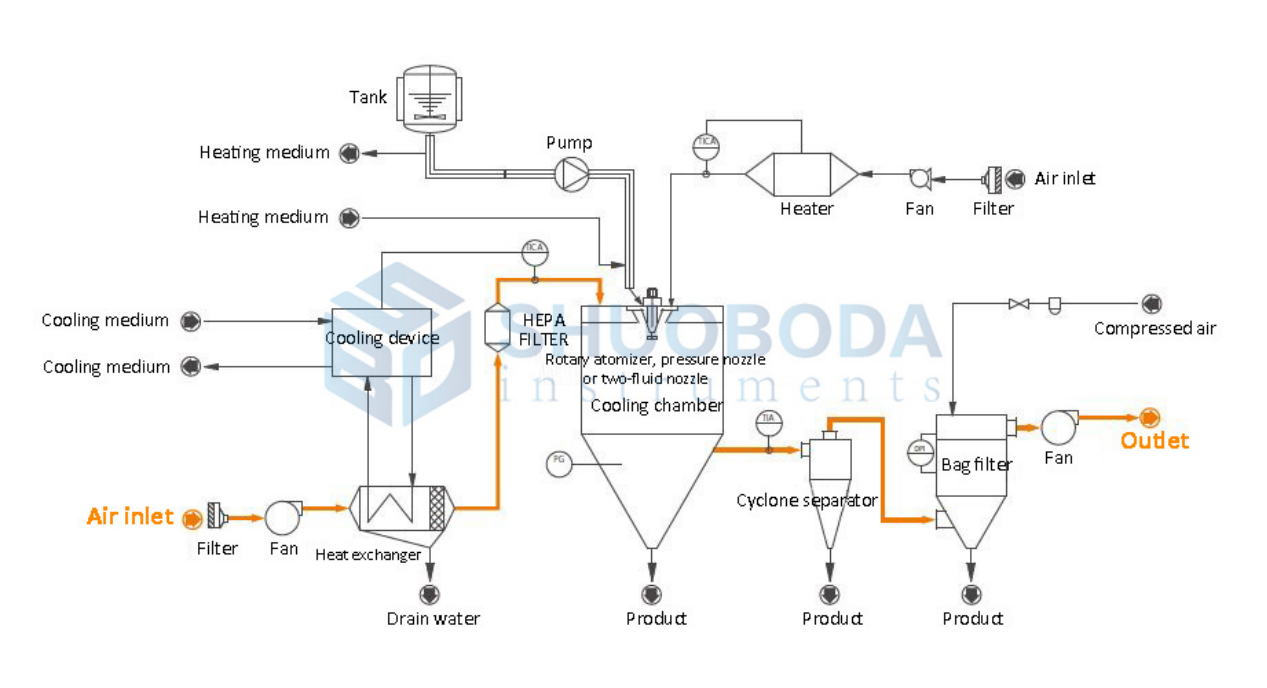

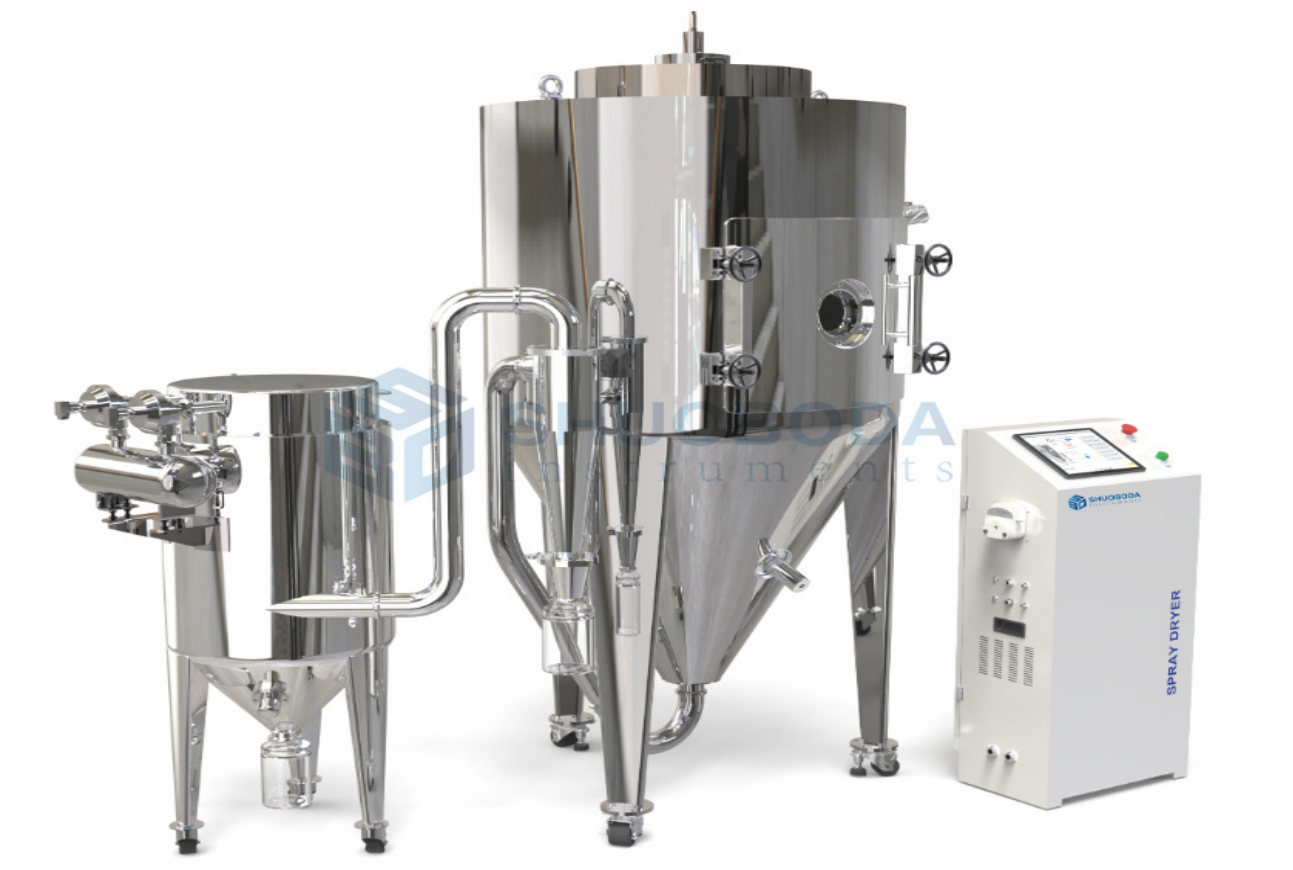

SPD-HA series

2.

Max. water evaporation

5L-30L/H

3.

Peristaltic pump

0~35L/H

4.

Inlet air temperature

30-250 ° C ± 2 ° C

5.

Air temperature

30-120 ° C ± 2 ° C

6.

Inlet & outlet temp. sensor

PT-100 temperature sensor, intelligent PID control

7.

Atomization structure

Seamless design of nozzle atomizer & rotary atomizer with RN-Con modular design

8.

Atomizer

Centrifugal atomizer

9.

Hot air distributor

H-Adv integrated structure hot air distributor, rotating like wind, evenly distributed, adjustable wind direction

10.

Door hole

Round door hole design, beautiful appearance, both window observation and door cleaning, with thermal insulation design

11.

Drift Fan

Taiwan high pressure fan, 1.5KW/220V, frequency conversion control

12.

Electric heaters

380V;Special stainless steel

13.

Dry air flow

Max 100 m³/h

14.

Average drying time

1.0-1.5s

15.

Automatic Remove Blockages

Automatic needle; Frequency adjustable;0～60 seconds / time

16.

Air compressor

Power :0~15KW;Air :0~900L/min;Pressure:10bar

Control system

1.

Control cabinet

HSSP standard spraying process Schneider electrical standard production

2.

touch screen

10 inch capacitive high resolution touch screen with resolution: 1024*800

3.

Software system

Control 2.0 version control system with temperature, pressure sensing, pump start, stop and variable frequency control data curves, logging and alarm functions.

4.

Quick release design

Thermometer; Air line;Power supply

Others

1.

voltage

AC380V, 50HZ

2.

rated power

AC380V/0~50KW

NO.

Specification

1

Feed system

1.1

Feed pumps l

Peristaltic type with silicone rubber feed tube l

Motor (1 x 220 V, 50 Hz) l

Touch screen control: 0-100% adjustable l

Flow rate: Min.10RPM -17mL /min; Max.390RPM -700mL/min(Based on water)

2

Atomizing system

2.1

Co-current two fluid nozzle atomizing system l

Using the American imported atomizer. l

Located in the top of chamber l

Included feed tube, compressed air tube and nozzle l

Compressed air flow meter l

Compressed air consumption: 10 bar allow to operate in high compressed air pressure. l

Material of nozzle pipe: AISI 316 l

RN-Con modular structure design, nozzle atomizer and rotary atomizer can be switched freely

3

Electrical Gas Heating System

3.1

Electrical Gas Heater l

Inlet air filter l

Wind speed sensor for heating protection l

Power:0~ 31.5 kW l

Max. inlet temperature: Approx. 250°C l

4

Drying Chamber System

4.1

Drying Chamber l

Size :cone 60° l

Sanitary design l

WD circular door hole design, with window observation and door cleaning function, with thermal insulation design l

Hot air distributor adopts H-Adv integrated structure design, uniform distribution, adjustable wind direction and angle l

Monitoring light l

Well insulated with rock wool l

Air hammer: 1 external interface, can use rubber hammer, also can add pneumatic hammer l

Chamber material : Internally AISI 304 / Externally AISI 304 l

The external surface is treated by stainless steel mirror technology, which is beautiful and generous.

4.2

Exhaust Pipe l

Duct connection from chamber to cyclone, easy dismantling l

Material: AISI 304

4.3

Spare Parts l

Two powder glasses l

One inlet filter cotton

5

Exhaust and Powder Discharge System

5.1

Cyclone Separator l

Type: HCF, l

Size: ø650 mm l

Highly effective separation of powder and process gas l

Easy dismantling by means of a hand wheel for cleaning l

Powder discharge through a butterfly valve into powder glass l

Powder glass: 0~1000 mL l

Material :AISI 304

5.2

Exhaust fan l

Imported high pressure fan, 9kW l

Flexible tube with cyclone l

Frequency control: Speed 0-100% controllable

6

Control System

6.1

Independent design, moveable to fit the circular design of the tower

Unique painting processor using standard HSSP l

Siemens PLC Smart Controller l

Advanced touch texture screen, high colour fidelity

Self-owned intellectual property Control 2.0, visual touch operation l Display and control of inlet air temperature, outlet air temperature, frequency conversion, needle frequency, etc.;data record and export, curve analysis function, alarm and overload protection l

Bag filter automatic dust control l

Automatic control of air hammer system pneumatic vibration l

linkage control high speed centrifugal atomizer

7

Engineering Assistance l

Engineering assistance in connection with the commissioning of the spray dryer for one day, board and lodging, local transportation included
