SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h
SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h
SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h
SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h
Specifications
Brand Name :
SHUOBODA
Model Number :
SPD-SMINI
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Maximum water evaporation :
2000ml/h
Inlet air temperature :
30～250℃±1℃
Outlet air temperature :
30～120℃±1℃
Fan :
1.5m3/min; Delta inverter, imported fan
Electric heater :
3.0KW/AC220V; Material: stainless steel
Inlet and outlet air temperature monitoring :
Taiwan PT-100 platinum resistance, intelligent PID control
Average drying time :
1.0～1.5 seconds
Spray system :
Original imported atomizing nozzle from the United States, 0.7mm diameter dual-fluid nozzle
Description

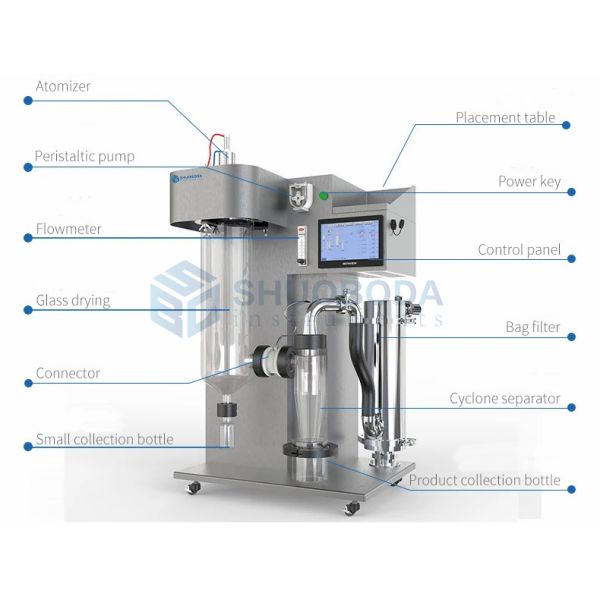

SPD-SMINI Small Stainless Steel Spray Dryer with filter bag, 2000ml/h


SPD-SMINI Small Stainless Steel Spray Dryer is a kind of equipment that dries liquid substances into solid substances at high temperature.

The equipment is flexible, compact and easy to move. The equipment is equipped with a complete safety system such as heating protection and safety protection. It is mainly suitable for the production of trace particle powders in laboratories of universities, research institutes and food, pharmaceutical and chemical enterprises. It has a wide spectrum of applicability to solutions such as emulsions and suspensions.


SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

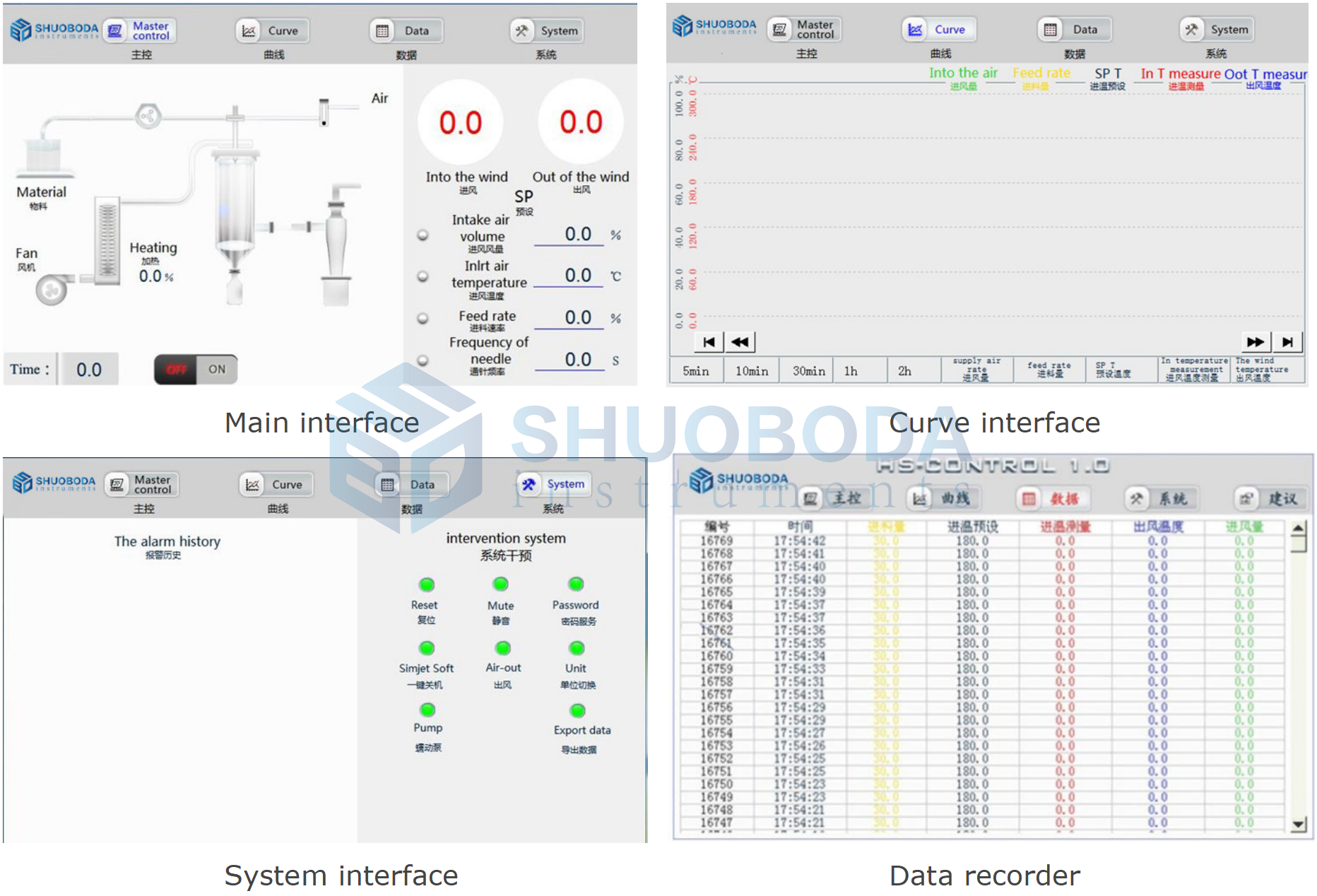

Clear Human Interface

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

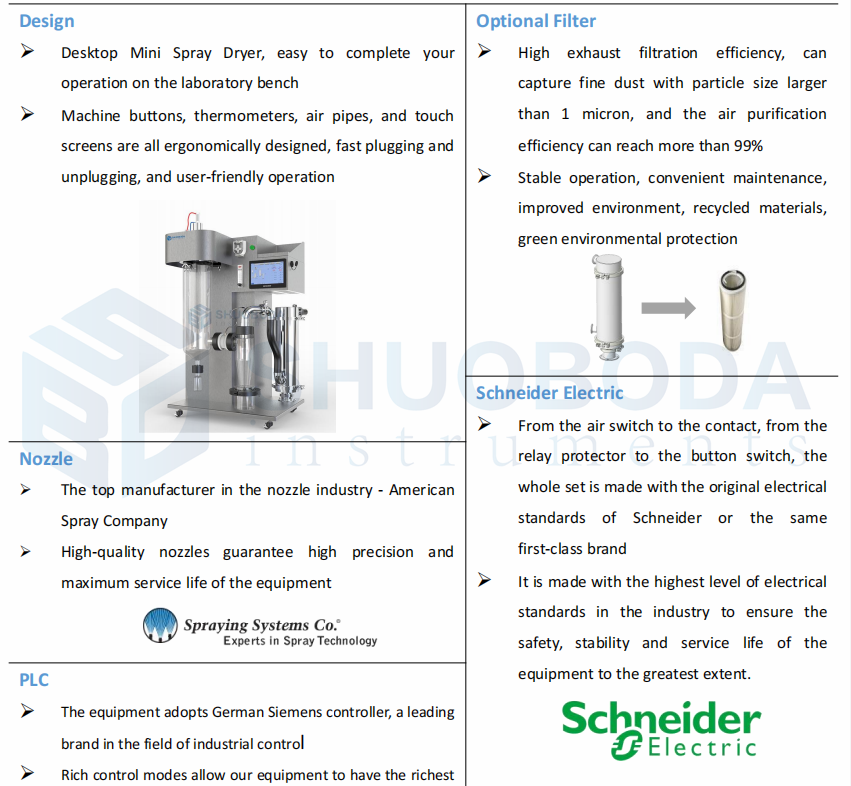

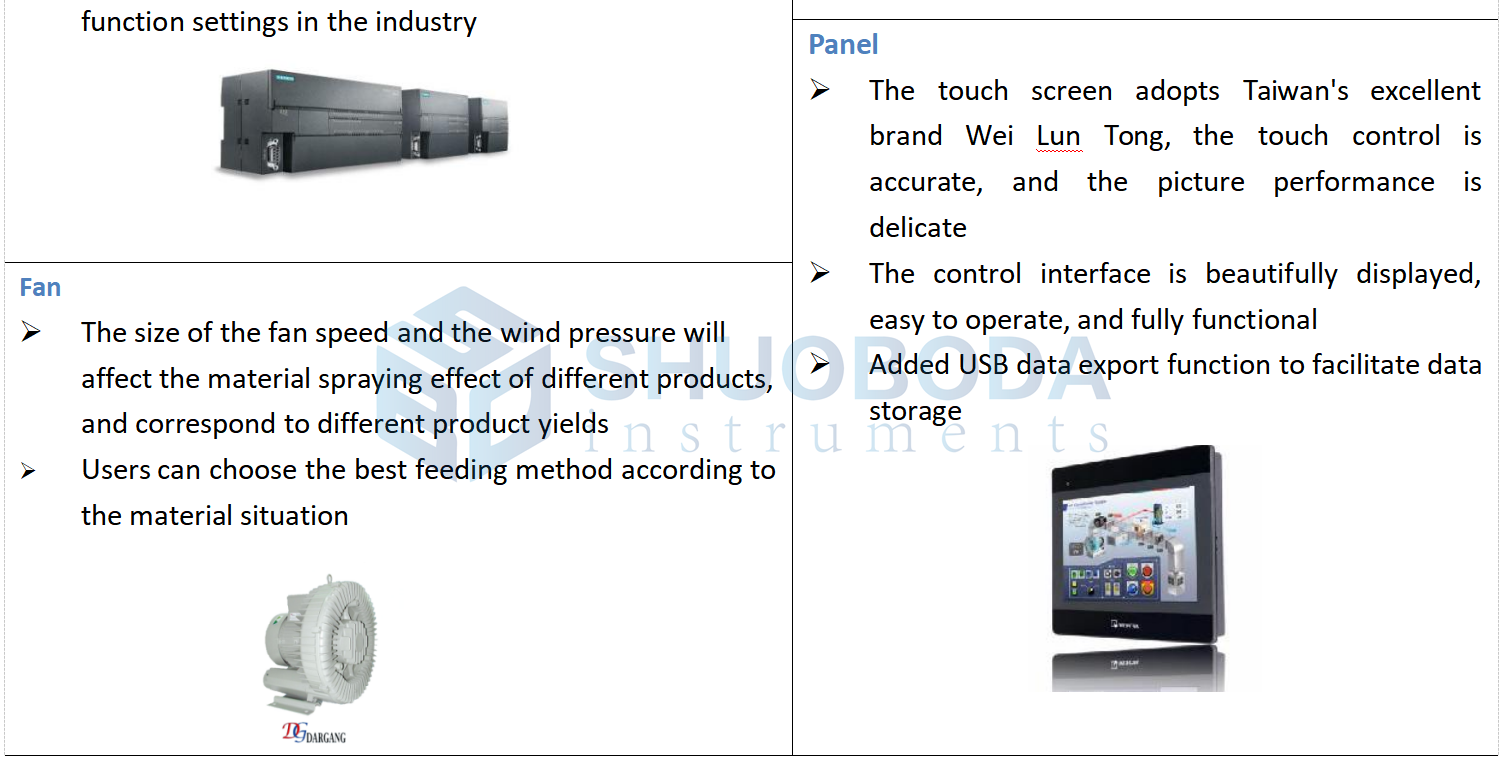

Main features

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h


Technical Specifications

Maximum water evaporation

2000ml/h

Inlet air temperature

30～250℃±1℃

Outlet air temperature

30～120℃±1℃

Fan

1.5m3/min; Delta inverter, imported fan

Electric heater

3.0KW/AC220V; Material: stainless steel

Inlet and outlet air temperature monitoring

Taiwan PT-100 platinum resistance, intelligent PID control

Spray system

Original imported atomizing nozzle from the United States, 0.7mm diameter dual-fluid nozzle

* Bag filter device

Main body material stainless steel, built-in polyester fiber high temperature resistant filter cartridge

Average drying time

1.0～1.5 seconds

Automatic blocking device

The frequency of automatic needle penetration is adjustable, 0～60 seconds/time

Control System

German Siemens PLC automatic control system; imported 7-inch color touch screen

Software version

Independent intellectual property Control1.0, visual touch operation;

Display and control of inlet air temperature, outlet air temperature, frequency conversion, needle pass frequency, etc.;

Data recording and export, curve analysis function, alarm and overload protection

Electrical Standard

Schneider Electric Standard

Quick release design

Thermometer, air pipe, power supply, all use quick plug-in design

Options

Magnetic stirrer, weighing system, filter bag, etc.

Dimensions (H×W×D)

900mm×570mm×620mm

Voltage

AC220V,50Hz

Total Weight

60kg


Brands

Nozzle

American Spraying

Pump

Durable peristaltic pump

Fan

Taiwan Dagang

Fan inverter

Delta inverter

PLC control system

Siemens, Germany

PT100 temperature electrode

Hequan, Taiwan

PT100 aviation plug

Hequan, Taiwan

Electrical components: Empty open,

Schneider Electric

HMI

Taiwan Weiluntong


Packing List

Mini host

ü

Drying chamber

ü

Cyclone separator

ü

Small bottle

ü

Product bottle

ü

PTFE connector

ü

Drying tower body seal

ü

Small collection bottle with glass drying chamber seal

ü

Clamp

ü

PT100 temperature sensor with quick release head

ü

Silicone tube

ü

High temperature exhaust exhaust pipe

ü

Power wiring

ü

Pneumatic belt with quick release head

ü

Air compressor

ü

Portable Disassembly Tool

ü

Product Identification

ü

Factory inspection report

ü

Certificate

ü

User Manual

ü

After-sales Service Manual

ü

USB data export interface module

ü

Oil-Free Air Compressor (Standard fitting for spray dryer)

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

Quality assurance. Obtained the ISO9001-2008 and ISO13485-2012 quality system certification of TUV in Germany.

pure oil-free design. The output gas contains no oil molecules and is harmless to the human body.

ultra-quiet. Low noise, smooth and non-fluctuating output pressure, reducing noise pollution.

Multi-level filtration. Multi-stage gas filtration keeps the instrument cleaner and extends its life.

internal spray rust. The inside of the gas tank is sprayed and finished to prevent the air from being rusted and contaminated.

safe to use. Weakness, current causes the air compressor to overheat, can automatically stop the protection to avoid burnout.

automatic start. Intermittent use, air compressor switch does not need to restart.

pressure is adjustable. The air pressure can be adjusted to meet different equipment needs.

durable. It is used according to regulations and has been used for more than 15,000 hours.

Easy to operate. Power on and use without any training.

maintenance is simple. No need to add lubricant, it is easy to use.

Specifications:

Voltage

220V/50Hz or 110V/60Hz

Power (W)

550W/0.75HP

Maximum displacement (L/min)

115

Amount @7bar(L/min)

40

Noise dB(A)

58

Maximum pressure (Bar)

8

Gas tank capacity (L)

22

Gross weight (KG)

25

Net weight (KG)

23

Size (L/W/H) mm

410*410*520

spray dryer drying samples

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h

applications

SPD-SMINI Small Stainless Steel Spray Dryer With Filter Bag 2000ml/h
