MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl
Specifications
Brand Name :
SHUOBODA
Model Number :
MSP-100
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working
Packaging Details :
Plywood packing
Wavelength range :
200-800 nm
Minimum sample size :
0.5-2.0 μl
Path length :
0.2 mm 1.0 mm
Light source :
Xenon flash lamp
Detector type :
2048-Linear CCD array
Wavelength accuracy :
1 nm
Description

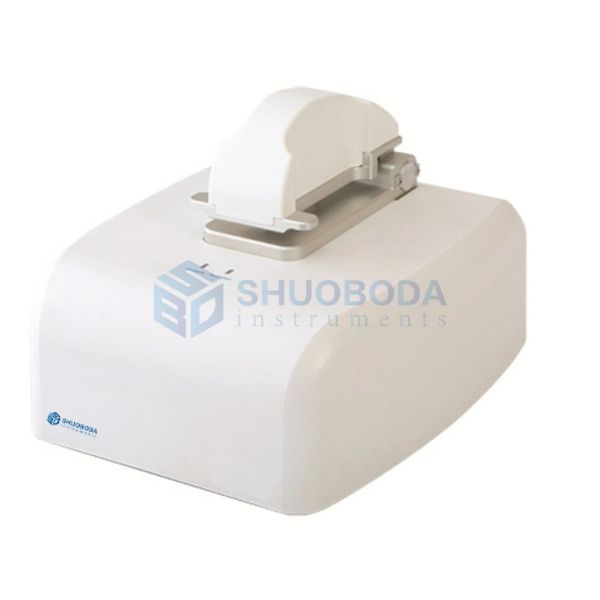

MSP-100 Micro-Spectrophotometer

Product introduction:

MSP-100 is a perfect full-spectrum, UV-Vis spectrophotometer, used to quantify and assess concentration of DNA, RNA, protein and more.

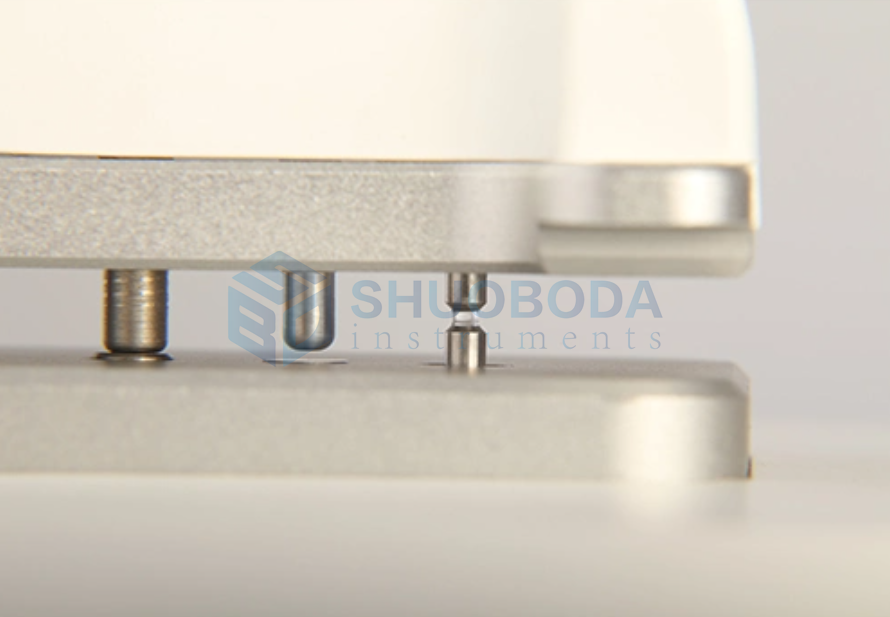

MSP-100 utilizes CCD detector, a Xenon light source for long lifetime lamp together with simple software. Simple pipette 0.5~2 μl sample onto the pedestal, laying down the sampling arm, it can complete the measurement within 5 seconds.

Features

User-friendly software, easy to use

Graphical software operation, the interface is more intuitive, and the results can be directly exported, which is convenient for data saving, viewing and output

Micro-volumes measuring

Only require 0.5~2 μl sample to accurate determinate of nucleic acids, proteins

Fast and easy measurements

Turn on and instantly measure without lamp warm up time; Easy measurement within 5 sec

Long life's Xenon flash lamp

Xenon flash lamp, 10 flashes, up to 10 years, no dilutions and expensive consumables

High detection concentration

The highest concentration of the measurable sample is 4500 ng/μl (dsDNA as an example), and the sample basically does not need to be diluted

Ease of use

Spot the sample directly on the base without dilution or cuvette, the measurable sample concentration is 50 times that of a conventional UV-Vis spectrophotometer, and the result is directly output as the sample concentration

MSP-100 Unique Advantages:

1. Turn on and instantly measure without lamp warm up time;

Full scan capability from 200-800 nm within 5 sec

2. Detects Nucleic Acids up to 4500 ng/ul (dsDNA)

3. 3864-Element linear silicon CCD array

4. Need to connect computer

5. Software compatibility: WinXP, Win7, Win8

MSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μlMSP-100 Full Spectrum Micro Spectrophotometer 2 - 4500 Ng/μl

Technical Specifications

Model

MSP-100

Wavelength range

200-800 nm

Minimum sample size

0.5-2.0 μl

Path length

0.2 mm 1.0 mm

Light source

Xenon flash lamp

Detector type

2048-Linear CCD array

Wavelength accuracy

1 nm

Spectral resolution

≤3 nm

Absorbance precision

0.003Abs

Absorbance accuracy

1%(7.332Abs at 260 nm)

Absorbance range

0.04 - 90 A

Detects nucleic acid up to

2~4500 ng/μl (dsDNA)

Measurement time

<5 S

Data output

Connect PC

Sample pedestal material

Aluminum alloy and Quartz fiber

Operating voltage

DC 24 V 2 A

Operating power

20 W

Standby power

5 W

Dimension (W×D×H) mm

200×250×166

Weight

2.6 kg

Software compatibility

WinXP, Win7, Win8
