MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl
MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl
Specifications
Brand Name :
SHUOBODA
Model Number :
MSP-500
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Wavelength range :
200-800nm
Minimum sample size :
0.5-2.0μl
Path length :
0.05mm, 0.2mm (high concentration measurement), 1.0mm (normal concentration measurement)
Light source :
Xenon flash lamp
Detector type :
UV-sillion photocell
Description

MSP-500 advanced micro UV VIS spectrophotometer, 2-15000ng/μl

Product introduction:

MSP-500 is an advanced model of micro UV VIS spectrophotometer based on MSP-300, with full range of wavelength (200-800 nm). It is with an added new function of bacterium cell concentration measurement (OD600) in a cuvette. The MSP-500 only requires 0.5-2 μl sample to measure nucleic acids, proteins as quickly as MSP-300. MSP-500 come with a 7 inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology laboratory to make life science research more efficient.

Features

The patented lifting motor structure makes the liquid column stretch gentler, preventing the liquid column from breaking due to structural problems

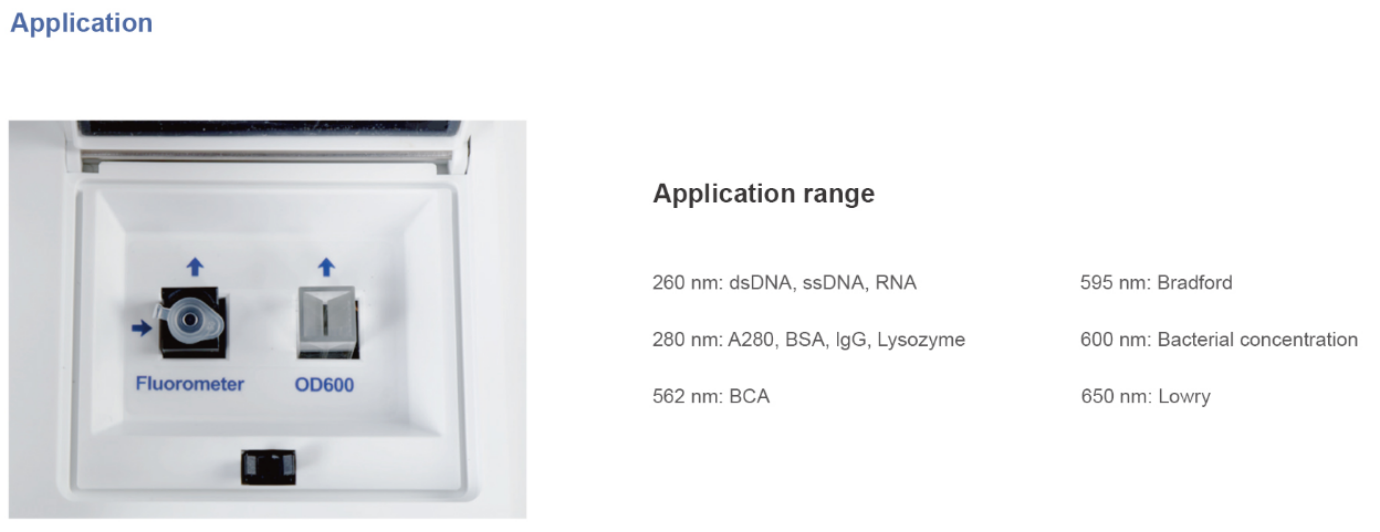

To detect the concentration of bacteria and microorganism are more convenient with the OD600 function

Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use

With a 2048-Element linear CCD array detector, the detection and display can be completed in 6S Long-life pulsed xenon light source

The result can be printed by a built-in printer or exported via USB for data analysis and storage

MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl

MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl

MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl

MSP-500 Advanced Micro UV VIS Spectrophotometer 2-15000ng/μl


Technical Specifications

Model

MSP-500

Wavelength range

200-800nm

Minimum sample size

0.5-2.0μl

Path length

0.05mm, 0.2mm (high concentration measurement), 1.0mm (normal concentration measurement)

Light source

Xenon flash lamp

Detector type

UV-sillion photocell

Light source

Xenon flash lamp

Detector

2048-unit linear CCD array

Wavelength accuracy

1nm

Wavelength resolution

≤3nm

Absorbance accuracy

0.003Abs

Absorbance accuracy

1% (7.332Abs at 260nm)

Absorbance range (equivalent to 10mm)

0.04 - 300A

Nucleic acid detection range

2-15000ng/μl (dsDNA)

Detection time

<6S

Data output method

USB

Sample base material

Quartz optical fiber and high-hardness aluminum

Power adapter

DC 24V 2A

Power consumption

25W

Standby power consumption

5W

Dimensions (W×D×H) mm

208×320×186

Weight

3.6kg

Software operating platform

Android system

Cuvette Mode (OD600) Light Source

LED

Wavelength range

600±8nm

Absorbance range

0-4A

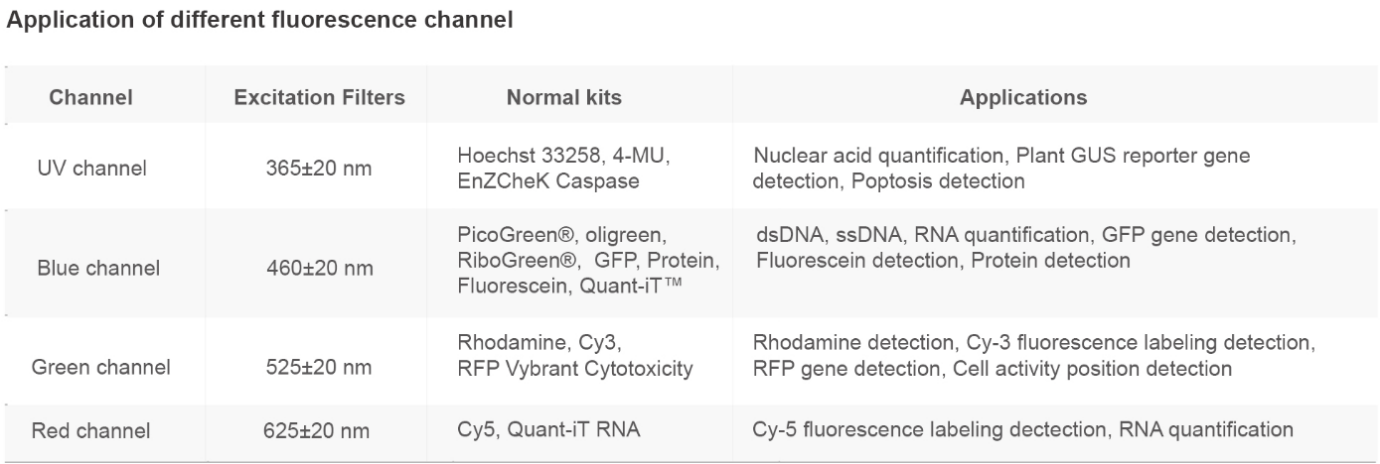

Fluorometer mode

Sensitivity: dsDNA

0.5pg/μl

Linearity

R²≥0.995

Stability

≤1.5%
