Ultra Micro Nucleic Acid Analyzer 260nm 800nm 10-2500 Ng/μl MSP-400A
Ultra Micro Nucleic Acid Analyzer 260nm 800nm 10-2500 Ng/μl MSP-400A
Specifications
Brand Name :
SHUOBODA
Model Number :
MSP-400A
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Wavelength range :
260 nm, 800 nm
Minimum sample size :
1-2.0 μl
Path length :
0.5 mm
Light source :
LED
Detector type :
UV-sillion photocell
Spectral resolution :
≤8 nm
Description

MSP-400A ultra-micro nucleic acid analyzer, 260 nm, 800 nm, 10-2500 ng/μl

Ultra Micro Nucleic Acid Analyzer 260nm 800nm 10-2500 Ng/μl MSP-400A

Product introduction:

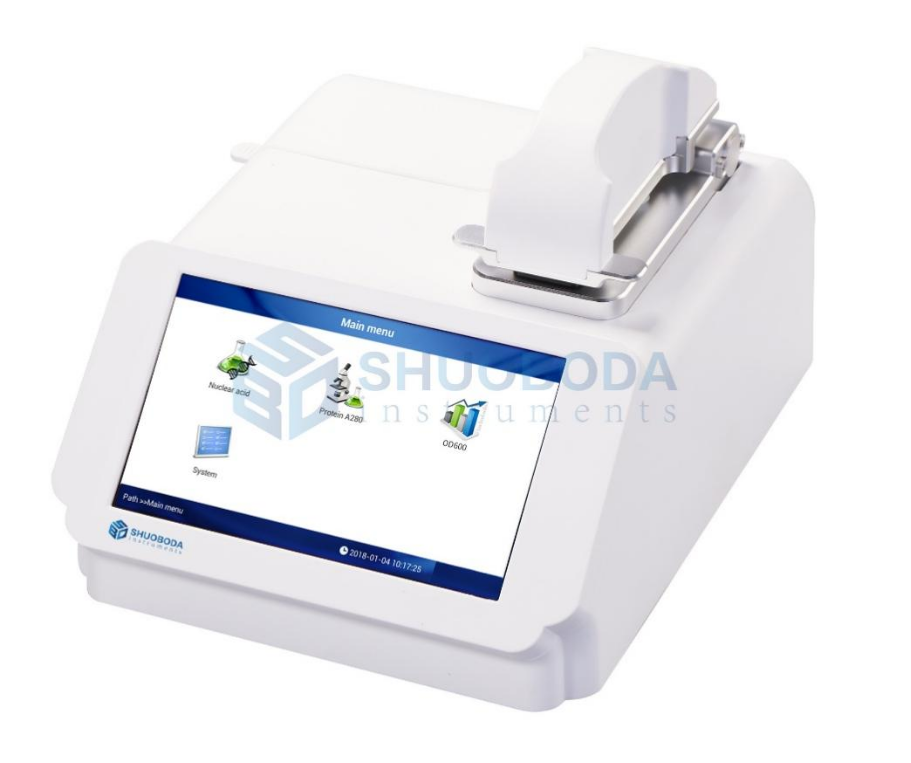

MSP-400A ultra-micro nucleic acid analyzer is an instrument used to detect the concentration and purity of DNA and RNA. The sample size required for each measurement is only 1 to 2 μl. User can directly add the sample point to the template without colorizing cup or capillary accessories. After the measurement, you can choose to wipe the sample directly or use a pipettor to recover the sample. All steps are simple and fast.

Features

MSP-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelengths: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins

Android system operation, 7-inch touch screen no computer, APP software, simple interface, easy to use

LED light source long-life components

To detect the concentration of bacteria and microorganism are more convenient with the OD600 function

Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280

Measure purified protein concentration at 280 nm

The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory

Technical Specifications

Model

MSP-400A

Wavelength range

260 nm, 800 nm

Minimum sample size

1-2.0 μl

Path length

0.5 mm

Light source

LED

Detector type

UV-sillion photocell

Spectral resolution

≤8 nm

Absorbance precision

0.005Abs

Absorbance accuracy

2%(7.332Abs at 260 nm)

Absorbance range

0.2 - 50 A

Detects nucleic acid up to

10-2500 ng/μl(dsDNA)

Measurement time

<6 S

Data output

USB

Sample pedestal material

Quartz optical fiber and high-hardness aluminum

Operating voltage

DC 24 V 2 A

Operating power

25 W

Standby power

5 W

Dimension (W×D×H) mm

208×280×186

Weight

2.0kg

Cuvette mode (OD600) Light source

LED (Light Emitting Diode)

Software compatibility

Android system

Light source

LED

Wavelength range

600±8 nm

Absorbance range

0-4 A
