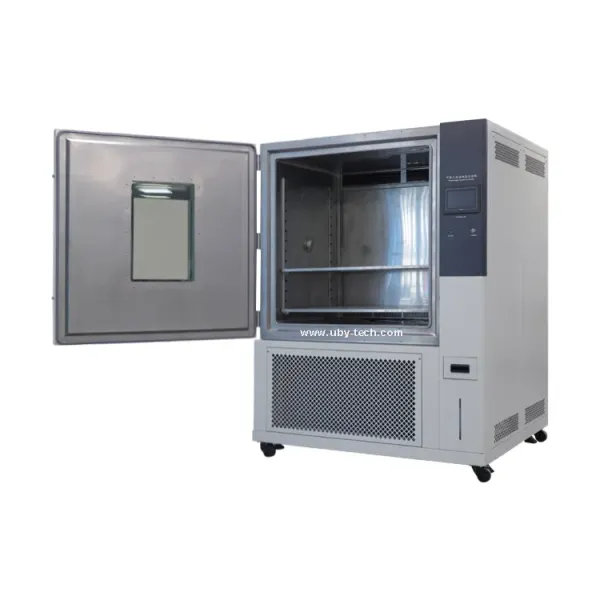

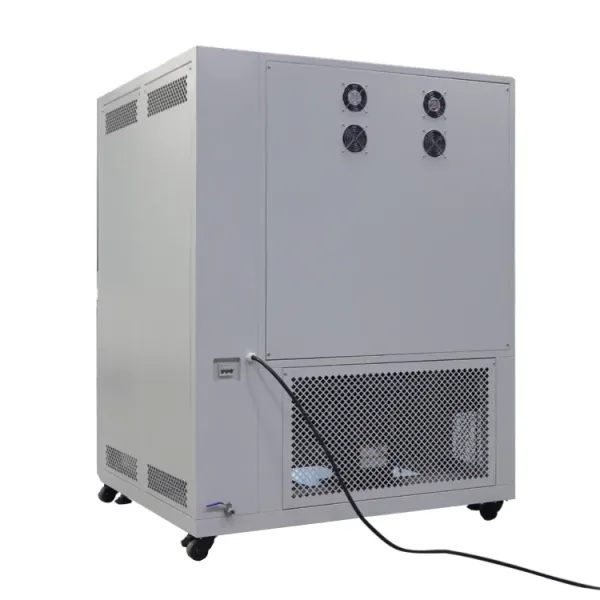

Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6111
Delivery Time :
5-15 work days
Product name :
Rapid temperature change test chamber
Model NO. :
UP-6111
Emperature Range :
-70ºC~+180ºC
Humidity Range :
10%~98%Rh
Temperature Fluctuation :
±1ºC
Humidity Fluctuation :
±2.5%Rh
Warranty :
1 Year
Custom Service :
OEM,ODM
Power :
three-phase, 380V/50Hz
Size Service :
Support Customer Customization
Description
Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown
This chamber is engineered to simulate extreme rapid temperature change environments for product tolerance testing. It achieves exceptionally high heating and cooling rates (5°C/min to 40°C/min or higher) to perform temperature cycling, thermal shock, and high-low temperature fatigue testing. This equipment evaluates the reliability, performance degradation, and potential failures of electronic products, automotive components, aerospace equipment, and various materials under severe temperature variations.
Design Features
  • Cable ports on the left side for easy specimen wiring during measurement or voltage application
  • Hinged door mechanism preventing auto-closing for enhanced safety
  • Compliance with major environmental test standards including IEC, JEDEC, and SAE
  • Safety tested with CE certification
Programmable Controller
  • High-precision programmable touch screen controller for stable operation
  • Multiple step types including ramp, soak, jump, auto-start, and end functions
Technical Specifications
Internal Dimension (W×D×H) 1000×800×1000mm
External Dimension (W×D×H) 1580×1700×2260mm
Working Capacity 800 liter
Material of Internal Chamber SUS#304 stainless steel, mirror finished
Material of External Chamber Stainless steel with paint spray
Temperature Range -70°C to +180°C
Temperature Fluctuation ±1°C
Heating Rate 5°C/min
Cooling Rate 5°C/min
Sample Tray SUS#304 stainless steel, 3 pieces
Testing Hole Diameter 50mm, for cable routing
Power Three-phase, 380V/50Hz
Safety Protection Devices Leakage protection, over-temperature protection, compressor over-voltage and overload protection, heater short circuit protection
Insulation Material Compound material without sweating, specialized for low pressure
Heating Method Electrical
Compressor Imported new generation with low noise
Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller Safety-Enhanced Rapid Temperature Change Test Chamber with Emergency Shutdown and High-Precision Programmable Controller
Our Service Process
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Specifications Customization Process
Create detailed drawings for customized requirements, provide reference photos for product appearance, and finalize solutions with confirmed pricing.
Production and Delivery Process
Manufacture according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
Installation and After-Sales Service
Provide field installation services and comprehensive after-sales support for optimal equipment performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment; Urgent requirements receive special arrangement priority.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo placement.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power cables to begin operation. On-site installation assistance is available when necessary.
