ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
Specifications
Certification :
CE, ISO
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-6122
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,Paypal
Supply Ability :
20 Unit/month
Delivery Time :
10~20 work days
Packaging Details :
Professional export packaging
Model NO. :
UP-6122
Warranty :
1 Year
Custom Service :
OEM,ODM
Size Service :
Support Customer Customization
Third-Party Calibration Service :
Support Customer Customization
Temperature Range :
0℃~+80 ℃ (Adjustable)
Accuracy :
0.1℃
Temperature Fluctuation :
≤±0.5℃
Temperature Uniformity :
±2℃
Ozone Concentration Accuracy :
10 ~ 1000pphm ± 10%
Description
UP-6122 ASTM D1171 Ozone Aging Test Chamber Static Stretching Cable Aging
ASTM D1171 Ozone Test Chamber Static Stretching Cable Aging

The ASTM D1171 static stretching cable aging ozone production chamber simulates and intensifies atmospheric ozone conditions to study the effects of ozone on rubber (cable) materials. This equipment enables rapid identification and evaluation of rubber's resistance to ozone aging properties and the protective efficacy of anti-ozone agents. This allows for implementing effective anti-aging measures to extend the service life of rubber products.

Technical Specifications
Model UP-6122-250 UP-6122-500 UP-6122-800 UP-6122-1000
Internal dimensions (mm) 600×600×700 700×800×900 800×1000×1000 1000×1000×1000
Overall dimensions (mm) 960×1150×1860 1180×1350×2010 1280×1550×2110 1500×1550×2110
Temperature range 0ºC to 100ºC
Humidity range 30% to 98% RH
Clamps tensile stretch 5% to 35%
Power & voltage AC380V 50HZ
Standard ISO1431; ASTM 1149; IEC 60903; IEC60811-403; JIS K6259; ASTM D1171
Speed rate for cooling Ambient to 0ºC within 20 min
Ozone concentration 1 to 1000 pphm
Airflow rate 0 to 60 L/min
Sample holder rotate speed 0 to 10 r/min
Timing range 0 to 999 hours
  • Cooling system: Mechanical compression refrigeration system
  • Refrigerant: R404A, R23
  • Water supply system: Automatic water supply with water purification system
  • Thermal insulation: Polyurethane foam and insulation cotton
Safety Features
  • Humidifier dry-combustion protection
  • Over-temperature protection
  • Over-current protection
  • Refrigerant high-pressure protection
  • Water shortage protection
  • Earth leakage protection

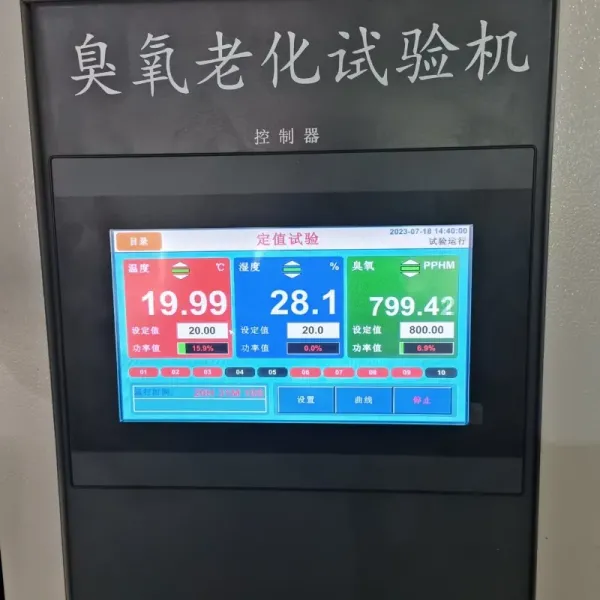

Product Images
ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging ASTM D1171 Ozone Aging Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging
Our Service Process
1) Customer Inquiry Process:

We discuss testing requirements and technical details, suggest suitable products for confirmation, and provide the most appropriate pricing according to customer requirements.

2) Specifications Customization Process:

We create related drawings to confirm customized requirements, provide reference photos to show product appearance, and finalize the solution and pricing with the customer.

3) Production and Delivery Process:

We manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration as required, and arrange packing and delivery according to confirmed shipping timelines.

4) Installation and After-Sales Service:

We provide field installation services and comprehensive after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.

If your machine experiences issues, you can contact us via email or phone. We will work to identify the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days

For machines not in stock: 15-20 working days after payment receipt

We can make special arrangements for urgent requirements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

After ordering, we provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. We also provide on-site installation assistance when necessary.
