UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
$599~$8999
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T; D/P; Wester Union; Paypal; Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6196
Delivery Time :
5~15 work days
Product name :
Heating Drying Oven
Model NO. :
UP-6196
HS Code :
8514199000
Warranty :
1 Year
Custom Service :
OEM, ODM
Color Service :
Support Customer Customization
Size Service :
Support Customer Customization
Temperature Range :
Rt+5℃~250℃
Temp. Accuracy(℃) :
0.1℃
Temp. Fluctuation(℃) :
0.5℃
Temp. Uniformity :
2%
Specification :
Refer to the actual size specifications
Description
UP-6196 Heating Drying Oven with Intelligent Numerical Display and Uniform Temperature Distribution
This advanced heating drying oven features intelligent numerical display technology and ensures uniform temperature distribution throughout the chamber. The innovative cavity preheating system with evenly distributed heating elements provides precise temperature control and energy-efficient operation.
Advanced Heating Technology
The oven utilizes advanced cavity preheating technology with heating elements evenly distributed around the inner chamber. This system preheats the cavity inner wall, then uses heat transfer and forced-fan convection to ensure every point in the chamber accurately achieves and maintains the set temperature value, guaranteeing uniform temperature distribution.
Technical Specifications
Specification UP-6196-40 UP-6196-70 UP-6196-130
Product Model Thermostatic Drying Oven
Convection Mode Forced Convection
Control System Microprocessor PID
Temperature Range (°C) RT+5°C~250°C
Temperature Accuracy (°C) 0.1
Temperature Fluctuation (°C) ±0.5 (50~240°C range)
Temperature Uniformity 2% (50~240°C range)
Timer Range 0~99h or 0~9999min (selectable)
Working Environment Ambient: 10~30°C, Humidity<70%
Insulation Materials Imported Environmental Protection Material
External Dimensions (H×W×D) 570×580×593mm 670×680×593mm 770×780×693mm
Internal Dimensions (H×W×T) 350×350×350mm 450×450×350mm 550×550×450mm
Interior Volume (L) 40 70 130
Interior Steel Materials SUS304 Stainless Steel
Standard Trays 2
Power (W) 770 970 1270
Supply Voltage 220V/50Hz
Net Weight (KG) 40 48 65
Shipping Weight (KG) 43 51 69
Packing Size (H×W×D) 690×660×680mm 790×760×680mm 890×860×780mm
Ergonomic Design Features
  • Classic laboratory color design with international fashion styling and arc-shaped contours for optimal operational comfort
  • Integrated design featuring original exterior handle and LCD screen with ergonomic structure and comfortable viewing angles
  • Adjustable mesh shelf intervals and quantities to meet specific customer requirements
  • Comfortable vertical structure maximizing work chamber capacity with upper working area for convenient access
  • Double door design for easy sample observation and temperature stability maintenance with bell-type lighting system
  • Modern manufacturing using laser cutting and CNC bending technology for sheet metal parts
  • Cold-rolled sheets treated with three-line acidification anti-rust technology
  • Incubator surface finished with professional plastic spraying workmanship

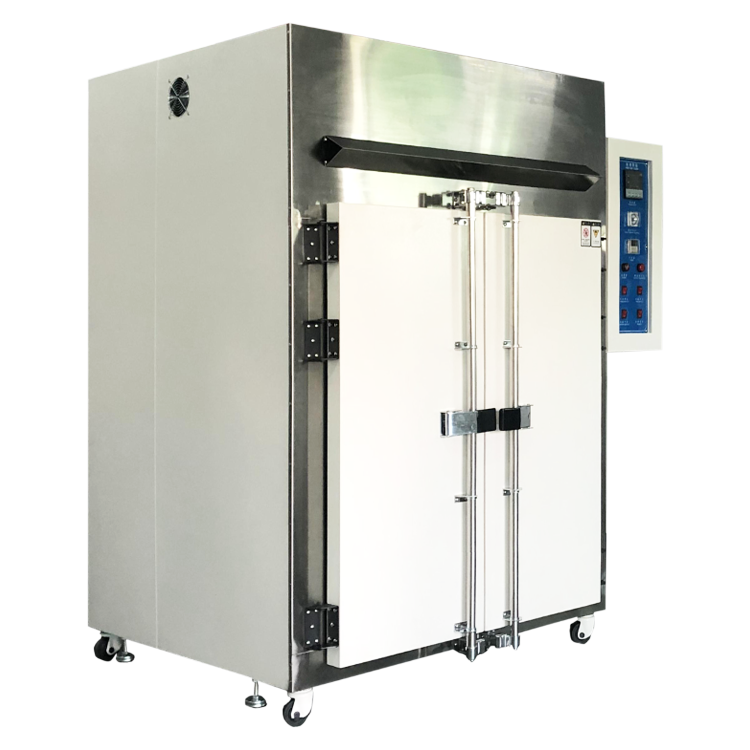

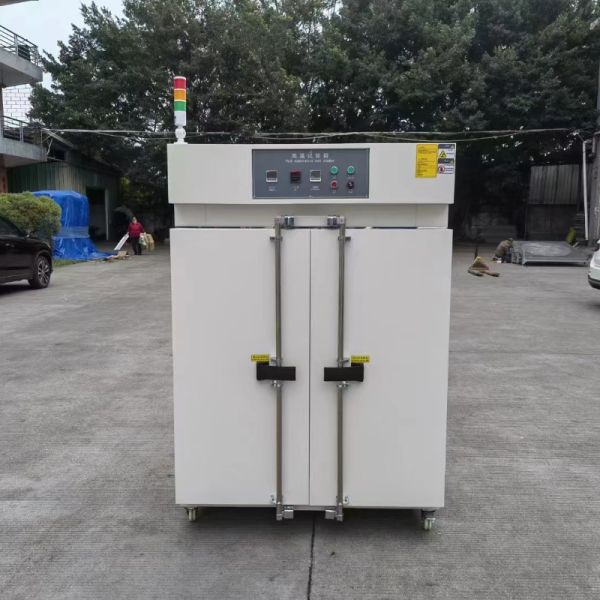

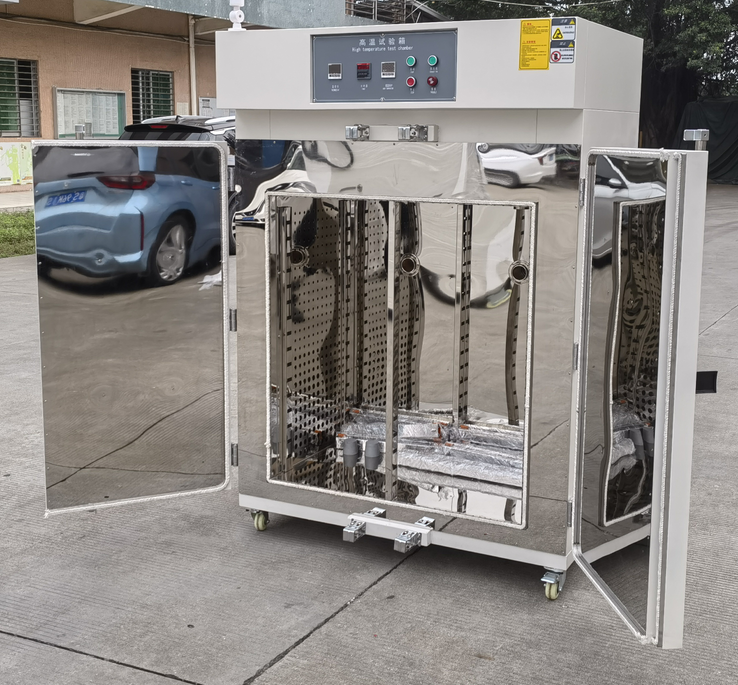

Product Images
UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy UP-6196 Heating Drying Oven with Intelligent Numerical Display Uniformity Temperature and 0.1℃ Temp. Accuracy
Comprehensive Service Support
We provide consultative selling services throughout the entire business process:
  1. Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  2. Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing
  3. Production and Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery
  4. Installation and After-Sales: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend an additional 2 months for international customers. If your machine requires service, contact us via email or phone. We diagnose issues through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specifications. We provide OEM and ODM services, including custom logo application on equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. We offer on-site installation assistance when necessary.
