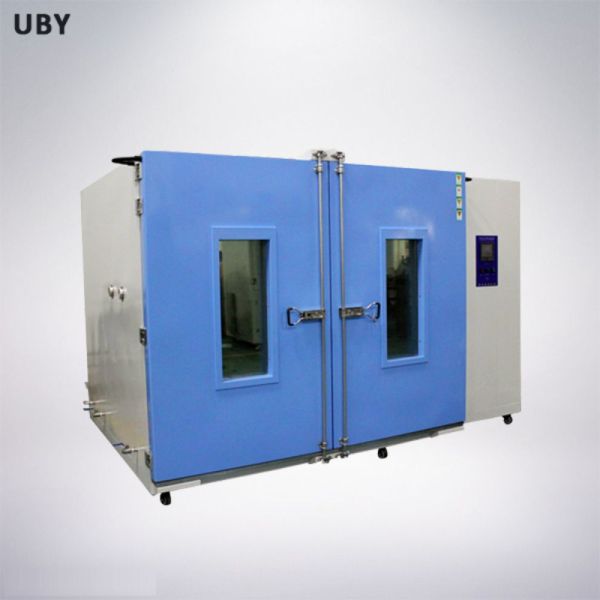

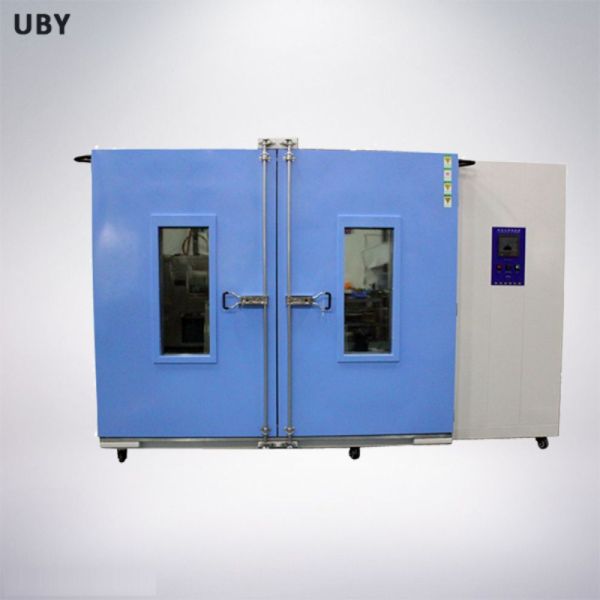

IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles
IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles
IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles
IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
$599~$8999
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T; D/P; Wester Union; Paypal; Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6300
Delivery Time :
5~15 work days
Product name :
Waterproof test chamber
Model NO. :
UP-6300
Water Spray Temperature :
Ambient ~ 88ºC (Adjustable)
Water Spray Angel :
0°,30°,60°,90°
Spray Nozzle :
Four, 30 seconds each position
Water Pressure :
8000-10000 Kpa (adjustabl)
Water Flow Rate :
14L-16L/min
Spray Range :
30° ± 5°(Single hole); Space 100-150mm
Testing Platform Speed :
5 ±1 r.p.m
Warranty :
1 Year
Custom Service :
OEM,ODM
Specification :
Refer to the actual size specifications
Description
IPX9K High Pressure Steam Jet Cleaning Water Spray Climatic Test Chamber
The High Pressure Steam Jet Cleaning Water Spray IPX9K Climatic Test Chamber is designed to inspect IEC enclosures for electrical equipment (IP supplementary code test). This equipment is specifically applicable for waterproof testing of electrical and automotive components under high temperature and high pressure conditions. Scientifically engineered to realistically simulate water spray environments.
Compliance Standards
IEC60529, GB4208, DIN40050-9, ISO20659, EN 60529, DIN 40050-9
Key Features
  • Applicable to IPX8 waterproof rating testing
  • Constructed with 304 stainless steel tank body, high-precision overall sub-arc welding for excellent pressure bearing capacity
  • Square external structure with stainless steel plate welding, user-friendly 45° bevel design with button operation
  • Top cover secured with 8 sets of ring screws (distribution auxiliary steel bars)
  • Equipped with safety valve for automatic pressure release when exceeding rated pressure
Technical Specifications
Model UP-6300
Product Name High Pressure Steam Jet Cleaning Water Spray IPX9K Climatic Test Chamber
Internal Dimensions (mm) 1000*1200*1000 D*W*H
Overall Dimensions (mm) 1250*1700*2050 D*W*H
Water Spray Temperature Ambient ~ 88°C (Adjustable)
Water Spray Angle 0°, 30°, 60°, 90°
Spray Nozzle Four nozzles, 30 seconds each position
Spray Range 30° ± 5° (Single hole); Space 100-150mm
Spray Distance to Specimens 10-15cm
Water Pressure 8000-10000 Kpa (Adjustable)
Water Flow Rate 14-16L/min
Testing Platform Speed 5 ±1 r.p.m
Test Platform Height 200-450mm, Adjustable
Test Platform Diameter 600mm
Maximum Load ≤100kg
Controller Programmable color LCD touch screen controller with PC Link software, RS-232 interface
Safety Features Power protection, timing auto-stop, water protection, motor overheating protection, water temperature overheating automatic drainage
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Heater Nichrome heater
Interior Material SUS304 stainless steel
Exterior Material Steel Plate with protective coating
Power Supply 380V 50HZ, Three-phase five-wire
Operating Environment Grading, no corrosive gas, avoid direct sunlight; Temperature: +5~+35°C; Humidity: 45~85%RH
IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles IPX9K High Pressure Steam Jet Cleaning Environmental Test Chamber with Adjustable Water Spray Temperature and Four Spray Nozzles
Our Comprehensive Service
  • Customer Inquiry: Technical consultation, requirement analysis, and product recommendation with competitive pricing
  • Custom Specifications: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Transparent production process with progress photos, factory calibration, and timely shipping
  • Installation & Support: Professional installation services and comprehensive after-sales support
Frequently Asked Questions
  • Are you a manufacturer? What about warranty and after-sales service?
    Yes, we are professional manufacturers of environmental chambers and testing equipment. All machines include 12-month warranty with free maintenance. Extended support available for international shipping. Technical support provided via email, phone, or video chat with solutions within 24-48 hours.
  • What is the delivery time?
    Standard machines: 3-7 working days (in stock) or 15-20 working days (custom orders). Urgent requirements accommodated with special arrangements.
  • Do you accept customization and branding?
    Yes, we offer comprehensive OEM and ODM services including custom specifications and logo application.
  • How is installation handled?
    Most machines ship fully assembled with English operation manuals and videos. Basic power connection required. On-site installation assistance available when necessary.
