UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications
UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications
UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications
UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
$599~$8999
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T; D/P; Wester Union; Paypal; Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
20 Unit/month
Model Number :
UP-6196
Delivery Time :
5~15 work days
Product name :
Drying Oven
Model NO. :
UP-6196
Testing temperature range :
Roomtemperature~250ºC(300ºC/400ºC)
Vacuum degree :
-0.1MPa
Temp. fluctuation :
±0.5ºC
Temp. uniformity :
±5ºC
Warranty :
1 Year
Custom Service :
OEM, ODM
Size Service :
Support Customer Customization
Specification :
Refer to the actual size specifications
Description
UP-6196 Continuous Drying Oven With Adjustable Conveyor Speed
The UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed is an industrial equipment designed for continuous drying processes. Its key feature is an adjustable conveyor belt speed, which allows precise control over material residence time to meet various drying requirements. The oven provides stable and uniform hot air circulation, ensuring consistent drying results. Ideal for batch processing sheet materials, granular products, or shaped items, it is widely used in electronics, food processing, chemicals, and printing industries.
Technical Specifications
Testing Temperature Range Room Temperature ~ 250°C (300°C/400°C)
Vacuum Degree -0.1MPa
Performance
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±5°C
Control Accuracy 0.1°C
Heating-up Time Room Temperature ~ 400°C < 120min
Room Temperature ~ 250°C < 90min (No linear, empty load)
Material Construction
Exterior Chamber Material Cold-rolled steel plate + Powder coating
Interior Chamber Material SUS#304 Stainless Steel
Insulation PU & Fiberglass Wool
System Components
Air Circulation System Cooling Fan
Heating System SUS# Stainless Steel High-speed Heater
Controlling System SAMWON ST590E-00 Controller
Vacuum System Equipped with Vacuum Pump
Power Supply AC 3 Phase 380V 60/50Hz
Customization Non-standard or special requirements are all welcome

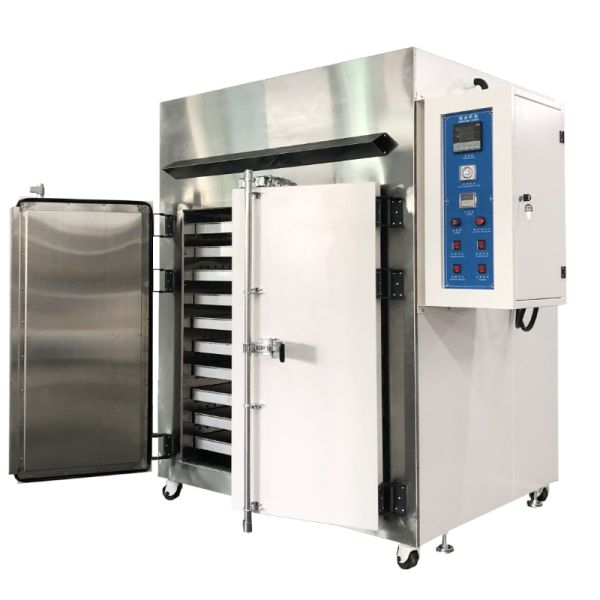

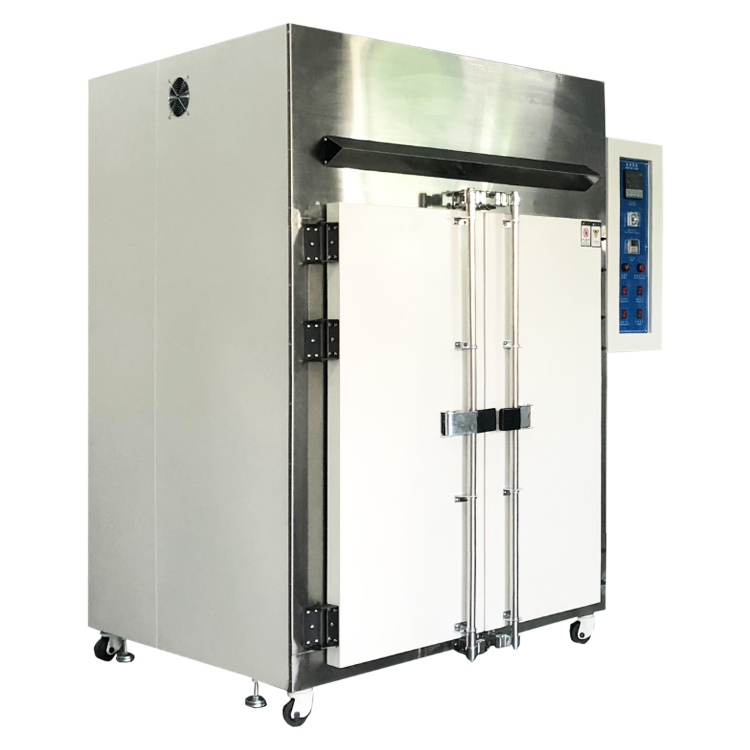

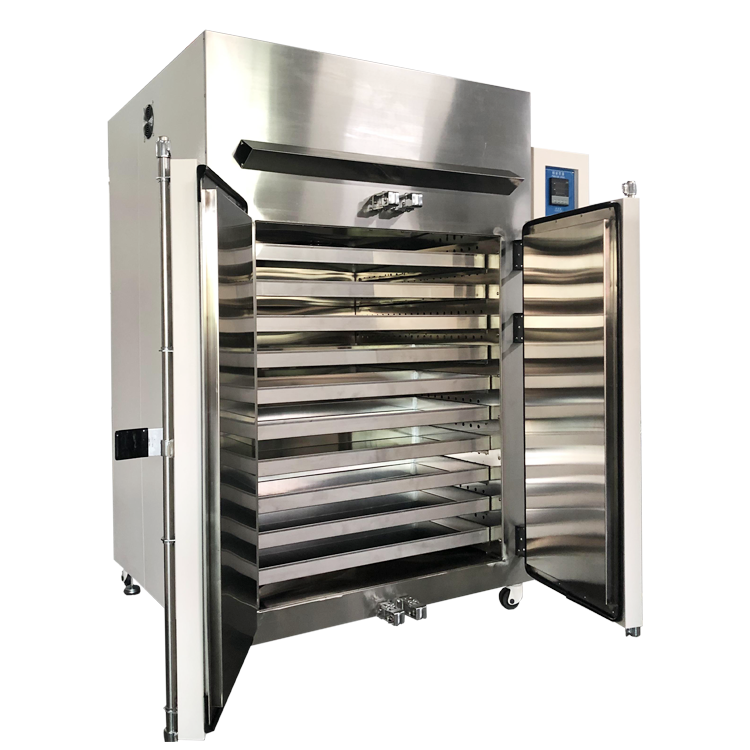

Product Images
UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications UP-6196 Continuous Drying Oven with Adjustable Conveyor Speed and Testing Temperature Range up to 250ºC for Industrial Applications
Our Service Process
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Specifications Customization Process
Create detailed drawings for customized requirements, provide reference photos, and finalize solutions with confirmed pricing.
Production and Delivery Process
Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
Installation and After-Sales Service
Provide field installation services and comprehensive after-sales support for all products.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
