Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Specifications
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-1010
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Unions,Papal,Money Gram
Supply Ability :
20 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional export packaging
Certification :
CE,ISO
Specimen dimension :
φ110mm φ6mm
Grinding wheel :
φ2″(MAX .45mm)1/2″(W)
Center space of wheel :
63.5mm
Distance between wheel and test plate :
37~38mm
Rotating speed :
60rpm
Applications :
Glass, Ceramatic, Floor Tiles and etc.
Service Support :
OEM ODM
Specification :
Refer to the actual size specifications
Description

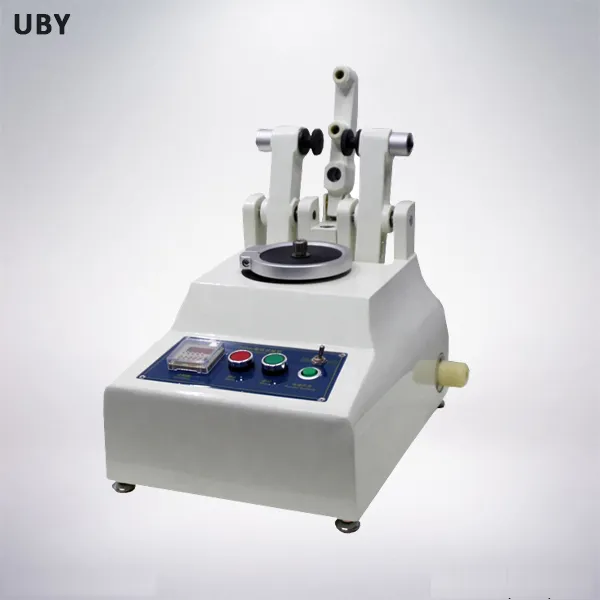

UP-1010 Versatile Multi-material Taber Abrasion Tester
The UP-1010 Taber Abrasion Tester is designed for comprehensive wear resistance testing across various materials including fabrics, coatings, leather, cloth, paint, paper, flooring, plywood, glass, and natural rubber. This precision instrument utilizes standardized cutting blades and regulated grinding wheels with calibrated loading weights to perform accurate abrasion testing.
Applications & Testing Method
This testing machine evaluates surface wear resistance by employing standard cutting blades to prepare specimens, followed by controlled abrasion using regulated grinding wheel models with precise loading weights. After reaching specified rotation cycles, specimens are removed for visual inspection or comparative weight analysis against original materials.
Compliance Standards
DIN-53754, 53799, 53109, 52347 | TAPPI-T476 | ASTM-D1044, D3884 | ISO-5470 | QB/T2726-2005
Technical Specifications
Parameter Specification
Specimen Dimension φ110mm φ6mm
Grinding Wheel φ2″(MAX .45mm) 1/2″(W)
Center Space of Wheel 63.5mm
Distance Between Wheel and Test Plate 37~38mm
Rotating Speed 60rpm
Load Options 250g, 500g, 750g, 1000g
Timer LCD, 0~999999
Distance Between Sample and Dust Collector 3mm
Dimension 53×32×31cm
Weight 18kg (Excluding dust collector)
Power Requirements 1∮, AC220V, 50HZ

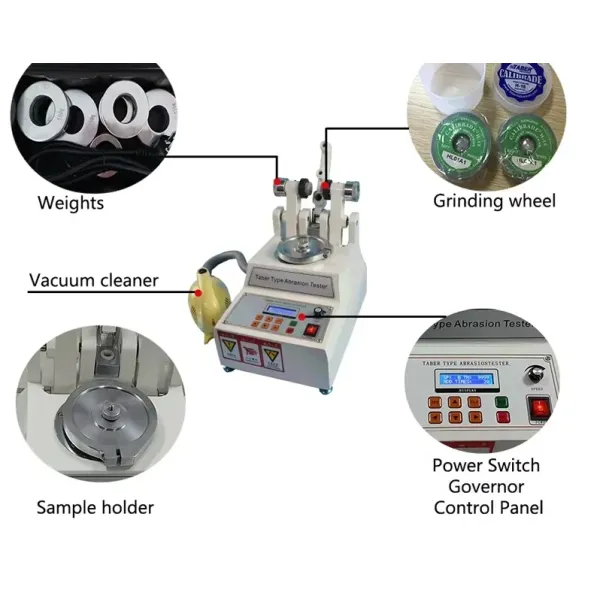

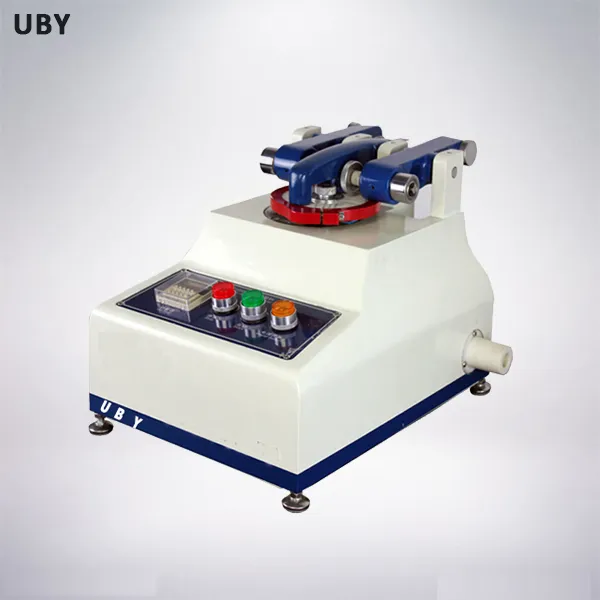

Product Images
Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing Versatile Multi-material Taber Abrasion Tester with 60rpm Rotating Speed for Wear Resistance Testing
Comprehensive Service Support
Consultative Selling Approach
Inquiry & Specification Process
  • Technical requirement analysis and product recommendation
  • Customized solution development with detailed drawings
  • Reference imagery for product visualization
  • Final specification confirmation and pricing
Production & Delivery Process
  • Precision manufacturing per confirmed requirements
  • Production progress documentation with photos
  • Factory calibration or third-party certification available
  • Comprehensive quality testing and secure packaging
  • Timely delivery coordination and tracking
Installation & After-Sales Support
Professional field installation services and comprehensive after-sales technical support.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers, leather/shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. Technical support is available via email or video chat with solutions provided within 24-48 hours.
What is the delivery timeline?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Expedited arrangements available for urgent requirements.
Do you offer customization and branding services?
Yes, we provide both standard and fully customized machines according to specific requirements. OEM and ODM services include custom branding with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and instructional videos. Most machines are shipped fully assembled - simply connect power and begin testing. On-site installation assistance is available when required.
