UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing
UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing
UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing
UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing
Specifications
MOQ :
1 Unit
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-5016
Certification :
CE,ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability :
20 Unit/monty
Delivery Time :
5-10 work days
Packaging Details :
Professional Export Packing
Model NO. :
UP-5016
Service Support :
OEM ODM
Language :
Chinese and English
MOQ :
1 PCS
Applications :
PC, PE, PP, Pet, PPS, PVC, PA, etc.
Specification :
Refer to the actual size specifications
Display screen :
5-inch LCD screen
Heating source :
High-efficiency halogen lamp
Pan size  :
100mm stainless steel
Maximum weighing capacity :
50g~110g
eadability of weighing :
0.001g~0.005g
Readability of moisture content :
0.0001
Description

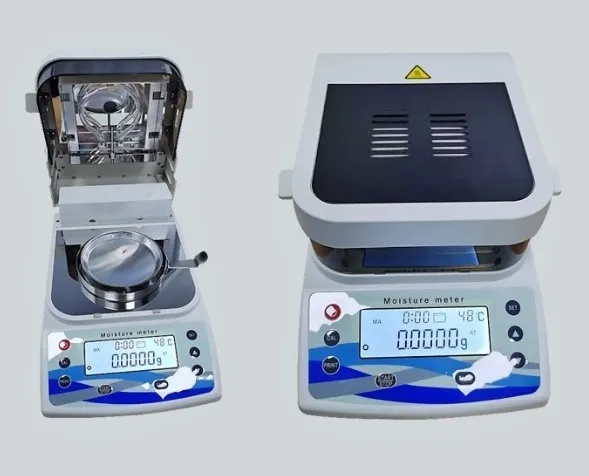

UP-5016 Medical Grain Food Coffee Halogen Moisture Analyzer
The UP-5016 Halogen Moisture Analyzer provides rapid moisture testing for medical, grain, food, and coffee samples in laboratory environments. This advanced instrument combines quick drying with simultaneous weight measurement to deliver precise moisture content results.
Key Features
  • Rapid moisture testing with quick drying capabilities
  • Real-time weight measurement during drying process
  • Halogen heating for maximum power in minimal time
  • Comprehensive data display including moisture value, dry percent, measuring time, and temperature
  • Computer and printer connectivity options
  • Compatible with various plastics including PC, PE, PP, PET, PPS, PVC, and PA
Technical Specifications
Parameter Model 1 Model 2 Model 3 Model 4
Capacity (metric) 45 g 35 g 110 g 110 g
Readability (metric) 0.001 g 0.002 g 0.005 g 0.01 g
Repeatibility (Std. Dev.) 0.05% (3g sample) - 0.015% (10g sample) 0.18% (3g sample) - 0.05% (10g sample) 0.1% / 0.01g 0.3% (3g sample) 0.2% (10g sample)
Moisture Range 0.01% to 100% (0.01% to 1000% for regain mode) 0.05% to 100% 3g to 20g typical, 0.5g min. 3g to 20g typical, 0.5g min.
Interface Bi-directional RS-232 Bi-directional RS-232 Bidirectional RS-232 Bidirectional RS-232
Timer 1 - 120 minutes 1 - 120 minutes 1-99 minutes, 30 second increments to 60 minutes 1 - 99 minutes, 30-second increments to 60 minutes
Heat source Halogen Halogen Halogen Infrared (no glass)
Temperature settings 50° to 200° in 1°C increments 50° to 160° in 5°C increments 50°C to 160°C in 5° increments 50°C to 160°C in 5° increments
Power Requirements 120, 240 VAC 50/60 Hz 120, 240 VAC 50/60 Hz 100 to 240 VAC, 50/60 Hz 100 to 240 VAC, 50/60 Hz
Operating Temperature Range 50° to 104° F / 10° to 40° C 50° to 104° F / 10° to 40° C 41° to 104°F / 5° to 40°C 41° to 104°F / 5° to 40°C
Display 128 x 64 Pixel Graphical Backlit LCD Display 128 x 64 Pixel Graphical Backlit LCD Display Custom backlit LCD Custom backlit LCD
Pan size (Dia.) (in/cm) 3.54 / 90 3.54 / 90 3.5 inch / 90 mm 3.5 inch / 90 mm
Dimensions WxHxD (in/cm) 7.5 x 6 x 14.2
19 x 15.2 x 36		 7.5 x 6 x 14.2
19 x 15.2 x 36		 6.5 x 5 x 11 inches / 17 x 13 x 28 cm 6.5 x 5 x 11 inches / 17 x 13 x 28 cm
Net Wt. (lb/kg) 10.1 / 4.6 10.1 / 4.6 5 lb / 2.3 kg 5 lb / 2.3 kg
Shipping Wt. (lb/kg) 14.1 / 6.4 14.1 / 6.4 8.5 lb / 3.9 kg 8.5 lb / 3.9 kg
UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing UP-5016 High-efficiency Halogen Lamp Moisture Analyzer with 5-inch LCD Screen and 0.001g Readability for Lab Testing
Our Service Commitment
  • Consultation & Quotation: Technical requirement discussions and product recommendations with competitive pricing
  • Customization: Detailed drawings and reference photos for custom specifications and OEM/ODM services
  • Production & Quality Control: Production progress updates, factory calibration, and comprehensive testing
  • Delivery & Support: Timely shipping coordination and professional installation assistance
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. All machines include a 12-month warranty with free maintenance. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer comprehensive customization services including OEM and ODM options. Logo branding is available on all machines.
How can I install and use the machine?
Complete operation manuals and videos in English are provided. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when needed.
