UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
Specifications
MOQ :
1
Price :
Negotiable
Brand Name :
YOUBI
Model Number :
UP-5009
Certification :
CE, ISO
Place of Origin :
CHINA
Payment Terms :
D/P,T/T,Western Union,PAYPAL
Supply Ability :
20 Unit/month
Delivery Time :
5~10 work days
Packaging Details :
Professional export packaging
Model NO. :
UP-5009
Service Support :
OEM ODM
Language :
Chinese and English
Applications :
for Plastic, Rubber, Fiber, Foam, Film, and Film
Control Temperature Range :
Normal Temperature~200ºC
Temperature Control Accuracy :
±0.3ºC
Torque Range :
Mooney Value 0~200
Torque Resolution :
Mooney Value 0.1
Description
UP-5009 High-precision Rubber Mooney Viscometer for Measuring Viscosity and Relaxation of Rubber
Product Overview

The Mooney Viscometer is essential equipment in the rubber industry for measuring viscosity and scorch characteristics of uncured rubber (raw rubber and mixed rubber). It evaluates rubber machining performance by measuring resistance to rotor rotation.

This integrated system serves three purposes simultaneously: Mooney viscosity testing, vulcanization scorch testing, and stress relaxation testing, meeting diverse testing requirements in the rubber industry.

Compliance Standards
  • ASTM-D1646 Mooney viscosity and scorch test standard
  • ISO 289-1 Mooney viscosity
  • ISO 289-2 Pre-vulcanization Characteristics
  • ISO 289-3 Mooney Value Increment
  • ISO 289-4 Stress Relaxation
Technical Specifications
Parameter Specification
Control Temperature Range Normal temperature ~ 200°C
Temperature Display Resolution 0.01°C
Temperature Control Accuracy ±0.3°C
Calibration Accuracy Mooney value ±0.5
Rotor Speed 2 rotation/min ±0.02 rotation/min
Torque Range Mooney value 0~200
Torque Resolution Mooney value 0.1
Print Content Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power 50HZ, ~220V±10%

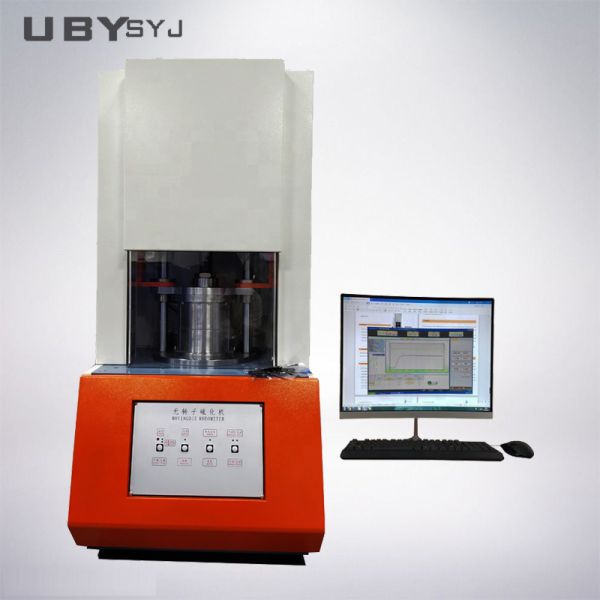

Product Images
UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing UP-5009 High-precise Mooney Viscometer with ±0.3ºC Temperature Control for Multi-functional Rubber Testing
Our Service Process
1. Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

2. Customization Process

We create detailed drawings for custom requirements, provide reference photos for product appearance, and finalize solutions and pricing with customers.

3. Production and Delivery

Machines are manufactured according to confirmed PO requirements. We provide production progress photos, conduct factory or third-party calibration, perform detailed testing, and arrange secure packaging and timely delivery.

4. Installation and After-Sales Support

We provide field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include a 12-month warranty (extended to 14 months considering sea transportation). We provide free maintenance during warranty and offer technical support via email, phone, or video chat with solutions provided within 24-48 hours.

What is the delivery time?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services, including custom branding and logos.

How do I install and operate the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. We offer on-site installation assistance when necessary.
